Slingy that has seen better days.

Posts: 1525 Threads: 127
Loading...

From the last pic without the clamps, it looks like you have a large area of the mahogany ply missing. I guess you could smooth it out with the right type filler and spatula.

Posted on 11 years ago
#21
Loading...

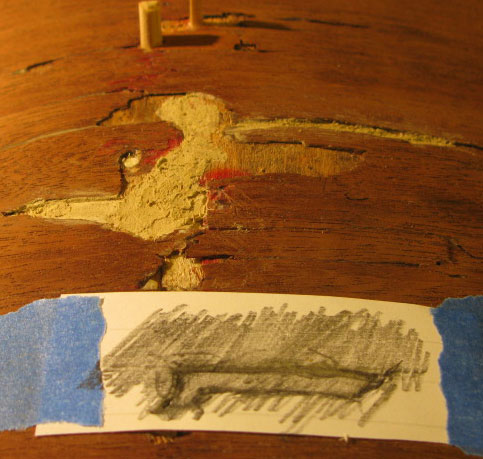

The pics below show the game plan to fix the missing magohony ply pieces. Have some scraps from a 40's table restore that are a good match.

Found a couple more area's that had minor ply lift. Had great luck thinning the glue just a tad and working that into the area best I could and then a shot of low pressure compressed air to force it deep. Repeat and then clamped.

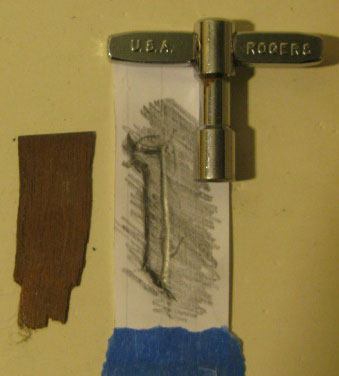

Drum key is for scale. Anyone with a Slingy key and a Rogers kit, let's trade:-)

The red/blue/black layers of paint on the inner shell are coming off easy. Just may be able to save this one.

Creighton

2 attachments
Nothing special here but I like them.
Posted on 11 years ago
#22
Loading...

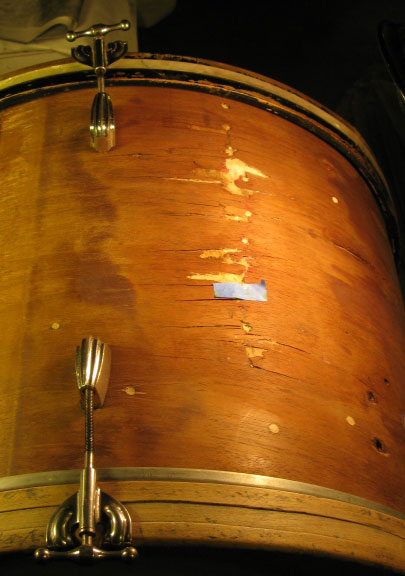

Well still working on it. Very slow go. Took the advice about not being able to get everything solid again and did some pondering.

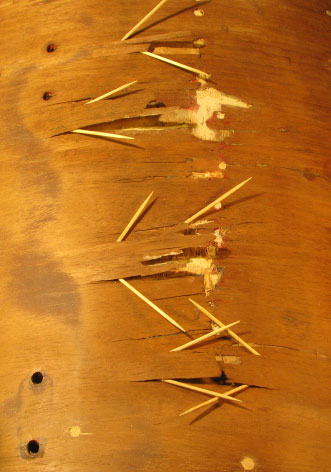

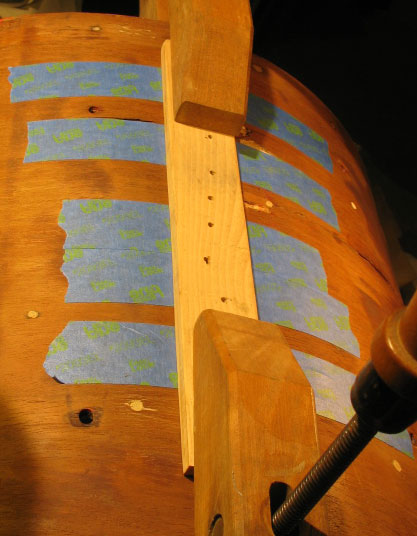

Came up with this as my best attempt at the problem. The toothpicks jam well into the lifted outer layers. Easy to find the point that is still solid. Work plenty of glue in, hit with compressed air until glue is blowing out on all edges. Finger press lifted pieces into place and wipe off the excess glue with warm water. Blue tape, then move on to the next section. Once finished clamp.

Enough verbage here's some pics.

Any suggestions are more than welcome, Thanks!!

Creighton

3 attachments
Nothing special here but I like them.
Posted on 11 years ago
#23
Posts: 5356 Threads: 87
Loading...

Nice job! Great idea on the toothpicks too. This was a tough one to fix but it's lookin mighty fine again!

Glenn.

Not a guru just havin fun with some old dusty drums.
Posted on 11 years ago
#24
Loading...

Thanks! Not there yet but making progress.

Creighton

Nothing special here but I like them.
Posted on 11 years ago
#25
Loading...

You are to be commended for your patience...good job. I like your idea of using compressed air to blow the glue deeper into the plys!

Gary G.
1963 Ludwig Gold Sparkle Hollywood Kit
Ludwig Collection: 10 Vintage Snare Drums, 4 Customized Vintage Snare Drums, 4 Vintage Foot Pedals, 1 Single Value Bugle
Posted on 11 years ago
#26
Posts: 3467 Threads: 116
Loading...

From GG Vintage

You are to be commended for your patience...good job. I like your idea of using compressed air to blow the glue deeper into the plys!

My sentiments too, no rushing with this one, seems like you are doing everything that you can.. great labour of love..

Cheers

'77 Slingerland 51N,Super Rock 24,18,14,13.. COW 8,10 Concert toms
'69 Slingerland Hollywood Ace
'75 Rogers Dynasonic 6.5 x 14, 10 lug COB
'77-78 Slingerland 6.5 x 14, 10 lug COB
'78-79 Slingerland 5 1/4 x14 8 lug COB
'79 Biman 5 1/4, Acrolite
'82 Slingerland 5 1/4 x 14. Festival COS
'84 Tama MasterCraft Superstar 6.5 x 14, 10 lug Rosewood
'98 Slingerland (Music YO) 6" 10 Lug Maple.. NOS
Zildjian, Sabian , UFIP & Paiste mix.
Posted on 11 years ago
#27
Posts: 6524 Threads: 37
Loading...

Maybe a piece of a doner shell to use as a clamping brace over the tape next time instead of straight stock !i

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 11 years ago
#28
Loading...

It is a labor of love. Nothing better than the satisfaction of mending something so that it can return to it's former glory.

Per the clamping sticks I used a China Freight table top belt sander to fab convex/concave clamp bucks. Was a bit of lost fingertip skin on that project :-)

Creighton

Nothing special here but I like them.
Posted on 11 years ago
#29
Posts: 6524 Threads: 37
Loading...

It doesn`t look wide enough !i Don`t they have gloves in WA ?

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 11 years ago
