Slingerland Radio King WMP project kit........

Loading...

Very cool thread. Looking forward to seeing the final product.

Cheers

Curtis

Posted on 12 years ago
#101
Posts: 5356 Threads: 87
Loading...

Thanks Curtis!

Glenn.

Not a guru just havin fun with some old dusty drums.
Posted on 12 years ago
#102
Posts: 5356 Threads: 87
Loading...

It's been a while so thought I'd update things a bit. Things have not gone according to plan but not much I can do. I was able to order the hoop clips and T rods I needed. I got a few extras of each. I was going to use the nickle plated hoop clips but DrumFactoryDirect didn't have enough. I thought maybe brass but not enough of those either. Seeing how these are keeping me from playing them I went with the chrome. They will look a little odd perhaps but can deal with those later when DFD is restocked on nickle ones. I borrowed the stick saver hoops from my 60's kit to mock up the 13 and 16 with the new Evans heads I bought. The 13" sounds great with sustain for days. Very fat tuned low too I dig it. The 16" not so much but hopefully better now. The batter side is fine and in round. The reso side was a little out (which I knew) when I bought. There's a 1/16" lowspot in the bearing edge little over 1" long. Sort of C shaped edge to edge. I wanted to get some wood in there before the filler but we decided just some nitro based filler would be the better way to go. Easy to shape and follow the edge contour of the bearing edge. Repair wasn't very deep. It can be easily removed should I want a do over. I'll see how it works. I still have 2 areas about 1/8" out of round each. Not great but not terrible either and head goes on pretty easy.

22" Bass drum is done and sports a clear EQ3 batter side and the original RK calf on the reso. Some say using 1 plastic and 1 calf makes the drum sound strange. Seems fine tuned low, nice and deep. It's so weird this bass only has 6 lugs per side. Wish it had more it would help tuning.

13" tom still needs a diamond plate mount and I need to buy wrap and glue. That'll be a while off still.

Snare.... 50's RK.. I still need the throwoff side clamshell. But did a little shadetree fix and have the new PS extended wires on it. It came with a Premier cast hoop on the batter. I have some old RK parts and put a engraved NOB stick chopper hoop on it for now. Till I can find the NOB sticksaver it should have. Clamshell strainer parts are next to impossible to find!!

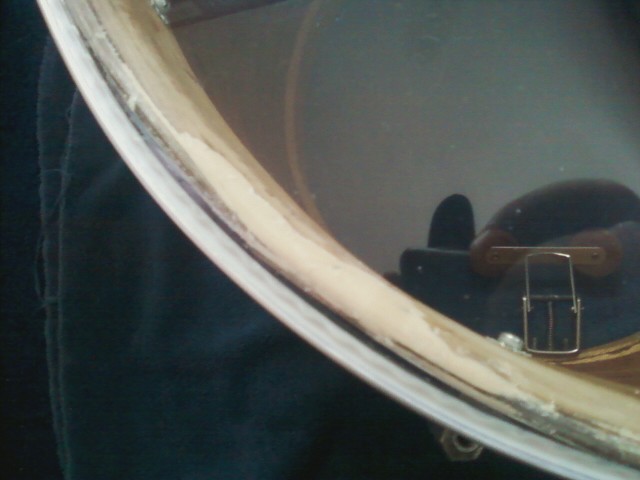

I'll get more pics of everything later here's one of the floor tom edge filled with a clear head on it. Stay tuned more to come!!

1 attachments
Glenn.

Not a guru just havin fun with some old dusty drums.
Posted on 12 years ago
#103
Loading...

From FFR428

Seeing how my search for the original floor tom legs mounts isn't going so well I decided to make my own. I have some pics of originals and took some measurements off the floor tom shell's witness marks. This gave me a pretty good idea to the size, shape and thickness they used. Some nice 1"x 1/8" wide flat bar stock from Home Depot, a torch, assorted hammers, anvil, vise, bench grinder and drill press and we'll have a go at it. Seems the original was 3/16" think which they did have so I might switch to that if the 1/8" is too flimsy. I think it'll be fine. I used to have a good friend with a full machine shop but with the economy in the crapper he closed up a few years ago. His shop would have made this a lot easier. I made a drawing and quick template out of aluminum for aprox size and fit. Looks good. Soon as we get some clear weather here this week I'll start them and show the progress. I still need to get some eye bolts and wingnuts to hold the legs in the brackets. I'll go to the HD again tonight and see what they have. The originals have a unique shape to them which i'll try to duplicate out of the eye bolts hopefully. We'll see how this goes. I plan to use later style angled legs so I made the bracket come out a little more to give a tad more room for the holes. Here's the drawing and aluminum template...........

Love it! looks like something I would do!

Jeff C


Thank you!
Jeff C

"Enjoy every sandwich" Warren Zevon
Posted on 12 years ago
#104
Loading...

Im not sure how I missed this thread. You have a very interesting project going on and your doing a great job with it. It has been very usefull for me as my clamshell strainer is bent also. Keep up the good work!

Jeff C


Thank you!
Jeff C

"Enjoy every sandwich" Warren Zevon
Posted on 12 years ago
#105
Posts: 5356 Threads: 87
Loading...

Thanks Jeff there are pretty good gaps between my posts sometimes. And this get shuffled back a few pages. Busy place it is here~! It's been slow progress due to some hard to find parts and the cash to buy them. But it's getting there thanks.

Glenn.

Not a guru just havin fun with some old dusty drums.
Posted on 12 years ago
#106
Posts: 5356 Threads: 87
Loading...

I spent some time thinking (dangerous I know!) about the missing throwoff side of the clamshell strainer I need for my 50's Radio King snare. Looking at the Clamshell strainer section here it shows the War time 42-43 Rolling Bomber using a rosewood and metal CS strainer. I'm going to fab up something like it.

http://www.vintagedrumguide.com/drcjw/article_5_strainers_clam_shell-4.html

I have the tension side of the CS on my snare to measure off of. My plan is to make a metal base and wood body. I'll call Jim Petty for the other parts I'll need. Repop handles are available from Emory @ Drumatix.com. If I'm thinking right I should be able to make something workable until I can find a actual CS strainer down the road. I'm sure my son has a nice scrap of wood I can use for the body. For the steel bracket I'm using a electrical outlet cover plate for material. And have the tension side bracket and body to measure from.This would be fairly easy to do and only cost is the parts from Jim and Emory. Handles are available but I'll need to check with Jim if his parts are in stock tomorrow. I "think" both the throw and tension side of the CS body and bracket are the same. With only the hardware different for each side. I made a mockup bracket out of thin sheet aluminum and it's a perfect match.

Trying to find one of these strainers has been next to impossible. So until I can round one up this should work ok in the meantime. I'll get some pics once I have some things figured out better. We'll see how it goes!!

Glenn.

Not a guru just havin fun with some old dusty drums.
Posted on 12 years ago
#107
Posts: 5356 Threads: 87
Loading...

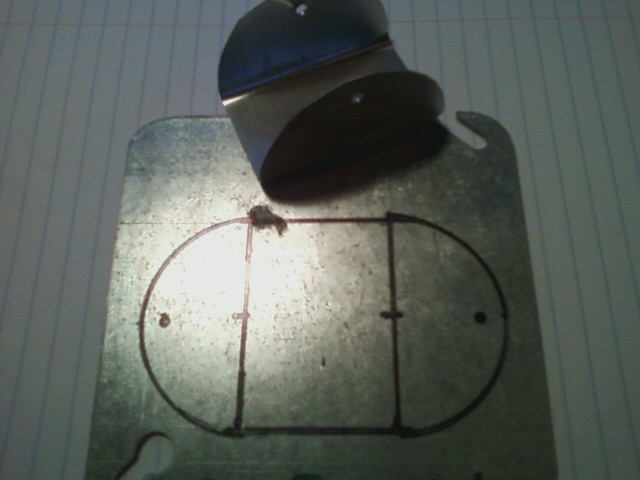

Here's a rough mockup on the steel plate and the aluminum one I made up quickly. These are exact measurements per the one I have here and should work ok. This is the bracket that holds the body. Just to give the idea I'm trying to express.

1 attachments
Glenn.

Not a guru just havin fun with some old dusty drums.
Posted on 12 years ago
#108
Loading...

Looks like the template to the Cobra Aircleaner..who ya trying to fool ? :) hey Bud !

Old #4 Wash Tub
A nice pair of Hick Sticks
Posted on 12 years ago
#109
Posts: 5356 Threads: 87
Loading...

From RapidRuss

Looks like the template to the Cobra Aircleaner..who ya trying to fool ? :) hey Bud !

Ha! LoLoLoLo Was wondering when you'd track me down here!!! Yep it would be a mini aircleaner this size.

Glenn.

Not a guru just havin fun with some old dusty drums.
Posted on 12 years ago
