Star Butt Plate (Strainer?)

Posts: 2241 Threads: 380

Is anyone familiar with this "different" Star butt plate. I'll describe it since I cant take pictures. It is from a vintage round badge, chrome Star snare. Probably late sixties to early seventies. The plate is attached to the shell by two vertical holes about 7/8 inches apart. The actual snare plastic ribbon attaches to the lower part of the plate in the conventional manner with two screws. This lower plate slides onto an upper. Both are connected with a screw on the mounts. A wheel through which the screw is threaded serves to turn it to loosen or tighten the wires. Also on the screw, there is a bolt that can also be adjusted. To be honest, I can't determine why it is there. This is almost like having a double strainer. The snare is equipped with a typical Star strainer of the ere. I know this is a difficult question to answer with no pictures but, I I know some of you guys are true experts!. I have searched but, to no avail. Oh! I have an identical Star snare with just a conventional butt plate. Thanks very much, guys!

Brian

Just a drummer who loves all things about vintage drums! Nothing more, nothing less.
Posted on 6 years ago
#1
Posts: 6363 Threads: 223

Hi Brian,

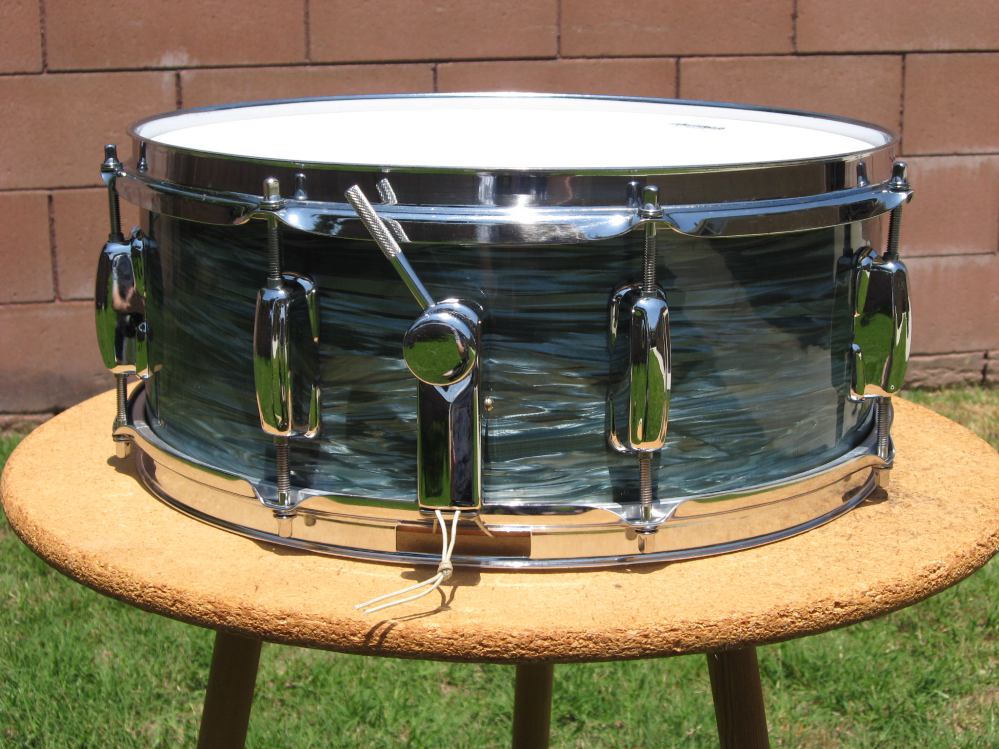

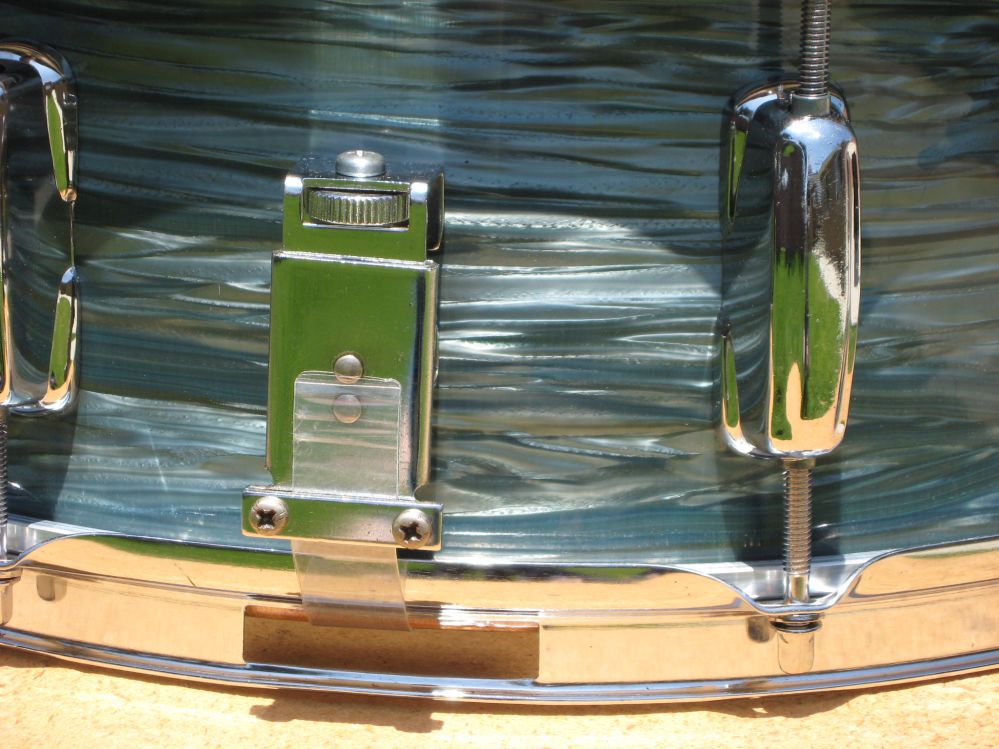

I've attached pictures of my Majestic snare drum that has the butt I believe you are referring to. I hope this is the one! If you look closely at the adjusting wheel in the butt, you can see a "jam nut". That nut tightens against the knurled wheel, so that when you turn the wheel, the long bolt turns with it. Make sense? You also need to adjust the nut and wheel so there is space between the top of the wheel and the housing, allowing for smooth turning of the wheel. Hope this helps!

-Mark

3 attachments
88.4 kB
128.2 kB
123.9 kB
Posted on 6 years ago
#2
Posts: 2241 Threads: 380

Mark!

Thank you so very much! You are amazing! With you pictures, I can now understand the function of the nut as well! Unbelievable! Thanks again. I am really indebted!

Brian

Just a drummer who loves all things about vintage drums! Nothing more, nothing less.
Posted on 6 years ago
#3
Posts: 6363 Threads: 223

Brian!

Can't believe I already had those pictures...and glad they helped you out!

-Mark

Posted on 6 years ago
#4
Posts: 2241 Threads: 380

Hi, Mark!

Thanks to your great pictures and description, I was able to get this old contraption running quite smoothly! The only thing I had to change was the jam nut itself. I don't believe it was original because it was too big thus rubbing against the plate and preventing the wheel from turning. I found an old MIJ lug insert in my stash and used that. Lots of clearance and the wheel turns perfectly! Not a bad idea for its time. Thanks again, Mark! I really appreciate the lesson.

Brian

Just a drummer who loves all things about vintage drums! Nothing more, nothing less.
Posted on 6 years ago
#5
Posts: 6363 Threads: 223

From salty 1322

Hi, Mark! Thanks to your great pictures and description, I was able to get this old contraption running quite smoothly! The only thing I had to change was the jam nut itself. I don't believe it was original because it was too big thus rubbing against the plate and preventing the wheel from turning. I found an old MIJ lug insert in my stash and used that. Lots of clearance and the wheel turns perfectly! Not a bad idea for its time. Thanks again, Mark! I really appreciate the lesson. Brian

Brian!

A great idea using a lug insert! Definitely won't interfere with turning and you won't see it anyway. Well done!

-Mark

Posted on 6 years ago
#6
Posts: 2241 Threads: 380

Thanks, amigo! The old snare doesn't sound too bad! I threw some Puresound wires on it and it has a pretty good crack. Thank you, Mark!

Brian

Just a drummer who loves all things about vintage drums! Nothing more, nothing less.
Posted on 6 years ago
#7
Posts: 322 Threads: 19

My COS Star snare has one of those butt plates, works well.

Cheers.

1 attachments
90 kB
Posted on 6 years ago
#8
Posts: 2241 Threads: 380

From Trilok_Gurtu

My COS Star snare has one of those butt plates, works well.Cheers.

Yep, that's the one alright! I'm beginning to become a fan. It's a great gizmo for fine tuning! Thanks for posting, sir.

Brian

Just a drummer who loves all things about vintage drums! Nothing more, nothing less.
Posted on 6 years ago
#9
Posts: 948 Threads: 48

Same set up on this Lido Supreme snare salty

In fact, I had to steal the lower half with the pinch bar

from a no badge, but otherwise complete, red sparkle snare drum that I have over here

So now I have an eye out for another to replace the one I stole.

I am currently working on a Star made blue oyster snare

same strainer and butt end on it as well.

Posted on 6 years ago
