Clip on bass drum spurs

Posts: 584 Threads: 189

This is not actually restoring, but my attempt to make clip on bass drum spurs

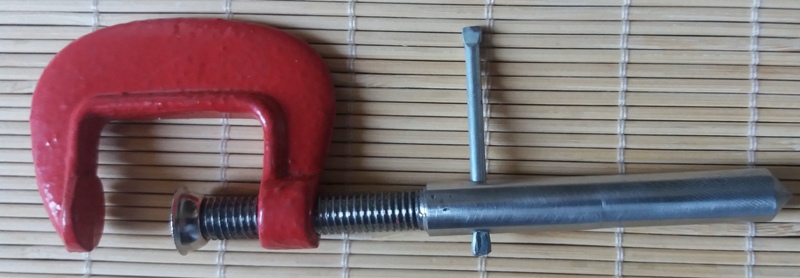

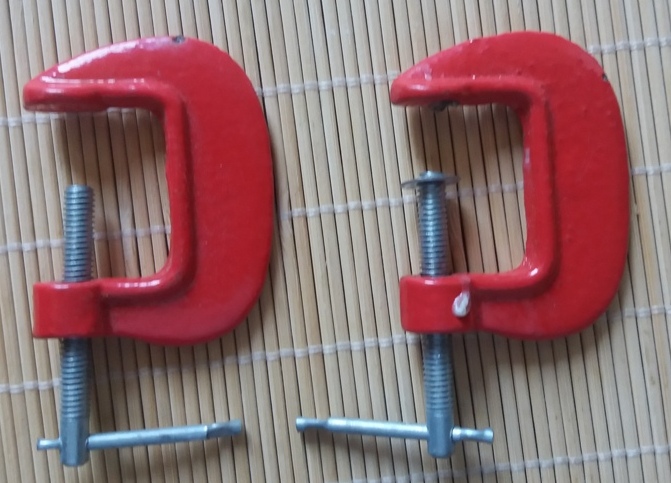

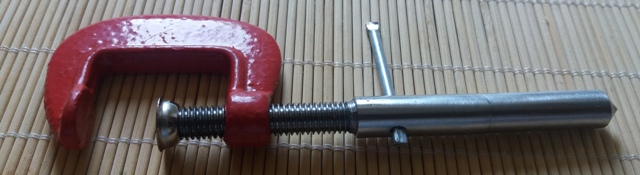

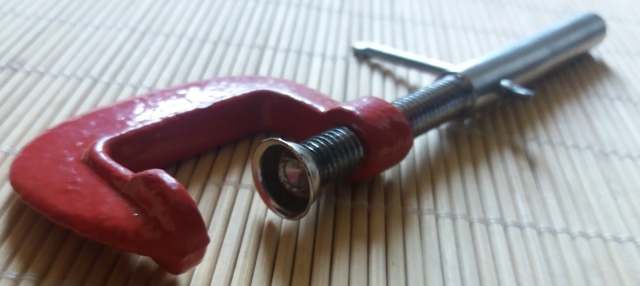

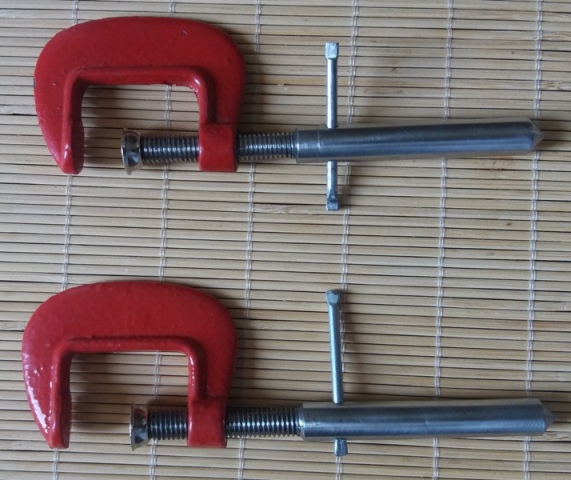

I took 2 clamps, cut original screw, than made on lathe machine new ones with 8 mm thread. Than I took two washers from some old metal snare lug mount and put them on

So here they are!

5 attachments
Clip 1.jpg
130.7 kB
Clip 2.jpg
121.1 kB
Clip 3.jpg
89.1 kB
Clip 4.jpg
65.7 kB
Clip 5.jpg
59 kB
Selling cymbals Made in Turkey

http://turkishcymbalserbia.weebly.com/
Posted on 8 years ago
#1
Posts: 1867 Threads: 179

Very crafty sir.

Please, Lets see them on the hoops.

BLAEMIRE DRUMS
Thanks to Mr. Jerry Jenkins
Posted on 8 years ago
#2
Posts: 9005 Threads: 266

'Old-school,' ingenious!

John

Too many great drums to list here!

http://www.walbergandauge.com/VintageVenue.htm
Posted on 8 years ago
#3
Posts: 584 Threads: 189

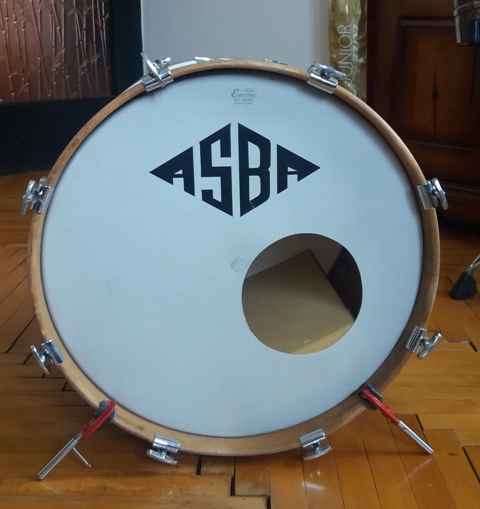

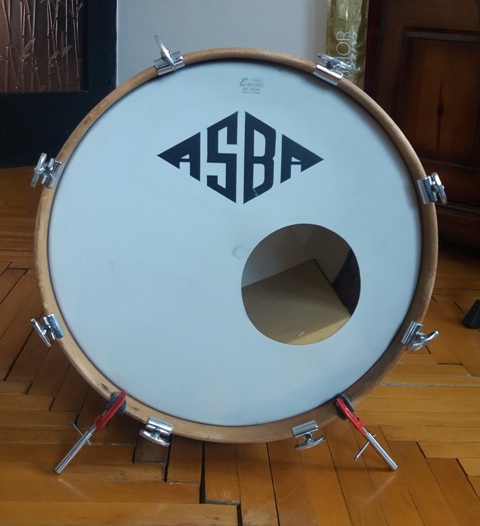

Here are pics of spurs attached on 18" Asba bass drum

Far and closer to 2 bottom bass drum lugs

2 attachments
CLIP 11.jpg
84.3 kB
CLIP 44.jpg
85.5 kB
Selling cymbals Made in Turkey

http://turkishcymbalserbia.weebly.com/
Posted on 8 years ago
#4
Posts: 545 Threads: 67

Wow! Thanx for sharing this brilliant idea!

Vintage and custom drum projects:
https://www.facebook.com/profile.php...2305272732%3A6
Posted on 8 years ago
#5
Posts: 9005 Threads: 266

You need to add some small round rubber pads on the clamp and tension arm to preserve your rim!

John

Too many great drums to list here!

http://www.walbergandauge.com/VintageVenue.htm
Posted on 8 years ago
#6
Posts: 584 Threads: 189

Yes Purdie I will

For now I put felt of 10 mm (3/8") thicness...

Selling cymbals Made in Turkey

http://turkishcymbalserbia.weebly.com/
Posted on 8 years ago
#7
Posts: 473 Threads: 64

When I look at the pictures I think that maybe two cowbell mounts would do the job. I don't know if any of you already did that... It would be perfect with rubber feet placed on the tip of the clamps.

[IMG]http://shop.musix.ch/images/products/orig/Latin-Percussion-LP338-Bass-Drum-Cowbell-Mounting-Bracket.jpg[/IMG]

Posted on 8 years ago
#8
Posts: 219 Threads: 1

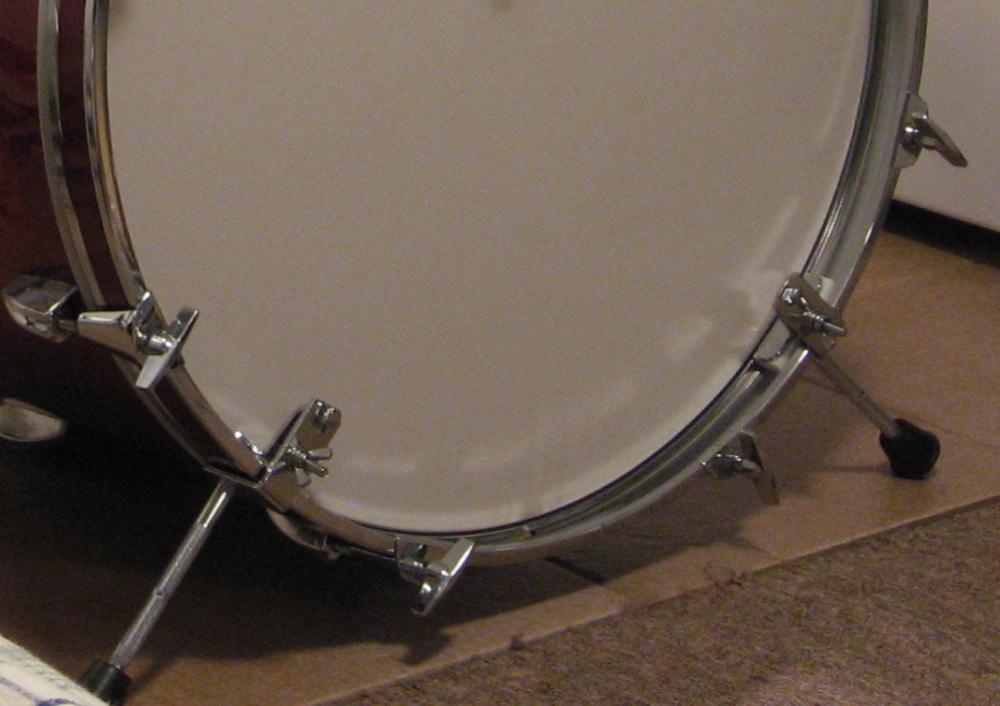

... only problem is setup/breakdown is a bit of a pain...

1 attachments
cowbell spurs.jpg
64.5 kB
Posted on 8 years ago
#9
Posts: 1296 Threads: 208

[QUOTE=JohnBonham;390280]When I look at the pictures I think that maybe two cowbell mounts would do the job. I don't know if any of you already did that... It would be perfect with rubber feet placed on the tip of the clamps.

I've done it myself, works great!

Never play it the same way once.
