pretty sure those are closer to a "double 60" than 45
63 Rootbeer Swirl Yamahas
Yeah, I can't cut that one either. Strictly double 45 here. BTW what is that tool, it seems useful. Where can I get one like that?
https://www.GeorgiaPhil.com
Drum Wrap, Drum Heads, Drum Accessories
https://www.StuffForDrummers.com
I guess I'll be the one to say it - it would be better (wiser) to buy more bits than to buy that tool you are inquiring about. Bits are as low as $6 each, shipped.
2Timothy1:7
Its not a bit problem, my router is permanently attached to the table, I'd have to destroy the table to change the bit. So I'm stuck with double 45 until the bit wears out. Then I'll have to get both a table and a bit.
https://www.GeorgiaPhil.com
Drum Wrap, Drum Heads, Drum Accessories
https://www.StuffForDrummers.com
Oh - well that's simple - yer just gonna have to hold that there shell at about a 15 degree angle (or somethin like dat)!
If you can ever get your hands on a router (handheld - no table) which would allow for other bits - check this out - grabbed this off of DFO (if I recall correctly):
Yo.
I have cut many bearing edges with a cheap and simple set up. They all turned out perfectly, so my advice may be useful to you. It's really easy:
1)Fit a 45 degree bearing-guided router cutter into any router.
2)Get a square of plywood bigger than your drum and cut a hole about 70mm in diameter in the centre of the piece of wood (so you can see clearly what you are doing).
3) Either glue or bolt this board into the base plate of your router.
4)Put your drum shell on a table. Rest the router and its board on top.
5)Turn it on.
6) You won't be able to cut anything but perfect 45 degree bearing edges!
If any of this sounds unclear, I expect when you are about to start working you'll see how straight forward it is. As the bearing guided router cutter will always follow the shape of the drum, the only bit you need to do correctly is adjust the depth of cut. The easy way to do this is to allow the router cutter to pertrude less than you will probably need, and experiment with the depth until you find a lovely sharp bearing edge being created. I use a little bit of fine sand paper to smooth and dress the finished edge, a little bit of wax polish will help the drum head to seat accurately when you first tighten it down.
Have fun and don't be nervous!
I am actually quite impatient and sloppy in my work, but I still got a really really good result!
2Timothy1:7
Im not sure what a bearing guided router cutter is, I just use a 45 degree blade, actually I think it's 90 degrees, but you get a 45 degree cut. Anyway, after some experimentation and a few ruined cheapy drums, I now have it adjusted to where I get a beautiful 45 degree cut of just the perfect size. I'm very happy with it, and loathe to change it. This setting is too hard won to mess around with.
https://www.GeorgiaPhil.com
Drum Wrap, Drum Heads, Drum Accessories
https://www.StuffForDrummers.com
Yeah, I can't cut that one either. Strictly double 45 here. BTW what is that tool, it seems useful. Where can I get one like that?

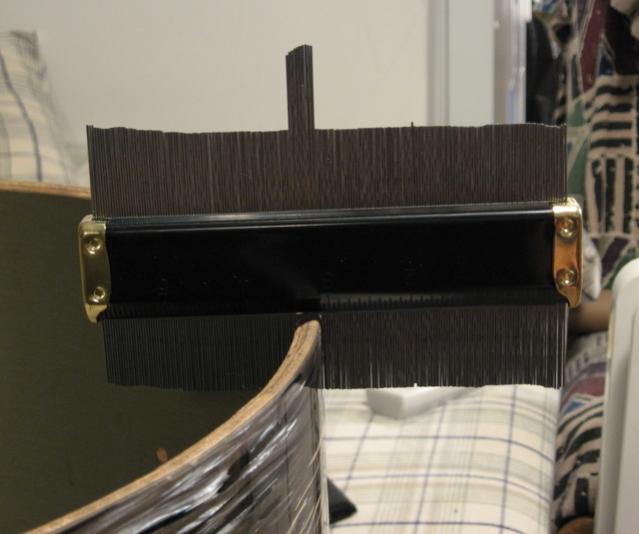

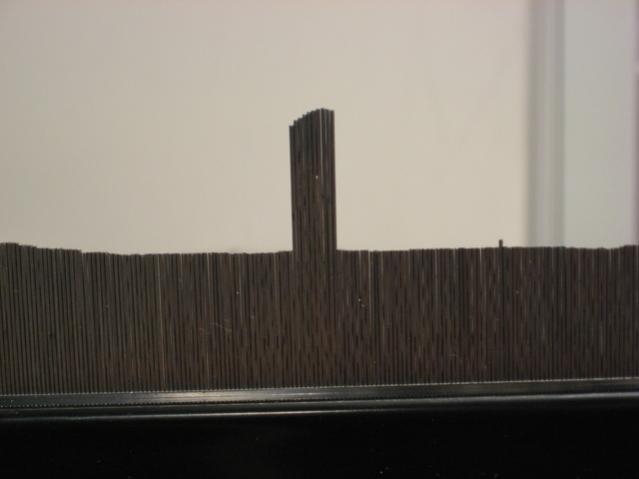

its a profile gauge... the better ones have more pins and are made of metal, but that one was about $18 Cdn
usually found at most hardware stores, or any Lee Valley
have you seen the bearing edge in question yet? Being the reso side of the BD you might get away without touching it
https://www.GeorgiaPhil.com
Drum Wrap, Drum Heads, Drum Accessories
https://www.StuffForDrummers.com
Great drum kit! I have a Yamaha kit in the same finish. Mine is a 5 piece with the chrome metal snare with it instead of the matching wood snare. If you ever decide to sell the snare, let me know.
