Sonor Teardrop Spur Mount

Posts: 43 Threads: 7

Does anyone know the thread on a early 60's Teardrop kit bass drum spur mount wing bolt?...like the one shown here.

1 attachments
sonor spur mount.jpg
83.6 kB
Posted on 5 years ago
#1
Posts: 6524 Threads: 37

That's not a teardrop BD spur mount. To be honest, I don't even know what that is.

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 5 years ago
#2
Posts: 417 Threads: 22

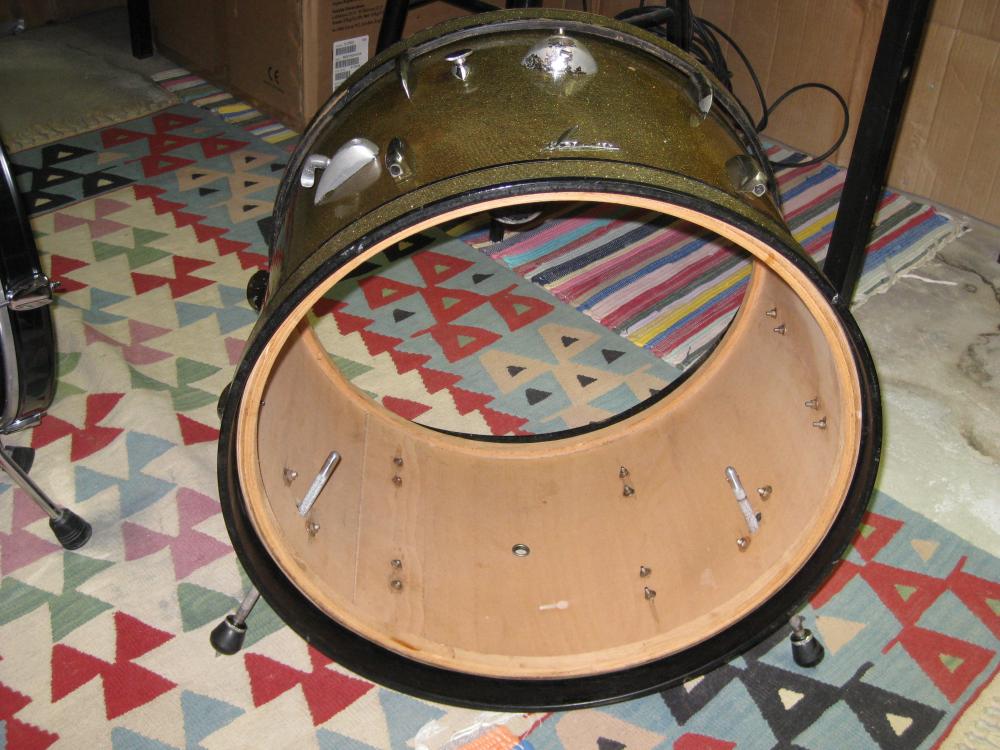

That is a cymbal and/or spur mount from an early teardrop bass drum, like mine from 1958. The wing bolt is not original, though. The mount is the same as the cymbal mount on the attached pics of my bass drum. Unfortunately, I can't find any pics of the spur mounts, but they are the same.

I don't know what the thread is, but the original bolt is L-shaped, as on my bass drum.

/Magnus

2 attachments
110.2 kB
126.7 kB
Posted on 5 years ago
#3
Posts: 43 Threads: 7

From Magnus_N

That is a cymbal and/or spur mount from an early teardrop bass drum, like mine from 1958. The wing bolt is not original, though. The mount is the same as the cymbal mount on the attached pics of my bass drum. Unfortunately, I can't find any pics of the spur mounts, but they are the same.I don't know what the thread is, but the original bolt is L-shaped, as on my bass drum./Magnus

Yes, it is def the correct spur mount,and you may be right on the wingbolt. The spur and cymbal mounts are identical to each other. Yours is a little earlier than mine. Based on the nameplates, I believe mine are '64-'65.

Posted on 5 years ago
#4
Posts: 43 Threads: 7

Did some sniffing around and concluded this is a '65 kit and according to the catalog descriptions the plastic wing bolt is original. Mine happens to be rusted into the mount. Was assuming I may have to destroy the wing bolt in order to get it out, hence wondering the thread so I could maybe find an alternative modern replacement.

Posted on 5 years ago
#5
Posts: 6524 Threads: 37

I was hoping Magnus would answer that. I never saw that before. Too early for me.

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 5 years ago
#6
Posts: 6524 Threads: 37

Maybe spray it with PB blaster and let it soak overnight. All SONOR bolts are hardened so let it work. It's a small tap so the threads don't have a huge bite.

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 5 years ago
#7
Posts: 417 Threads: 22

From OddBall

I was hoping Magnus would answer that. I never saw that before. Too early for me.

Yeah, these very early teardrops don't pop up very often. I was lucky to get my hands on one - and the same age as myself, funnily enough!

/Magnus

Posted on 5 years ago
#8
Posts: 417 Threads: 22

From Robzilla

Did some sniffing around and concluded this is a '65 kit and according to the catalog descriptions the plastic wing bolt is original. ...

My bad about the bolt. My kit is quite a bit older than yours, so obviously the design changed in the interim.

I agree with Oddball that you should try soaking the whole assembly in some solvent before dismissing the bolt. It should be saveable.

Perhaps a Fairy liquid solution might work?

/Magnus

Posted on 5 years ago
#9
Posts: 43 Threads: 7

I sprayed it with some WD-40 last night. Fairy liquid?

Posted on 5 years ago
