Rogers Luxor Champagne Sparkle

Posts: 6363 Threads: 223

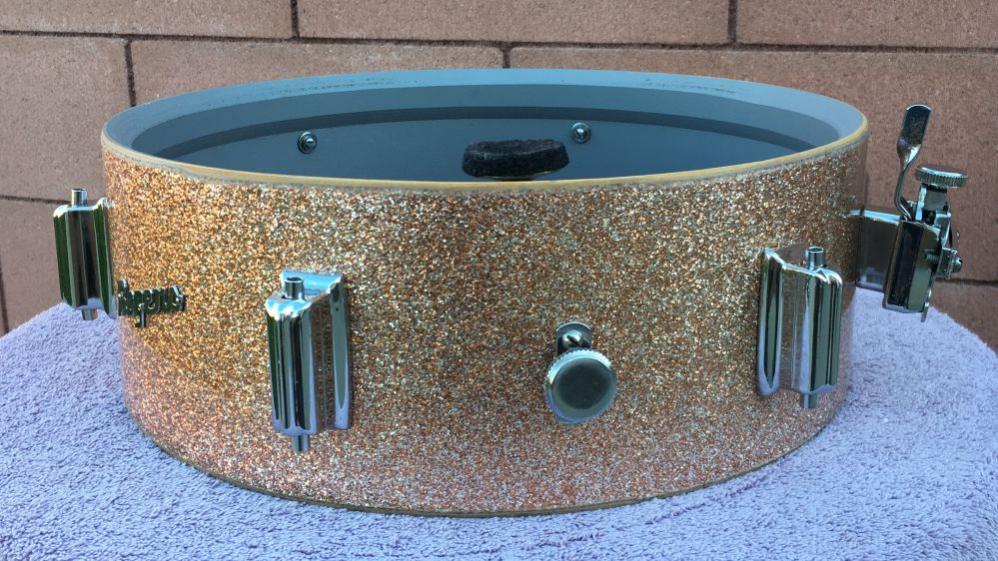

I recently acquired a very nice Rogers Luxor snare drum shell, wrapped in original Champagne Sparkle. I have the same drum, but with a faded Silver Sparkle wrap, in my collection. I'm transferring all the parts to the new shell. This was also a good time to finally clean and polish all the parts.

The Bantam strainer showed absolutely no signs of internal wear! It has been fully cleaned and re-greased for excellent operation. I also removed the springs and lug inserts from the lugs. All parts were soaked in Dawn overnight and looked pretty clean the next day.

I decided to use a small soft wire metal brush in my hand drill to remove the years of rust and corrosion from the lug attaching hardware. They look great!

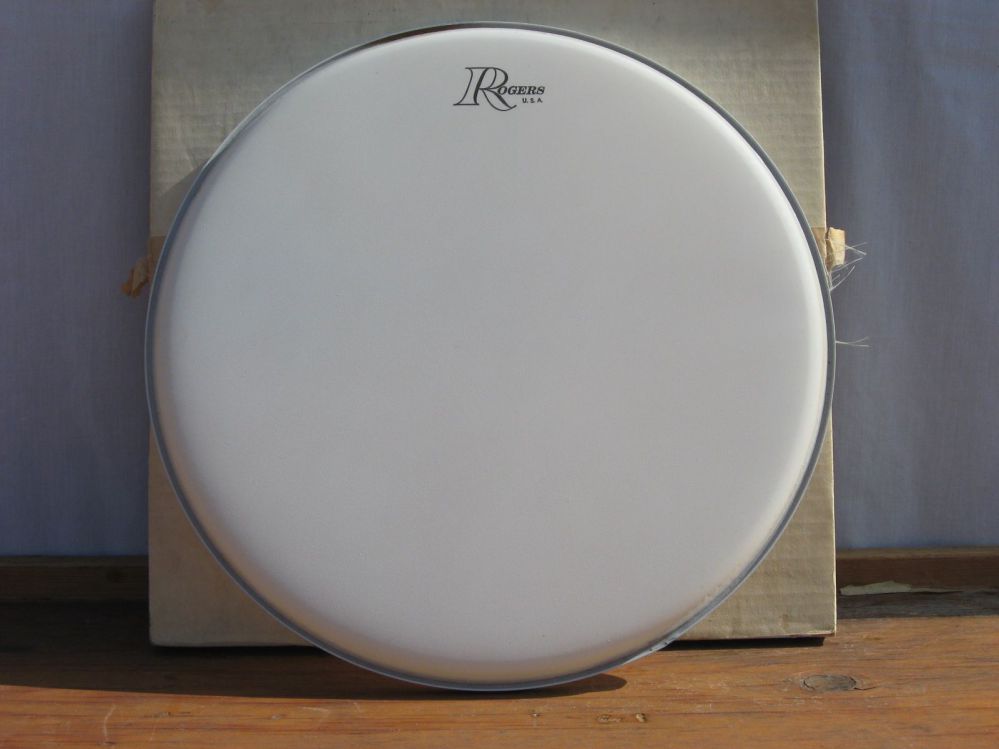

I have the original Rogers snare-side head. It does have a very small tear, but doesn't cause any issues. Since this drum will be for display only, I've decided to install my Rogers NOS coated Ambassador head.

I'll complete the drum later today and post more pictures!

-Mark

5 attachments
55 kB
141.3 kB
137.6 kB
127.2 kB
120.4 kB
Posted on 5 years ago
#1
Posts: 5295 Threads: 226

Very nice, Mark!! Your gear is always top notch!!

Cheers

1976 Ludwig Mach 4 Thermogloss 26-18-14-14sn
1978 Ludwig Stainless 22-22-18-16-14-13-12 c/w 6-8-10-12-13-14-15-16-18-20-22-24 concert toms
1975 Sonor Phonic Centennials Metallic Pewter 22-16-13-12-14sn (D506)
1971 Ludwig Classic Bowling Ball OBP 22-16-14-13
1960's Stewart Peacock Pearl 20-16-12-14sn
1980`s Ludwig Coliseum Piano Black 8x14 snare
1973 Rogers Superten 5x14 & 6.5x14 COS snares
1970`s John Grey Capri Aquamarine Sparkle 5x14 snare
1941 Ludwig & Ludwig Super 8x14 snare
Posted on 5 years ago
#2
Posts: 6363 Threads: 223

From grantro

Very nice, Mark!! Your gear is always top notch!!Cheers

Thanks...greatly appreciated!

-Mark

Posted on 5 years ago
#3
Posts: 375 Threads: 36

Very nice work on the drum. Can you share what kind of grease you use?

Thanks

Posted on 5 years ago
#4
Posts: 6363 Threads: 223

From jimorlando

Very nice work on the drum. Can you share what kind of grease you use?Thanks

Hi Jim!

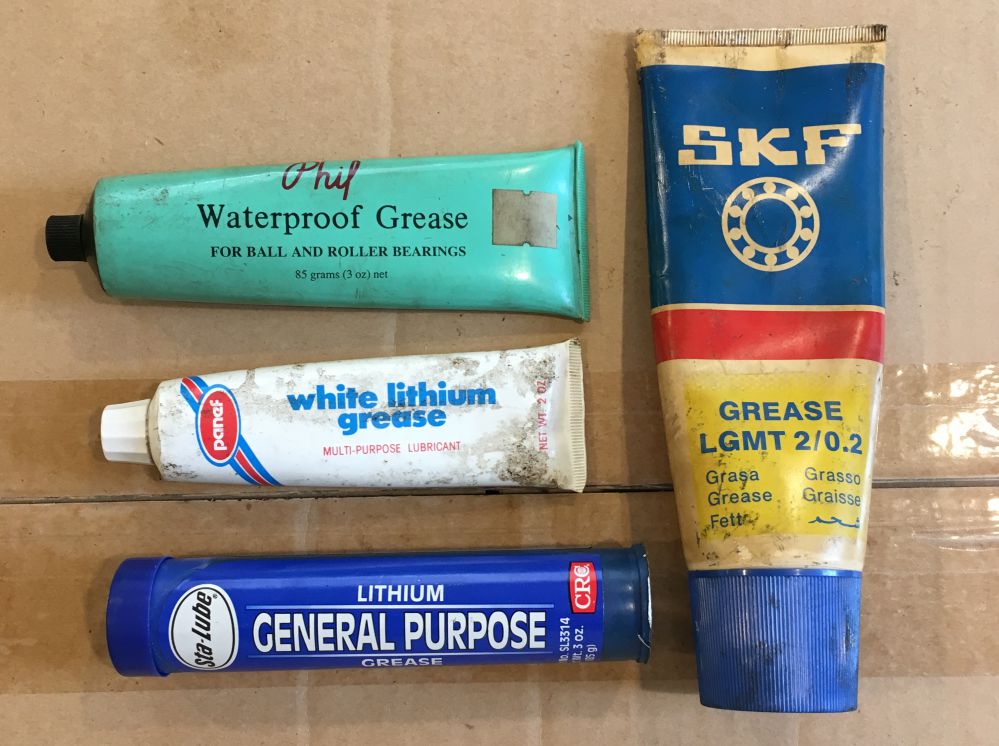

Here's a picture of the greases I normally will use. For the Bantam strainer, I went with the "waterproof" grease. It's a bluish-green grease. I applied a thin coating, with a Q-tip, to all the places subjected to metal-to-metal contact. Worked really well.

-Mark

1 attachments
128.8 kB
Posted on 5 years ago
#5
Posts: 6363 Threads: 223

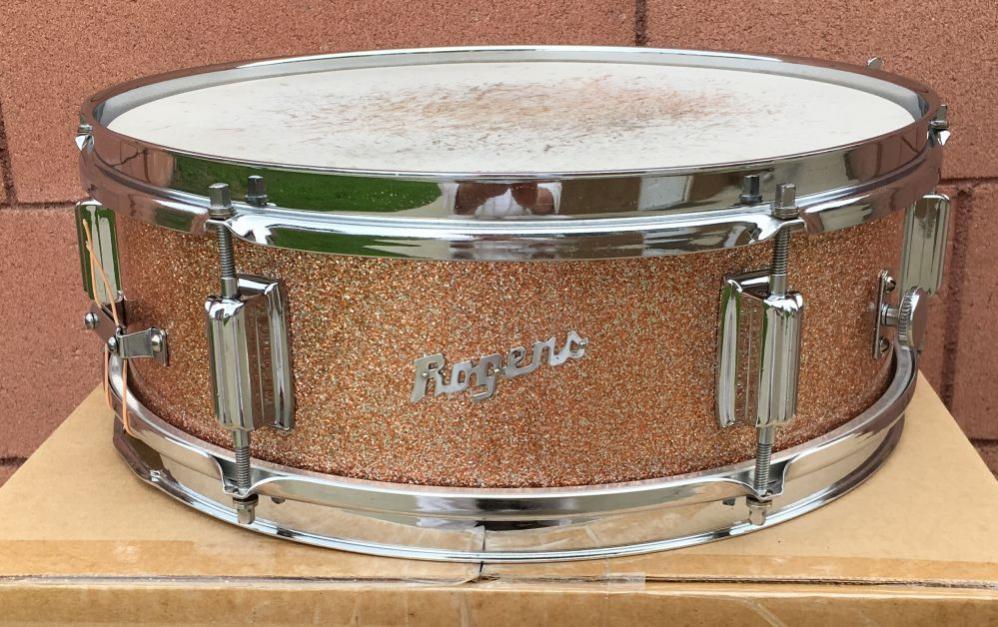

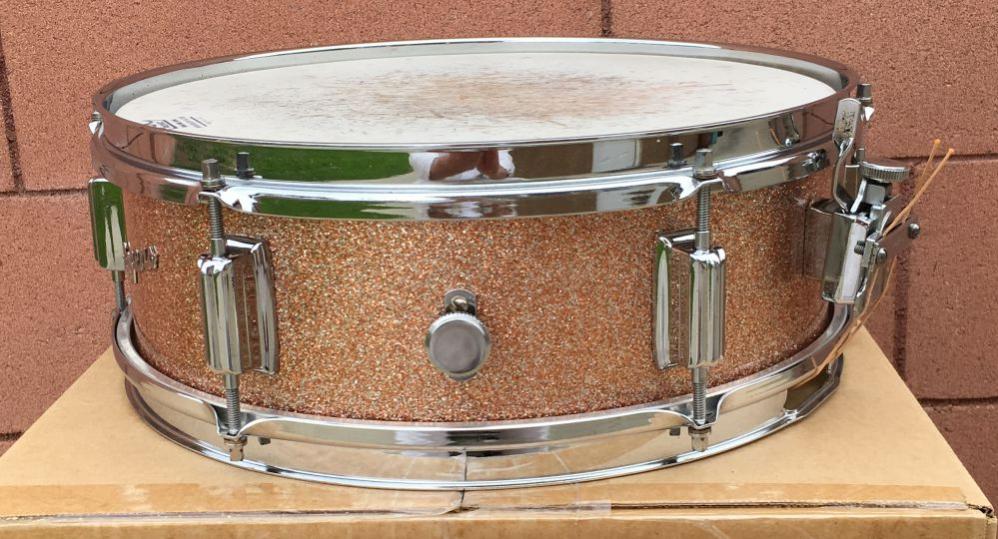

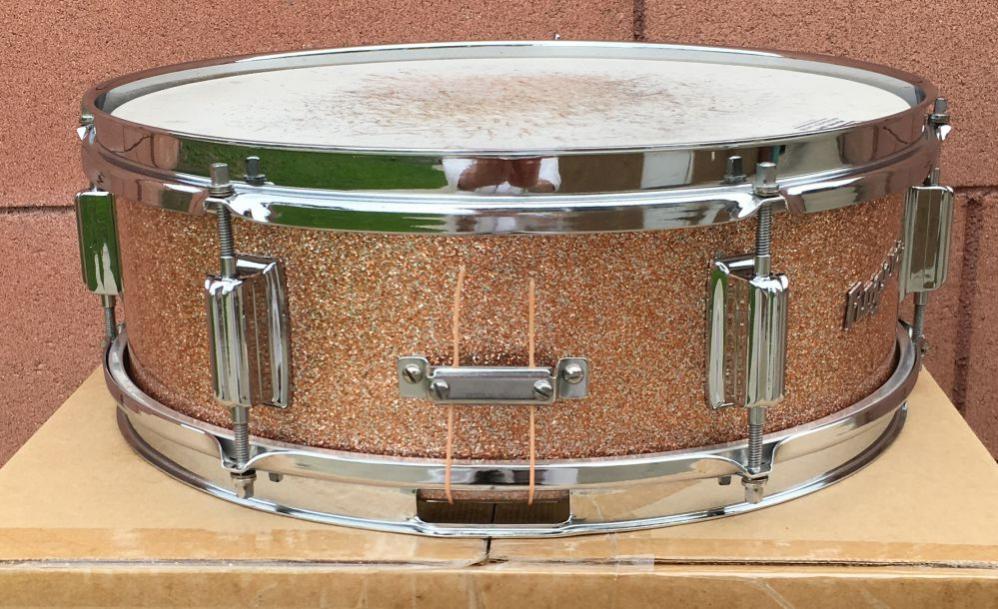

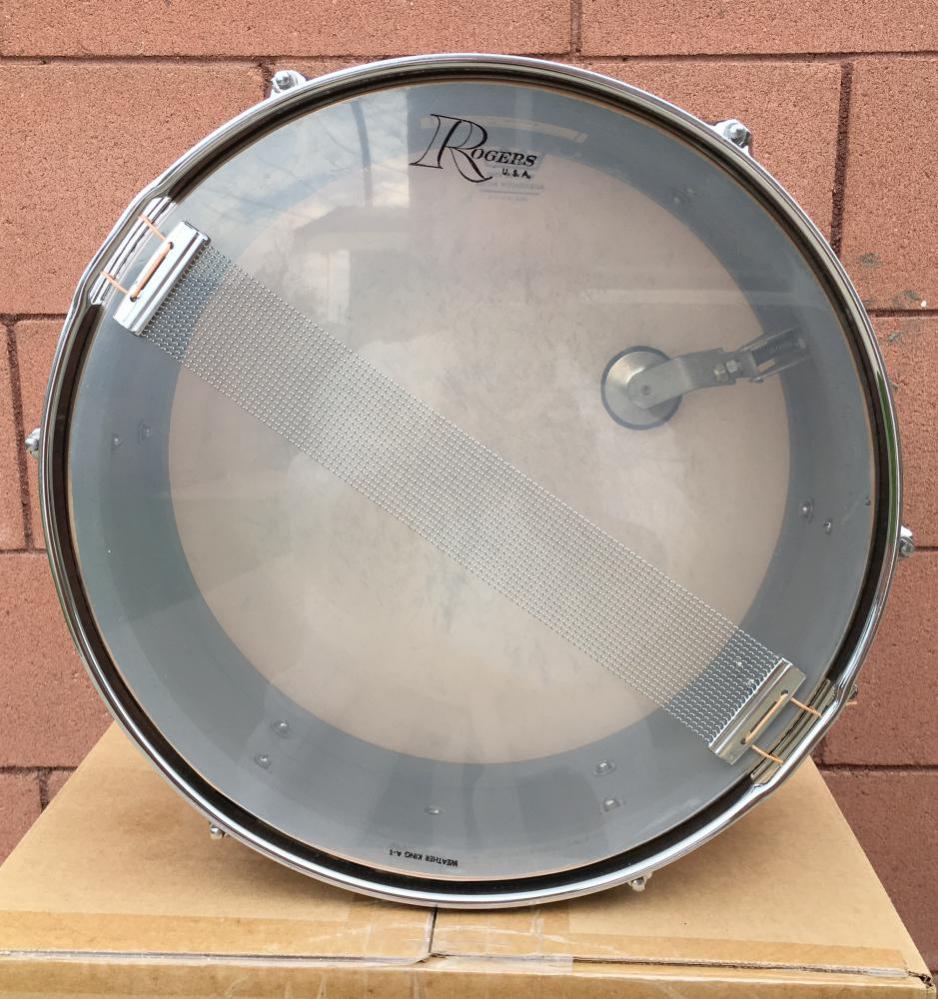

Here are some pictures of the finished drum. Because I wanted to test the sound, I installed the vintage Remo head that came with the original Silver Sparkle Luxor shell. The drum sounds woody and meaty with those six lugs! I'll install the NOS Rogers coated Ambassador before the drum takes its place on the shelf in the Drum Room!

-Mark

Posted on 5 years ago
#6
Posts: 375 Threads: 36

Thanks, I have some white lithium grease on hand. I plan to use it on the lugs.

Your drum looks great.

Posted on 5 years ago
#7
Posts: 6363 Threads: 223

From jimorlando

Thanks, I have some white lithium grease on hand. I plan to use it on the lugs. Your drum looks great.

Are you talking about putting grease on the tension rods?

-Mark

Posted on 5 years ago
#8
Posts: 375 Threads: 36

Yes, that’s my plan for my 1970 Supraphonic.

Posted on 5 years ago
#9
Posts: 6363 Threads: 223

From jimorlando

Yes, that’s my plan for my 1970 Supraphonic.

Ok, just wanted to be sure what you wanted to do. For myself, I very rarely lubricate the tension rods anymore. What I normally do is to chase the threads of the lug inserts with a 12-24 tap to remove any built up crud and clean the tension rod threads with 0000 steel wool. However, I do find that a drop of Tri-Flow (it's a good lubricant with teflon) works great. I'm just not a big fan of any grease on the tension rods. I know that everyone has there own opinion and method and mine is just what I use.

-Mark
