Ludwig Rocker paint and decal disaster!

Loading...

Here's my latest acquisition, an 80s Ludwig Rocker II kit that has been made to look like a bunch of Axe Body Spray cans. haha.

The shells are really nice though - thin 4-ply with the brown "Lud-cote" interiors. I sanded a spot and the outer ply appears to be maple. They sounded pretty good even with the beaten down ebony pinstripes they had on them.

Large classic lugs on the BD, minis on the toms. All original hoops, rods and parts are intact, but there are a couple of minor hardware issues - mostly stripped fittings - like the BD spurs for example... both stripped where the tightening wingbolts should be. The badges are long gone, but the original grommets seem to be intact.

So here are my questions for all you experts out there:

[LIST=1]

[*]What's the best way to get all this paint and decaling off of the shells - sanding or stripping?

[*]Should I try to find someone to retap the stripped hardware, or would it be cheaper/easier to just find replacements? The kick drum spurs are the Long straight Rocker type that go thru the shell at an angle.

[/LIST]

1 attachments
111.2 kB
------------------------------------------------
"I've met cats and dogs smarter than Cory and Trevor."
Posted on 7 years ago
#1
Posts: 6524 Threads: 37
Loading...

Both, stripping will get all the paint off without having to be so gentle, but then you need to sand the binding pigment that soaks into the wood. Time is the key,...you will need some.

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 7 years ago
#2
Loading...

Hey that's a nice project you have there just the kind that I love. Get yourself some paint stripper and go to it, sanding you will take a chance of sanding too much of the veneer off.

Good luck and please post some pictures of your progress.


Thank you!
Jeff C

"Enjoy every sandwich" Warren Zevon
Posted on 7 years ago
#3
Posts: 771 Threads: 132
Loading...

One day i got really tired of stripped hardware, so i went out and got myself a tap and die kit for about $100. I tap all the hardware myself when needed in under 2 minutes. It saves sooo much time and frustration plus you save $$$$$ while keeping the original parts on the drum.

Keep fixing them up...
Posted on 7 years ago
#4
Loading...

Thanks guys. Any recommendations on what kind of strip to use and how to do it most effectively?

Essentially what I want to do is get these down to the original maple, then stain them a darker mahogany color. I wondered if a liquid stripper would discolor the shells? I was going to sand, but I am worried about taking off too much wood.

------------------------------------------------
"I've met cats and dogs smarter than Cory and Trevor."
Posted on 7 years ago
#5
Loading...

You could always just wrap them. That's what I did with my rocker kit.

1 attachments
Posted on 7 years ago
#6
Loading...

From ardrummer

You could always just wrap them. That's what I did with my rocker kit.

They look lovely! Unfortunately I'm not looking to spend any big money refinishing these - it will be a player's kit with no badges (well, I might make some of my own custom badges), and the cheapest I've ever found decent drum wrap (real drum wrap, not the ebay sparkle stuff or the upholstery vinyl) it's at least $300-$400 to buy enough to wrap a kit. I'm hoping to get by with a more natural finish.

------------------------------------------------
"I've met cats and dogs smarter than Cory and Trevor."
Posted on 7 years ago
#7
Loading...

From DrumOgre

They look lovely! Unfortunately I'm not looking to spend any big money refinishing these - it will be a player's kit with no badges (well, I might make some of my own custom badges), and the cheapest I've ever found decent drum wrap (real drum wrap, not the ebay sparkle stuff or the upholstery vinyl) it's at least $300-$400 to buy enough to wrap a kit. I'm hoping to get by with a more natural finish.

The wrap I used is very cost effective. It's call vinyl fabric. Only thing is, there isn't a clear coat or protective coating over the glitter. It's still pretty durable though.

Here is a how to video I did as well: [ame="https://www.youtube.com/watch?v=V1HBiJJjZ6c"]How to Wrap Drums the Cheap and Easy Way - Step by Step - Wrapping Drum Shells - YouTube[/ame]

Posted on 7 years ago
#8
Posts: 1880 Threads: 292
Loading...

From DrumOgre

They look lovely! Unfortunately I'm not looking to spend any big money refinishing these - it will be a player's kit with no badges (well, I might make some of my own custom badges), and the cheapest I've ever found decent drum wrap (real drum wrap, not the ebay sparkle stuff or the upholstery vinyl) it's at least $300-$400 to buy enough to wrap a kit. I'm hoping to get by with a more natural finish.

Nice kit you have there.. I have 2 thirds of the same drums and they sound great. When i got them they were wrapped in white cortex that had turned cream yellow over the years, so that had to go. When i sanded the shell i used 220 grit, sanding very lightly towards the direction of the grain. When you see the bare shells, you will notice they are "patched" with an extra maple veneer piece to hide the imperfections that the Rockers/II were known for having. When i finished sanding the shell, I had to continue only on the patch itself, because it protrudes slightly than the rest of the ply, as it would have looked uneven with the rest of the shell, and it doesn't make for a nice paint or stain job. I'd recommend wrapping them after sanding. Here's a pic of my kit, with an extra orphaned Classic Maple tom from the early 80's, either the last of the Chicago, or first of the Monroe badge, i can't be too sure. Funny thing is, i'm actually selling them and have a potential buyer who's coming to check them out today ! I'm downsizing and can't take it with me to my new condo. It was either that kit, or my Yamaha Tour (8000) series in natural finish. I went with the kit which suits my current musical situation. As much as i hate to admit it, the Yamaha blows my Ludwig out of the water, but i somehow think i may end up having buyer's remorse.crying2-07. The wrap i used was from a local company that wrapped exclusively for a few of Ringo Starr's Ludwig kits. Mine has the same wrap as his from his 2011 studio kit..

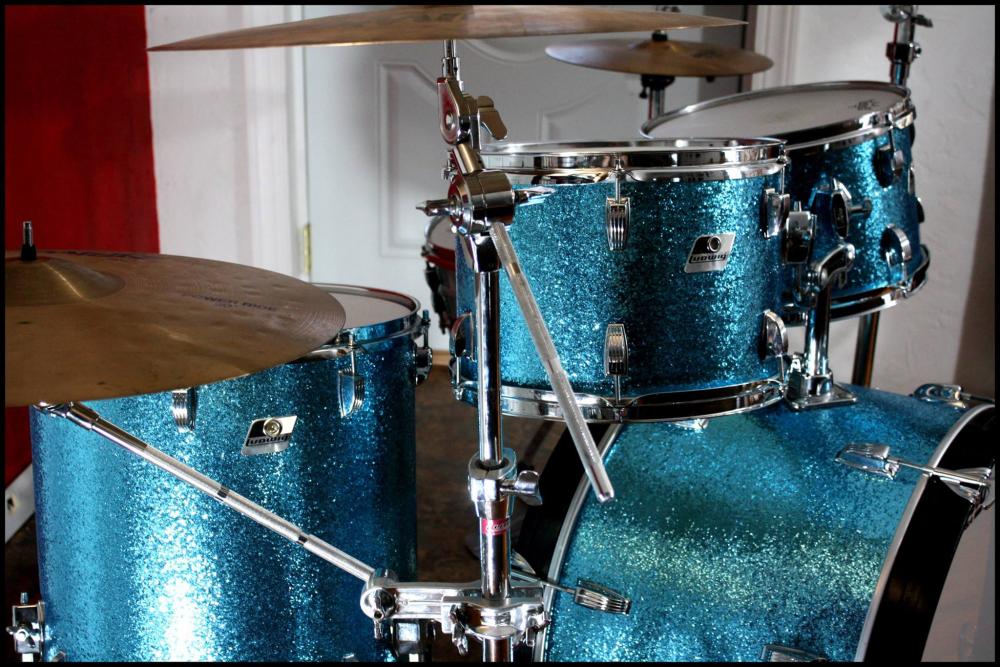

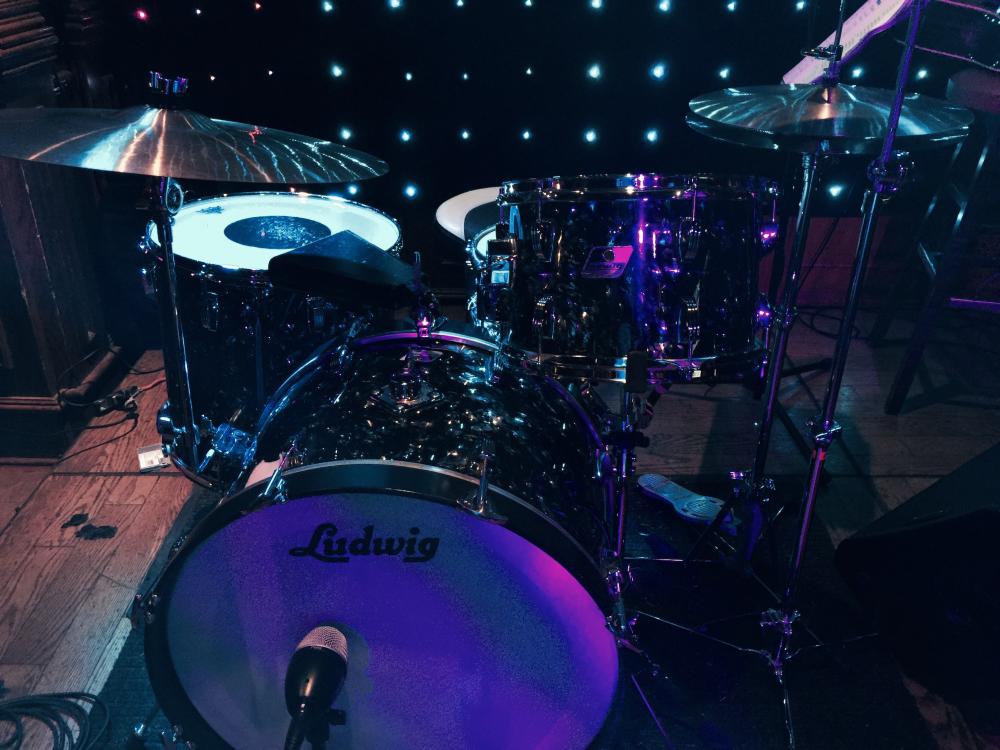

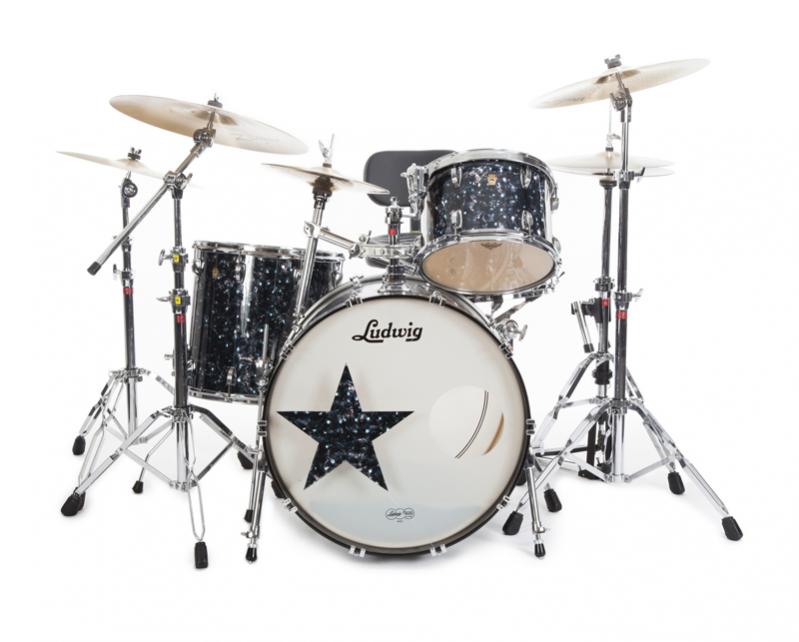

Here are a few pics of my kit, and Ringo's..Good luck with the resto project and keep us posted !

Cheers,

Rob

Posted on 7 years ago
#9
Posts: 6524 Threads: 37
Loading...

From DrumOgre

Thanks guys. Any recommendations on what kind of strip to use and how to do it most effectively?Essentially what I want to do is get these down to the original maple, then stain them a darker mahogany color. I wondered if a liquid stripper would discolor the shells? I was going to sand, but I am worried about taking off too much wood.

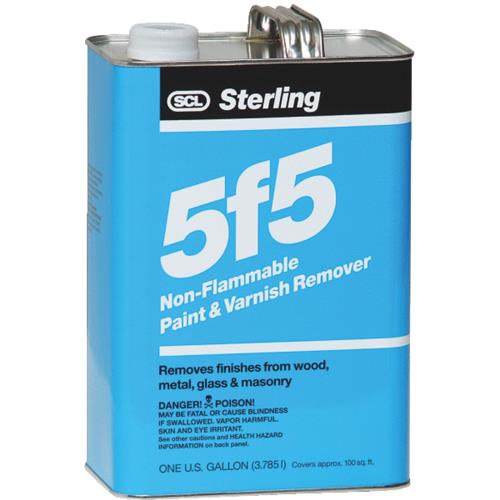

I recommend 5F5, it is water soluble, no too much fumes, and easy clean up.

1 attachments
It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 7 years ago
#10
