Ludwig Rocker paint and decal disaster!

Posts: 6524 Threads: 37
Loading...

Rule of thumb with clear finishes, dark wood gets lighter, light wood gets darker.

I don`t know why but I bet Jeff does.

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 7 years ago
#41
Loading...

From DrumOgre

Question for JC: What about Tung Oil? Would that protect and also help deepen the colour a little bit?

I wish I could give you an intelligent answer but I have no experience with that product. I know teak oil will darken natural wood and bring out the natural colors. I cant see that being much protection, i would use some varnish.


Thank you!
Jeff C

"Enjoy every sandwich" Warren Zevon
Posted on 7 years ago
#42
Loading...

I just don't know how to brush on varnish without making it look streaky or blobby. Can you recommend a product?

------------------------------------------------
"I've met cats and dogs smarter than Cory and Trevor."
Posted on 7 years ago
#43
Loading...

Clear poly and a foam brush might work. Wax afterwards to give it that more hand rubbed look and less plastic-ey. Nice work so far!

-Doug

late 60s Ludwig Standard kit (blue strata)
late 60s Star kit (red satin)
Tama Rockstar Custom
a few snares ...
Posted on 7 years ago
#44
Posts: 1427 Threads: 66
Loading...

Tung oil may work since the stain is oil based. Test it first- if it's not compatible the tung oil will never dry... wanna talk about a mess?!??

If you used a Minwax stain, use their satin poly on top. You can brush that (with the grain) and get an ok finish. Spend the money on a brush- don't skimp there. You could also put three coats and then block it out with 400 then 600 to flatten it out.

The tung oil (if it works with that stain) you can just rag on. Buff with 0000 steel wool between (3-5) coats. That'll look nice. But TEST FIRST!

Cobalt Blue Yamaha Recording Custom 20b-22b-8-10-12-13-15-16f-18f
Red Ripple '70's Yamaha D-20 20b-12-14f
Piano Black Yamaha Recording Custom Be-Bop kit 18b-10-14f
Snares:
Yamaha COS SDM5; Yamaha Cobalt Blue RC 5-1/2x14; Gretsch round badge WMP; 1972 Ludwig Acrolite; 1978 Ludwig Super Sensitive; Cobalt Blue one-off Montineri; Yamaha Musashi 6.5X13 Oak; cheap 3.5X13 brass piccolo
Posted on 7 years ago
#45
Loading...

Thanks again for the suggestions. I think I'll try a satin poly (or matte if I can find one). It is a Minwax stain I used.

Another question - brass eyelets/grommets. I need to buy a few, but the prices from Jammin' Sam and other wrap places are a little crazy ($4 each!). Is there anywhere I can order a small quantity of these eyelets and pay a fair price?

------------------------------------------------
"I've met cats and dogs smarter than Cory and Trevor."
Posted on 7 years ago
#46
Posts: 176 Threads: 7
Loading...

drumsonsale.com has them for $1.85 apiece.

https://drumsonsale.com/catalogsearch/result/?q=ludwig+grommet

Vintage kits:
1969 Rogers Holiday - black diamond pearl (20/16/13/12)
196x Star (Lyra/Majestic) - blue sparkle pearl (22/14/13) Restoration Project
1987 Pearl KC-3500 - jet black (22/16/13/12)
Not-so-vintage kits:
2007 Hart Dynamics Professional 6.4 e-kit / Roland TDW-20
Snares:
60s Gretsch 5x14 maple WMP / 68 Ludwig 5x14 Supraphonic / 93 Pearl 3x14 Free Floating brass piccolo / 60s Star (Lyra) 5x14 luan blue sparkle pearl / 87 Pearl 6.5x14 steel
Posted on 7 years ago
#47
Loading...

Thanks Vater. Still seems pretty steep - my local hardware store has bags of 7/16" size - 500 pieces - for $5. That's one penny each. But to my knowledge, Ludwigs have a 3/8" breather hole :/ - the search continues.

------------------------------------------------
"I've met cats and dogs smarter than Cory and Trevor."
Posted on 7 years ago
#48
Posts: 1525 Threads: 127
Loading...

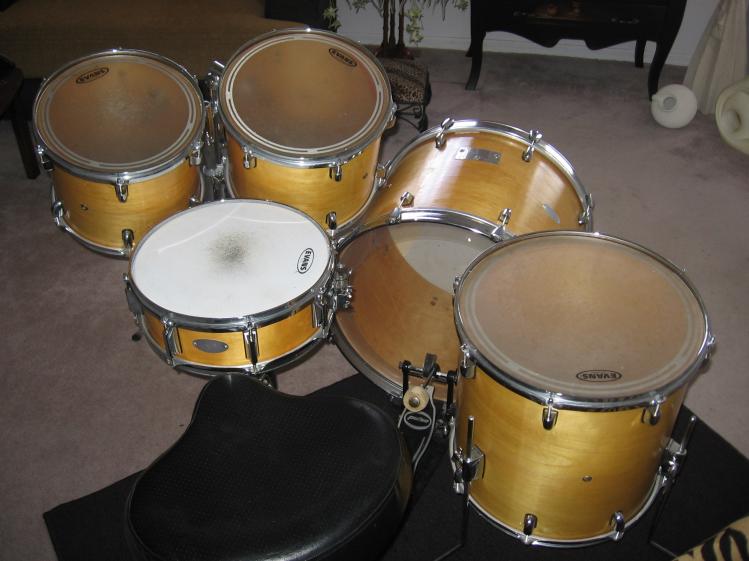

That maple looked nice in the plain bass drum pic. If you had just wiped those drums down really good with two or three coats of Tung oil, letting each application dry a couple days to penetrate the wood and dry. It would have brought out the grain and looked beautiful natural. Then Four coats of lacquer with a light sanding in between coats. I used spar marine polyurethane on mine. You Could have a beautiful natural wood set. That Tung oil penetrates and dries hard and protects the wood. I did that to these old PDP EZ series shells. The sheels were actually pretty nice and were as light or lighter than yours before the Tung oil applications. The pic doesn't do them justice. The grain was more pronounced in person. They were mahogany shells. I regret selling them last year.

1 attachments
Posted on 7 years ago
