Swivomatic pedal rehab questions

Posts: 53 Threads: 14

Good day all,

I finally found for sale online the pedal I have been searching for - the "transition" Swivomatic that has the Swivo footboard but the Supreme-style lever hoop clamp. It's going to be used for play not display so some light mods are in order with no regard for verisimilitude:

First things first while I have it torn apart for cleaning I plan to replace what I assume are oilite bushings with original spec needle bearings. Just to be sure: my best option for this are Torrington B68, correct? And where can I get the best deal on these? Lowest price I can find on eBay is $11 per.

I will also probably replace the spring which looks a bit rough. Will a garden variety Gibraltar pedal spring work on this guy?

It's also missing one of the two height adjustment set screws, and a few others show some rust -- what size/TPI am I looking at here and is there a suitable modern-day replacement?

And finally, will modern beater shafts fit in the clamp? I recall reading that the Swivo and Supreme differ in this regard so I wonder which is the oddball by current standards.

I know there are several thoughtful threads already on this topic, which I have perused with MUCH appreciation, but not all of my questions were covered so I thought I may as well just ask all of the ones I had at once. Apologies for any redundancy and thanks in advance!

Posted on 6 years ago
#1
Guest

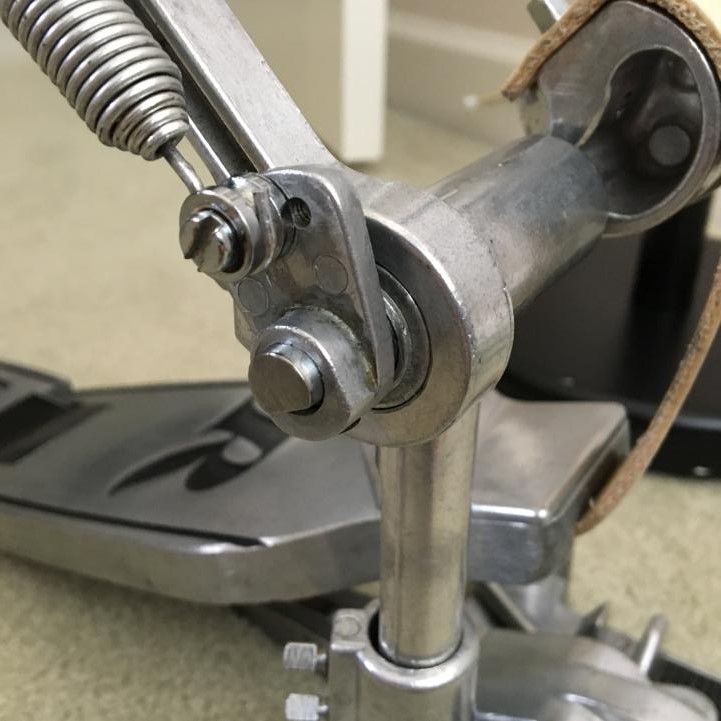

Here is what I did to tune up my Big R supreme. First, I replaced the axle shaft with 3/8 bar stock from Home Depot. I replaced the J65 needle bearings with B68 ones. They stuck out a little on each end of the stem, but they work fine. I then replaced the spring rocker with one from an older Yamaha pedal. I had to bore the hole out to 3/8” to fit the axle, but it works fine . I used the original spring, but others will work if they’re not too long.

PM me for more details if you want.

2 attachments
22.6 kB
98.1 kB
Posted on 6 years ago
#2
Posts: 72 Threads: 10

I bought my Torrington B-68 bearings from Jim's Junk (of all places). Great price ($7)and lowest shipping cost for sure given both of us are in Canada. Jim was quick to respond to my queries, gave me a bunch of shipping options, packaged the bearings well for shipping and it all worked out great!

Posted on 6 years ago
#3
Guest

The beater on my Supreme, they call it the "blackjack", has a thicker shaft than normal. I don't know about the earlier Swivos or transitional supremes (with the Swivo footboard and the supreme style hoop clamp).

I can get a regular beater shaft to work, but it helps if there's a "flat" ground into it, like earlier Yamahas. You just have to make sure to tighten it in carefully so there's no wiggle.

Posted on 6 years ago
#4
Posts: 53 Threads: 14

From 8upwithit

The beater on my Supreme, they call it the "blackjack", has a thicker shaft than normal. I don't know about the earlier Swivos or transitional supremes (with the Swivo footboard and the supreme style hoop clamp).I can get a regular beater shaft to work, but it helps if there's a "flat" ground into it, like earlier Yamahas. You just have to make sure to tighten it in carefully so there's no wiggle.

Thanks for your answer. Ideally I would be using a Blackjack which is more practical than the DW but that would require swapping the cam out for one from a Big R which I'm sure is feasible.

Alternatively I wonder if Rogers will be selling their new Dynamatic pedal's beater separately -- it appears to be identical to the Blackjack with what one assumes is a modern shaft diameter...

Posted on 6 years ago
#5
Posts: 53 Threads: 14

Another question about the bearings.

Are the Koyo brand bearings pretty much identical to Torrington? I see something about them having the same parent company.

Posted on 6 years ago
#6
Guest

From Acrolite Acolyte

Another question about the bearings.Are the Koyo brand bearings pretty much identical to Torrington? I see something about them having the same parent company.

They are. I bought some.

Posted on 6 years ago
#7
Guest

From Acrolite Acolyte

Thanks for your answer. Ideally I would be using a Blackjack which is more practical than the DW but that would require swapping the cam out for one from a Big R which I'm sure is feasible. Alternatively I wonder if Rogers will be selling their new Dynamatic pedal's beater separately -- it appears to be identical to the Blackjack with what one assumes is a modern shaft diameter...

I'm sure they will at some point, but I hope it's longer than the blackjack, which I think is too short :(

Posted on 6 years ago
#8
Guest

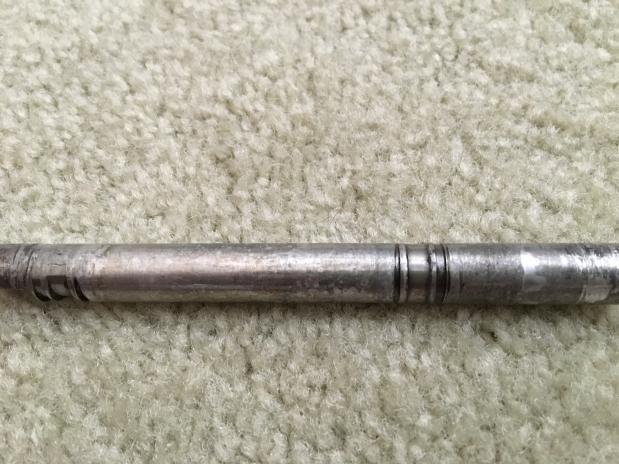

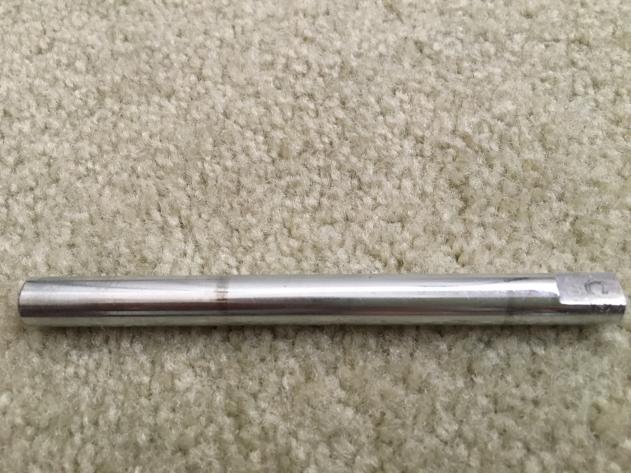

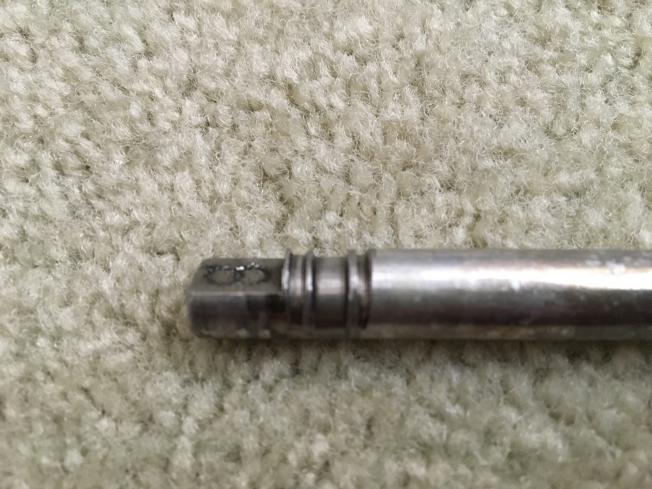

BTW, here are some photos of a Supreme shaft that I bought for parts. The grooves are from the original J65 bearings, which had obviously been neglected. The other pic is a new shaft I made from 3/8” bar stock. Works like a charm.

Posted on 6 years ago
#9
Guest

Sorry, forgot to upload photos.

Posted on 6 years ago
#10
