Does anyone know how to remove the hinge pin from the footboard? It looks like the only thing holding it in place is a spring pin, but it doesn’t go all the way through, so I can’t just tap it out. Any help is appreciated.
Only Admins can see this message.
Data Transition still in progress. Some functionality may be limited until the process is complete.
Rogers Supreme pedal question
Guest
Loading...
Posted on 6 years ago
#1
Guest
Loading...

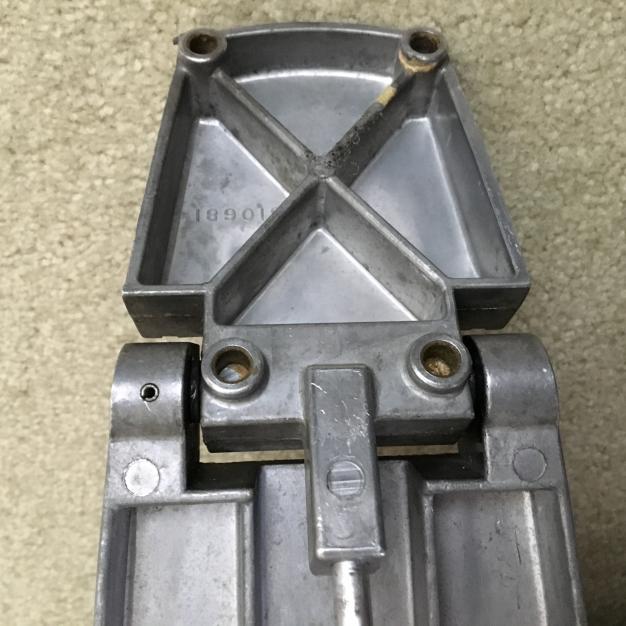

Sorry for same photo twice...the spring pin is visible on the left side of the hinge.
Posted on 6 years ago
#2
Posts: 1077
Threads: 3
Loading...
A roll pin in a blind hole is tough. You may be able to twist it out with a small "screw extractor".
Posted on 6 years ago
#3
Guest
Loading...
A roll pin in a blind hole is tough. You may be able to twist it out with a small "screw extractor".
Figured out how to remove it, in case you were curious. I stuck a straight pin thru the roll pin, and found that it goes almost all the way through to the other side. I used a 1/16 drill bit, which fit thru the roll pin, and drilled it all the way thru. Then it was just a matter of tapping it out with a punch, then tapping the hinge pin out.Cool1
Posted on 6 years ago
#4
Posts: 6363
Threads: 223
Loading...
Figured out how to remove it, in case you were curious. I stuck a straight pin thru the roll pin, and found that it goes almost all the way through to the other side. I used a 1/16 drill bit, which fit thru the roll pin, and drilled it all the way thru. Then it was just a matter of tapping it out with a punch, then tapping the hinge pin out.Cool1
Excellent! I've never come across this issue, so your solution will be valuable. Thanks!
-Mark
