Need Close-Up pics of Super Sound King Strainer

Loading...

I sm trying to restore a mid-70's Super Sound King and think I'm missing pieces to tge strainer. I've checked catelog scans and did search, but can't find anything.

Can someone please post some closeup pics of both sides of the strainerand of tge snarewiresetup.

Thanks very much.

Candy Apple Red 1982 DB Tama Superstar 14 pc.
'59 Slingerland Radio King Red Glass Snare 14 x 5
'69 Rogers Chrome 5-Line Dyna Snare 14 x 5 (Sold)
'67 Slingerland Sound King 14 x 5 Snare (Sold)
'73 Slingerland Super Sound King 14 x 5 Snare (Sold)
'68 Slingerland 10-Lug Aluminum 14x5 Snare (Sold)
'68 Rogers Dayton COB Powertone Snare 14 x 5 (Sold)
Tama Superstar Candy Apple Red Snare 14x6 1/2 (Sold)
Tama Superstar Candy Apple Red Snare 14x6 1/2 w/o Muffler

All Zildjian, all the time!
Posted on 13 years ago
#1
Loading...

In the 70's,Slingerland made the Rapid strainer,the Zoomatic,the three point on radio kings,and later in the 70,s the TDR strainer,and the Slapshot..but i've never heard of the ...tge strainer.I think on the super sound king they called it the dual super strainer.There are clear photos in the catalog scans of snare drums.

Steve B

Posted on 13 years ago
#2
Loading...

From Vipuronr

I sm trying to restore a mid-70's Super Sound King and think I'm missing pieces to tge strainer. I've checked catelog scans and did search, but can't find anything.Can someone please post some closeup pics of both sides of the strainerand of tge snarewiresetup.Thanks very much.

What do you think is missing? If I have time tonight Ill snag some pics of mine but its the 60s version

From tamadrm

In the 70's,Slingerland made the Rapid strainer,the Zoomatic,the three point on radio kings,and later in the 70,s the TDR strainer,and the Slapshot..but i've never heard of the ...tge strainer.Steve B

Tge=the

1973 Slingerland Phantom 13,16,22
Late 30s Slingerland Radio King- 7x14
SJC Custom Snare Pink Sparkle- 8x14
62 Slingerland COB Radio King- 5x14
Posted on 13 years ago
#3
Loading...

From Vipuronr

I sm trying to restore a mid-70's Super Sound King and think I'm missing pieces to tge strainer. I've checked catelog scans and did search, but can't find anything.Can someone please post some closeup pics of both sides of the strainerand of tge snarewiresetup.Thanks very much.

Hey man,

I'm in the process of restoring a mid seventies Super myself but currently it is in many pieces. Can you post some pics of what you're looking at that doesn't appear right or what you think is a problem, I can probably help.

Dan

"Play the drum...don't let it play you" - Max Roach

1968, 1974 & 1984 Rogers Dyna•Sonic COB
1971, 1976 Slingerland GK Sound King
1973 Slingerland Festival
1920's-40's Slingerland (US Military) Field Snares (6)
19?- Ludwig Field Snare (US Marines)
1960's Premier Gold Glitter Student Snare kit
1960's-? MIJ Snares (way-way too many)
Posted on 13 years ago
#4
Loading...

Okay Tama, funny...it was a typo...that is what happens when you type on a phone!

Candy Apple Red 1982 DB Tama Superstar 14 pc.
'59 Slingerland Radio King Red Glass Snare 14 x 5
'69 Rogers Chrome 5-Line Dyna Snare 14 x 5 (Sold)
'67 Slingerland Sound King 14 x 5 Snare (Sold)
'73 Slingerland Super Sound King 14 x 5 Snare (Sold)
'68 Slingerland 10-Lug Aluminum 14x5 Snare (Sold)
'68 Rogers Dayton COB Powertone Snare 14 x 5 (Sold)
Tama Superstar Candy Apple Red Snare 14x6 1/2 (Sold)
Tama Superstar Candy Apple Red Snare 14x6 1/2 w/o Muffler

All Zildjian, all the time!
Posted on 13 years ago
#5
Loading...

I have looked at the catalog scans, but they are only shot from the top/front. None are shot from the bottom, showing how the snare wires attach and the bar as well.

Candy Apple Red 1982 DB Tama Superstar 14 pc.
'59 Slingerland Radio King Red Glass Snare 14 x 5
'69 Rogers Chrome 5-Line Dyna Snare 14 x 5 (Sold)
'67 Slingerland Sound King 14 x 5 Snare (Sold)
'73 Slingerland Super Sound King 14 x 5 Snare (Sold)
'68 Slingerland 10-Lug Aluminum 14x5 Snare (Sold)
'68 Rogers Dayton COB Powertone Snare 14 x 5 (Sold)
Tama Superstar Candy Apple Red Snare 14x6 1/2 (Sold)
Tama Superstar Candy Apple Red Snare 14x6 1/2 w/o Muffler

All Zildjian, all the time!
Posted on 13 years ago
#6
Posts: 5227 Threads: 555
Loading...

Hi, What strainer do you need photos of? the zoomatic or TDR?..I also have parts for any of these strainers some new old stock..Mikey

Posted on 13 years ago
#7
Loading...

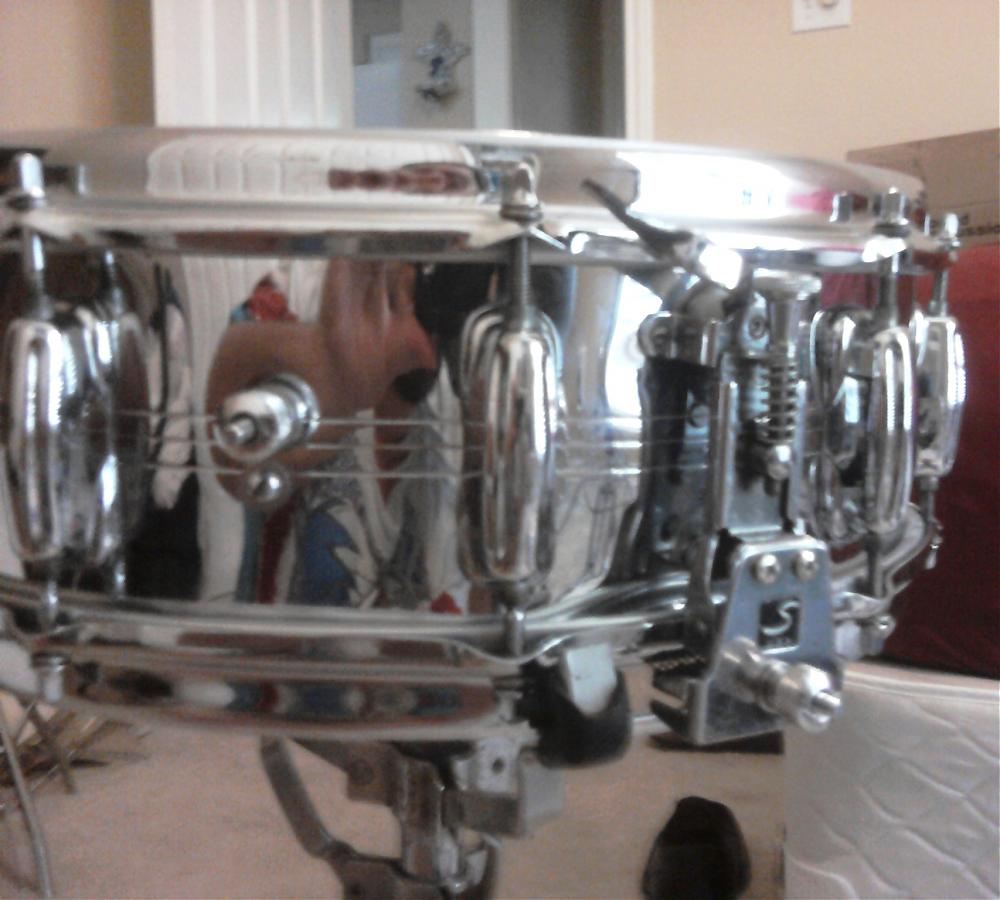

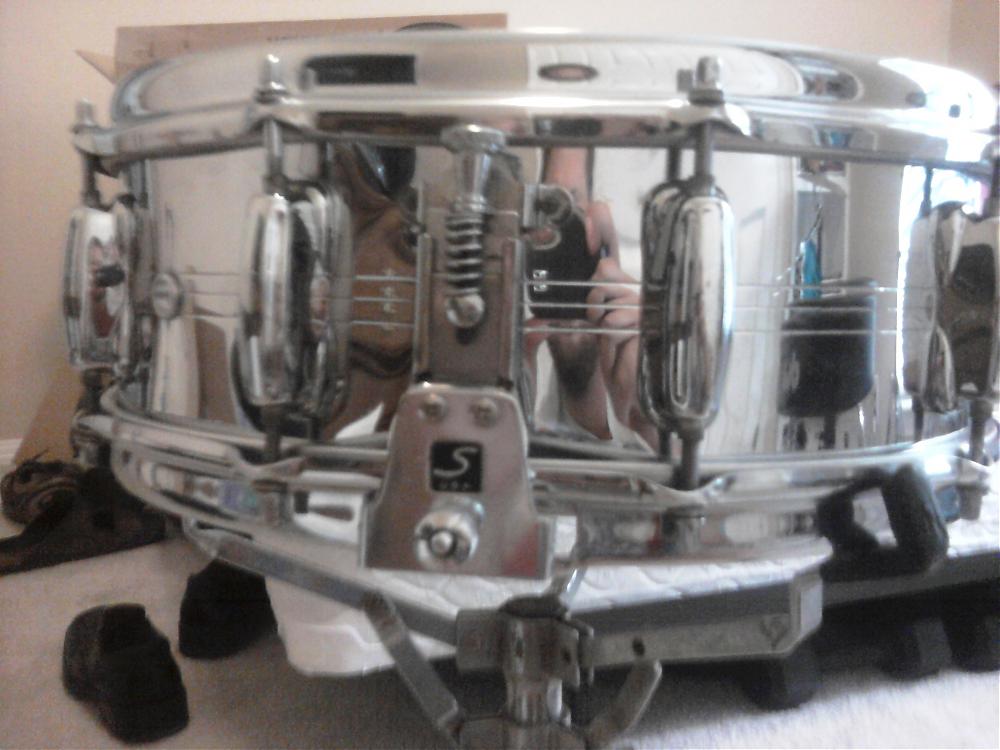

Vipuronr, here are some pics of my mid-70s SSK that I had on my work computer, I'll shoot some pictures of the snare setup for you this evening. Note, mine is missing the snare gates.

Posted on 13 years ago
#8
Loading...

Thanks Dead...appreciate the pics! Mikey, thanks for the offer, will certainly take you up on it once I figure out what I am missing.

Guys, I'm looking for pics of the bottom on the drum to show the bottomof both strainers and how the snare wires attach. I've seen only one (not close-up) pic

of the boytom and it looks like there is a bar that goes over thewires and attaches to the bottom portion of each strainer. If I'm not mistaken, the adjustment screws into this bar on each strainer. The adjusyment knob looks a lot like the one used on the muffler.

The Tob Cook book does not show this detail and they spent little time on this dual strainer setup. Not sure howpopilar this drum was/is, asit was only in production from '67 to '74/75.

For me,.its cool like the Luddy Super Sensative!

Thanks for the help.

Candy Apple Red 1982 DB Tama Superstar 14 pc.
'59 Slingerland Radio King Red Glass Snare 14 x 5
'69 Rogers Chrome 5-Line Dyna Snare 14 x 5 (Sold)
'67 Slingerland Sound King 14 x 5 Snare (Sold)
'73 Slingerland Super Sound King 14 x 5 Snare (Sold)
'68 Slingerland 10-Lug Aluminum 14x5 Snare (Sold)
'68 Rogers Dayton COB Powertone Snare 14 x 5 (Sold)
Tama Superstar Candy Apple Red Snare 14x6 1/2 (Sold)
Tama Superstar Candy Apple Red Snare 14x6 1/2 w/o Muffler

All Zildjian, all the time!
Posted on 13 years ago
#9
Loading...

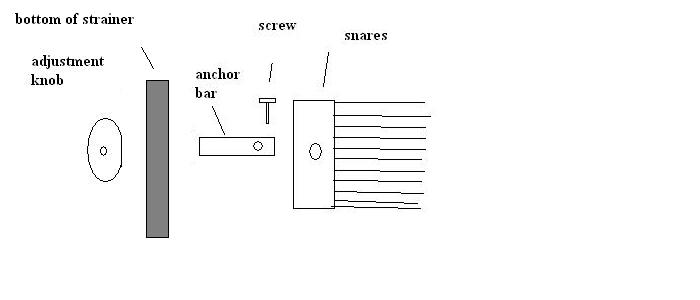

So didn't have time last night to take any pics but I had some time at work to draw up a quick mock up in paint that may help ya out.

Basically the screw attaches the snares to an anchor bar, this bar is threaded. The bar goes through the bottom of the strainer and an adjustment knob attaches on the other end. This provides horizontal tension adjustment. On the later models the bottom of the strainer has a slot where the edges of the snares sit in to provide a little protection for them.

HOORAY MS PAINT!

1 attachment
1973 Slingerland Phantom 13,16,22
Late 30s Slingerland Radio King- 7x14
SJC Custom Snare Pink Sparkle- 8x14
62 Slingerland COB Radio King- 5x14
