Mystery FT - Slingerland or MIJ?

Loading...

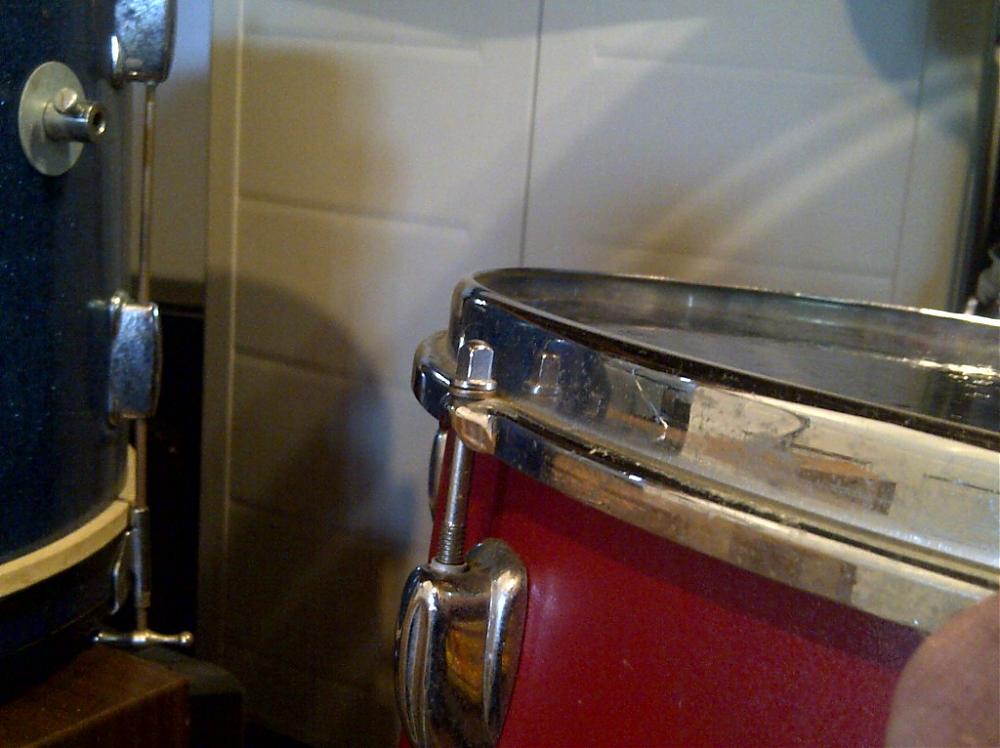

I recently acquired this 16 inch FT as part of a deal. It has been painted red, though obviously was wrapped in a satin wrap (texture and swirly reflections). Please see the attached pics and try to help me determine if this is a Slingerland or an MIJ copy. The shell appears to be Slingerland to me, though some of the hardware suggests MIJ (like the rim - as I think genuine Slingerland Slick Savers had a more gradual slanted curve to them)???

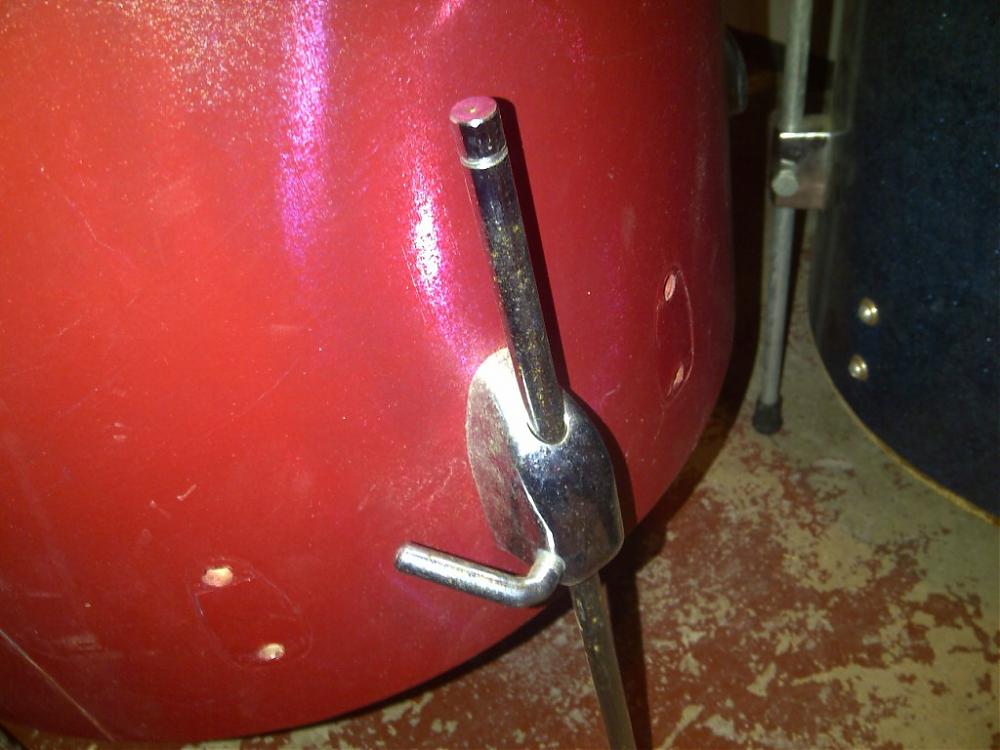

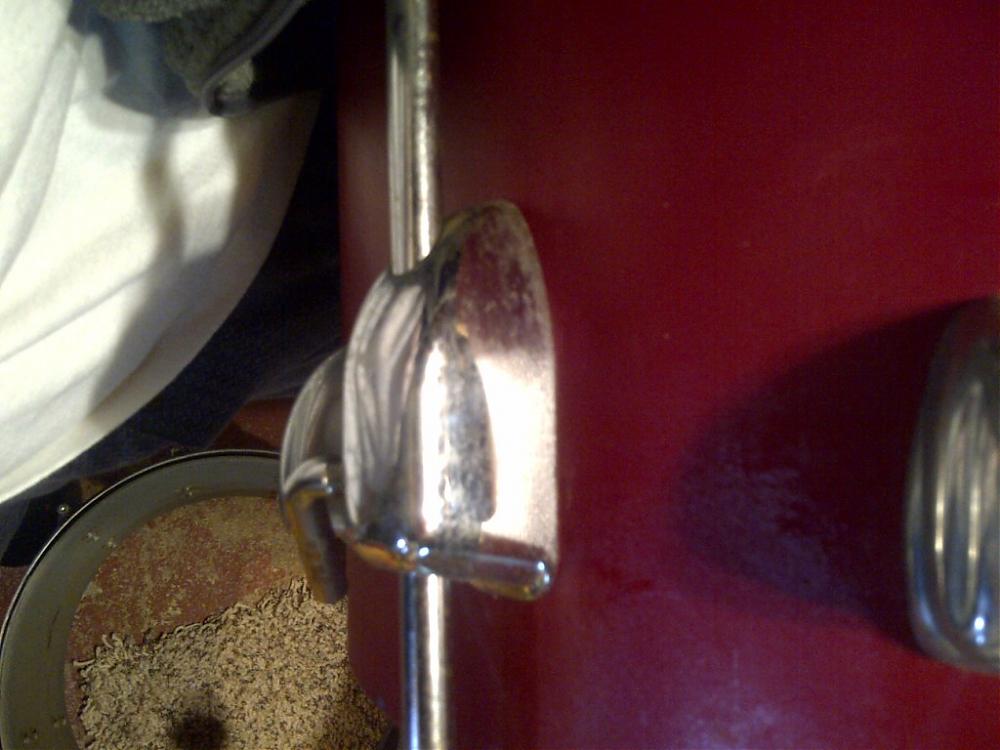

Also in question are the leg mounts - which appear to be Slingerland, though I am not sure Slingerland ever used arms as opposed to T bolts.

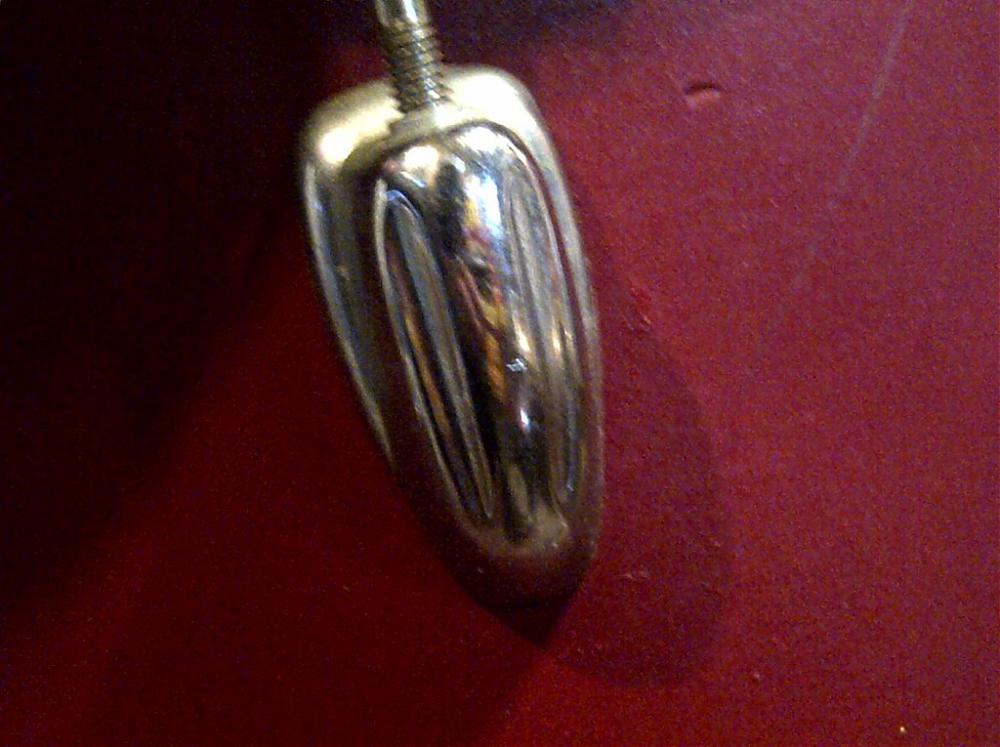

Also see the lugs - which, by the way - (at least) the inserts on the bottom lugs appear to be MIJ as a Star lug fit it.

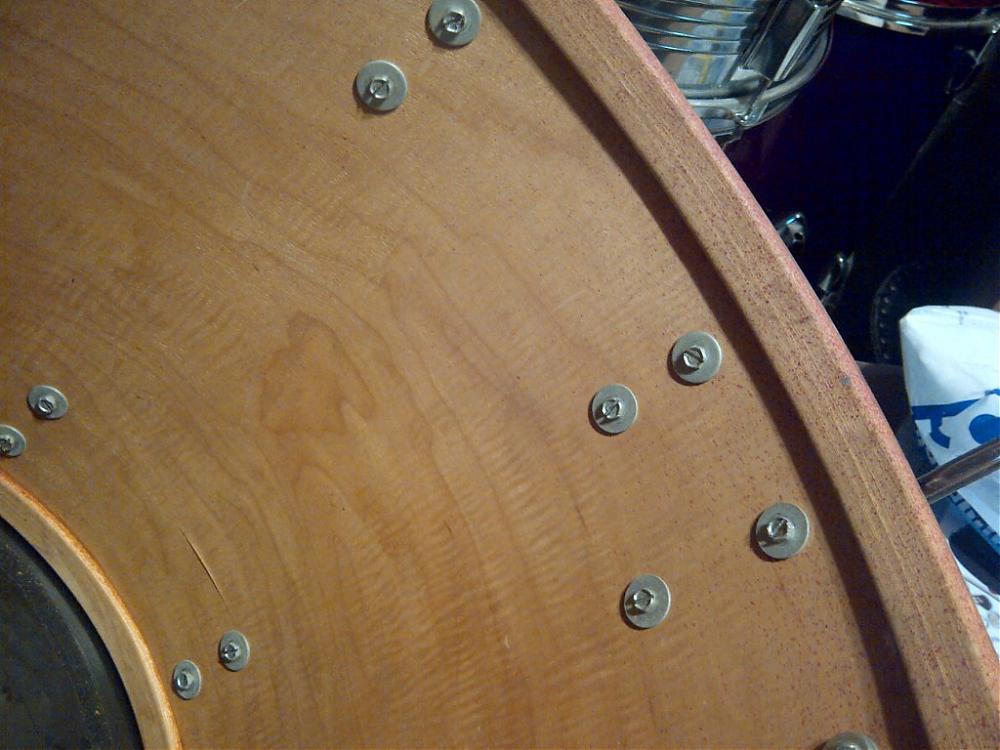

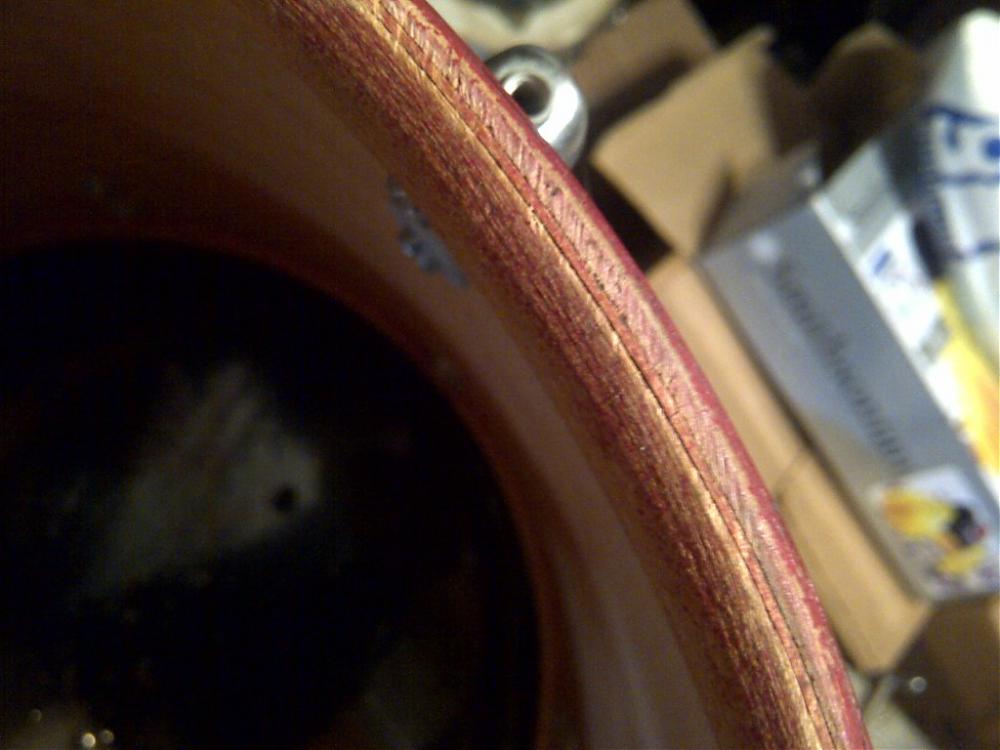

My guess so far is a very good Slingerland MIJ copy - but the shell does not make too much sense as the wood looks more like Slinger Maple than MIJ Luan. Every once in a while, we will run into a genuine MIJ drum without the verticle grain luan (more common in BDs).

The badge is gone, but it evidently was the oval shape (which suggests Apollo?)

Could it be a Slinger shell and MIJ hardware??

John

I had a great day! Instead of sleeping in and wasting the day, I got up at 8 and I had all my slacking done by noon!

2Timothy1:7
Posted on 11 years ago
#1
Loading...

Additional pics

3 attachments
I had a great day! Instead of sleeping in and wasting the day, I got up at 8 and I had all my slacking done by noon!

2Timothy1:7
Posted on 11 years ago
#2
Posts: 5356 Threads: 87
Loading...

The shell and lug screws/washers look Slingerland. If the lugs have 2 nubs that locate the lugs into the shell I'd say Slingerland. The MIJ copy lugs don't have the nubs and are flat. Hopefully someone can confirm for you!

Glenn.

Not a guru just havin fun with some old dusty drums.
Posted on 11 years ago
#3
Loading...

Yes - the lugs do have the nubs - and heavier than the MIJs. Perhaps someone swapped out the inserts for the tension rods they had?

John

I had a great day! Instead of sleeping in and wasting the day, I got up at 8 and I had all my slacking done by noon!

2Timothy1:7
Posted on 11 years ago
#4
Posts: 3467 Threads: 116
Loading...

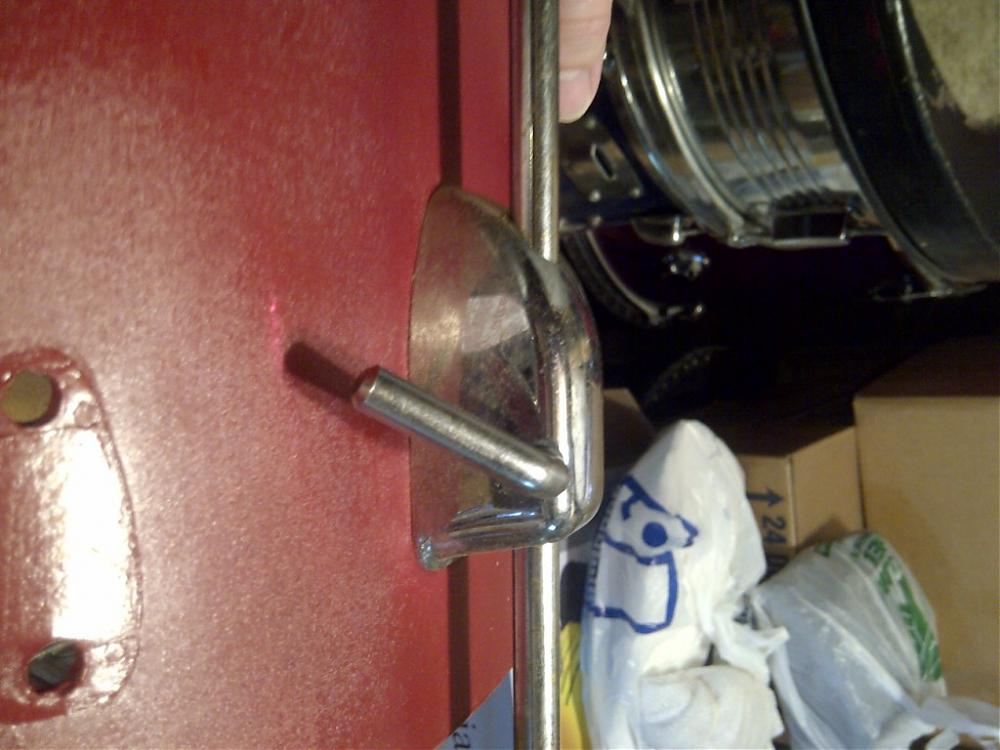

Only thing I see not Slingo is the leg mount screw, should be a T handle..

Cheers

'77 Slingerland 51N,Super Rock 24,18,14,13.. COW 8,10 Concert toms
'69 Slingerland Hollywood Ace
'75 Rogers Dynasonic 6.5 x 14, 10 lug COB
'77-78 Slingerland 6.5 x 14, 10 lug COB
'78-79 Slingerland 5 1/4 x14 8 lug COB
'79 Biman 5 1/4, Acrolite
'82 Slingerland 5 1/4 x 14. Festival COS
'84 Tama MasterCraft Superstar 6.5 x 14, 10 lug Rosewood
'98 Slingerland (Music YO) 6" 10 Lug Maple.. NOS
Zildjian, Sabian , UFIP & Paiste mix.
Posted on 11 years ago
#5
Loading...

Could someone confirm for me about the legs and leg mounts. These legs appear to be 60s. Did Slingerland ever use these arms instead of the T bolts? Could they just be replacements? These legs appear to be genuine Slinger (I have researched that) - just not sure when that dates them to (at least the legs). Perhaps the wrap would date it as well - Satin for sure, just not sure what color. I could start removing some red paint if needed - but may not be needed.

John

I had a great day! Instead of sleeping in and wasting the day, I got up at 8 and I had all my slacking done by noon!

2Timothy1:7
Posted on 11 years ago
#6
Loading...

Slingerland had those particular L handle mounts for one year only. they do look slingerland.

Your drummers not much good is he!? What you need is someone that's as good as me. ! John Henry Bonham !!
Posted on 11 years ago
#7
Loading...

From vintagemore2000

Slingerland had those particular L handle mounts for one year only. they do look slingerland.

Um.....that begs the question.....as I don't happen to know that year. Probably starts with a 1 9 and 6 right?

John

I had a great day! Instead of sleeping in and wasting the day, I got up at 8 and I had all my slacking done by noon!

2Timothy1:7
Posted on 11 years ago
#8
Loading...

It's no mystery:

It's either a Leedy floor tom manufactured in the 1960's during the period Slingerland acquired Leedy, retrofitted with Slingerland lugs, or a Slingerland floor tom with later retrofitted Slinger-Leedy floor tom leg castings. Those "L" screws on the leg castings are the evidence for being Leedy, while the Sound King lugs give evidence for it being a Slingerland drum! Both brands shared the same model Slingerland "Rimshot" counter hoops and 3-ply maple shells, and both brands used oval badges. Any way you look at it it's a quality drum!

Posted on 11 years ago
#9
Loading...

Thanks Buckie for the great glowing summary!

That being said - I honestly have no need for this particular drum. I could use some of the parts, but then it would spoil it for the next owner - so selling it as is. I will let you remove some red paint to discover the wrap and decide what to do (unless a prospective buyer wants to know what exact wrap it is...let me know).....so

Up for sale.....see FS section for more details.

BTW - any more details are still very much welcomed - like what year it may be (or at least what year the parts might be).

Thanks,

John

I had a great day! Instead of sleeping in and wasting the day, I got up at 8 and I had all my slacking done by noon!

2Timothy1:7
Posted on 11 years ago
#10
