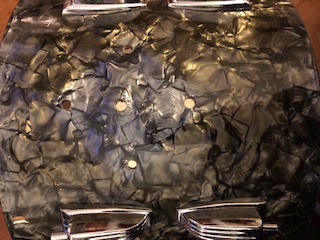

Hi folks, I picked up a Ludwig Tom a while ago and just now getting around to cleaning it up. The drum came with a diamond rail mount bracket. When I removed it I found that there was also another hole in the middle drilled for the more common rail mount. All of the holes are clean and the fade on the wrap shows that the diamond bracket was on the drum most or all of its life. There is no sign of the rail bracket ever being installed other than the extra hole. Does anyone knows if all of these holes were drilled at the factory? Thanks for your help.
Only Admins can see this message.
Data Transition still in progress. Some functionality may be limited until the process is complete.
Ludwig Tom Mount Question
Posts: 92
Threads: 5
Loading...
Posted on 4 years ago
#1
Posts: 404
Threads: 23
Loading...
I don't see how that extra hole could be factory. Someone at one point in time decided it needed a newer type of mount on the tom; at least it's covered by the original.
John/Levelpebble
Tama Superstar 81 Aqua bop
Rogers Cleveland BDP (x2), Silver bop, Champagne, Black/Gold Duco, WMP, Blue sparkle; Dayton Red Onyx;
Camco Oaklawn 12 14 20 5x14 Tuxedo WMP
LW 59 SC Blue Sparkle, WMP
WFL Gold Sparkle SC, WMP Compacto
Gretsch 49/50 Broadkaster WMP
Fibes Copper Forte
Remo MasterEdge Bop, Gold Crown, Mondo
Slingerland Conway Black Satin
70's MIJ Del Ray, my first and fav ok I'm lying here
Way Too Many Snares, She Says
Tama Superstar 81 Aqua bop
Rogers Cleveland BDP (x2), Silver bop, Champagne, Black/Gold Duco, WMP, Blue sparkle; Dayton Red Onyx;
Camco Oaklawn 12 14 20 5x14 Tuxedo WMP
LW 59 SC Blue Sparkle, WMP
WFL Gold Sparkle SC, WMP Compacto
Gretsch 49/50 Broadkaster WMP
Fibes Copper Forte
Remo MasterEdge Bop, Gold Crown, Mondo
Slingerland Conway Black Satin
70's MIJ Del Ray, my first and fav ok I'm lying here
Way Too Many Snares, She Says
Posted on 4 years ago
#2
Posts: 273
Threads: 6
Loading...
I don't understand, what type of newer mount are you thinking of with just one screw?
Posted on 4 years ago
#3
Posts: 580
Threads: 10
Loading...
What is the hole spacing from the original bottom hole to the one in the center? Someone probably drilled that hole to install a Ludwig Classic mount. Not an uncommon modification.
Posted on 4 years ago
#4
Posts: 92
Threads: 5
Loading...
I don't understand, what type of newer mount are you thinking of with just one screw?
No no, a common 1960’s Atlas bracket would use the existing bottom hole and require the one extra hole in the center.
Thanks everyone. The tom is from 1964, just around the time they were phasing out the diamond brackets. So maybe the shell was in stock and already drilled for an Atlas mount, but they needed to fill an order with the diamond bracket and added the other three holes after the fact? There is no evidence that a two hole Atlas bracket was installed other than the extra hole. No fading or indents in the wrap, which is why I asked. It doesn’t really matter, but I’m going to list it and want to be forthcoming with a potential buyer.
Posted on 4 years ago
#5
Posts: 5176
Threads: 188
Loading...
What is the hole spacing from the original bottom hole to the one in the center? Someone probably drilled that hole to install a Ludwig Classic mount. Not an uncommon modification.
It appears as if the bottom hole and the center hole are on-center of the shell. The other holes (supposedly the diamond mount holes) are off center. So, I would think that the original holes are there for a classic, L-arm mount and then someone drilled some extra holes to fit a diamond clip-mount plate...I don't understand who would have wanted to do that, but....Maybe ATeam's theory is correct.
Is there any evidence on the inside of the shell that something was screwed down at the center hole?
"God is dead." -Nietzsche
"Nietzsche is dead." -God
"Nietzsche is dead." -God
Posted on 4 years ago
#6
Posts: 273
Threads: 6
Loading...
Oh I see
DOH
Posted on 4 years ago
#7
Posts: 580
Threads: 10
Loading...
Just so you know the correct nomenclature, the die cast tom mount is not referred to as the Atlas mount. Atlas was the name for the heavy duty stands introduced in the 70's. Not to be confused with the hardware and isolation mounts they make today. The most common name for the die cast mount is the Classic Mount which is the name Ludwig currently uses.
Posted on 4 years ago
#8
Posts: 92
Threads: 5
Loading...
No evidence of the center hole ever being used from the inside of the shell either. The diamond bracket has a plate for the inside and there are no marks other than the diamond shaped shadow on the paint. And whoever drilled the holes did a very clean job, which is why I asked if it was done at the factory. Thanks everyone for your input.
