Hi folks,

I'm doing a 15"X12" Club Date floor tom restoration and need some detailed input before drilling. Need to know the exact position of the badge, legs and muffler.

Some good pictures would be welcome.

Thanks

Stef

Posted on 12 years ago
#1
Posts: 763 Threads: 110

… gentle Bump ...

Posted on 12 years ago
#2
Posts: 177 Threads: 45

http://www.drumfoundry.com/p-3334-shell-layout-mat.aspx

The badge will be cantered between the two front lugs which are centered between the two front leg brackets. You can pick which is the front really.

-Beau

1969 Ludwig Big Beat Mod Orange 12/13/16/22
1976 Ludwig Green Vistalite 12/13/16/22 & 5 1/2x14
1940 Ludwig & Ludwig Universal Concert Snare 6.5x14
2013 C&C Aged WMP 13/16/22


beaubruns.tumblr.com
cowboyindianbear.com
Posted on 12 years ago
#3
Posts: 4009 Threads: 209

Forgive my ignorance.....but if this is a "restoration" why would you need to re-drill for the badge vent hole and the leg brackets? Hmmmm

Wouldn't those holes already be there?

Posted on 12 years ago
#4
Posts: 10714 Threads: 579

Here this is a 14x14" but it's a clubbie here is a pic of a 12x15 tom

2 attachments
55.3 kB
002 (4).jpg
102.4 kB
Your drummers not much good is he!? What you need is someone that's as good as me. ! John Henry Bonham !!
Posted on 12 years ago
#5
Posts: 763 Threads: 110

Thanks,

here's the deal,…

I'm doing a challenging Club Date resto,..

http://www.vintagedrumforum.com/showthread.php?t=30307&highlight=club+date

I was missing a floor tom and got one cheap from Ebay. It was a KB no serial and had its original blue sparkle wrap. (no pictures, sorry)

It was a 15"X12" but had its issues. It wasn't a marching snare conversion because it didn't have the holes from the snare mechanism. The leg bracket are not the typical spring types but the conventional Ludwig ones and the holes were very badly drilled, one of them even completely out so the leg didn't stand straight. The badge wasn't positioned in the centre but about 4 inches from top edge under the muffler.

The guy I bought it from said it used to be a hanging tom and was converted to a floor tom… no idea ??????

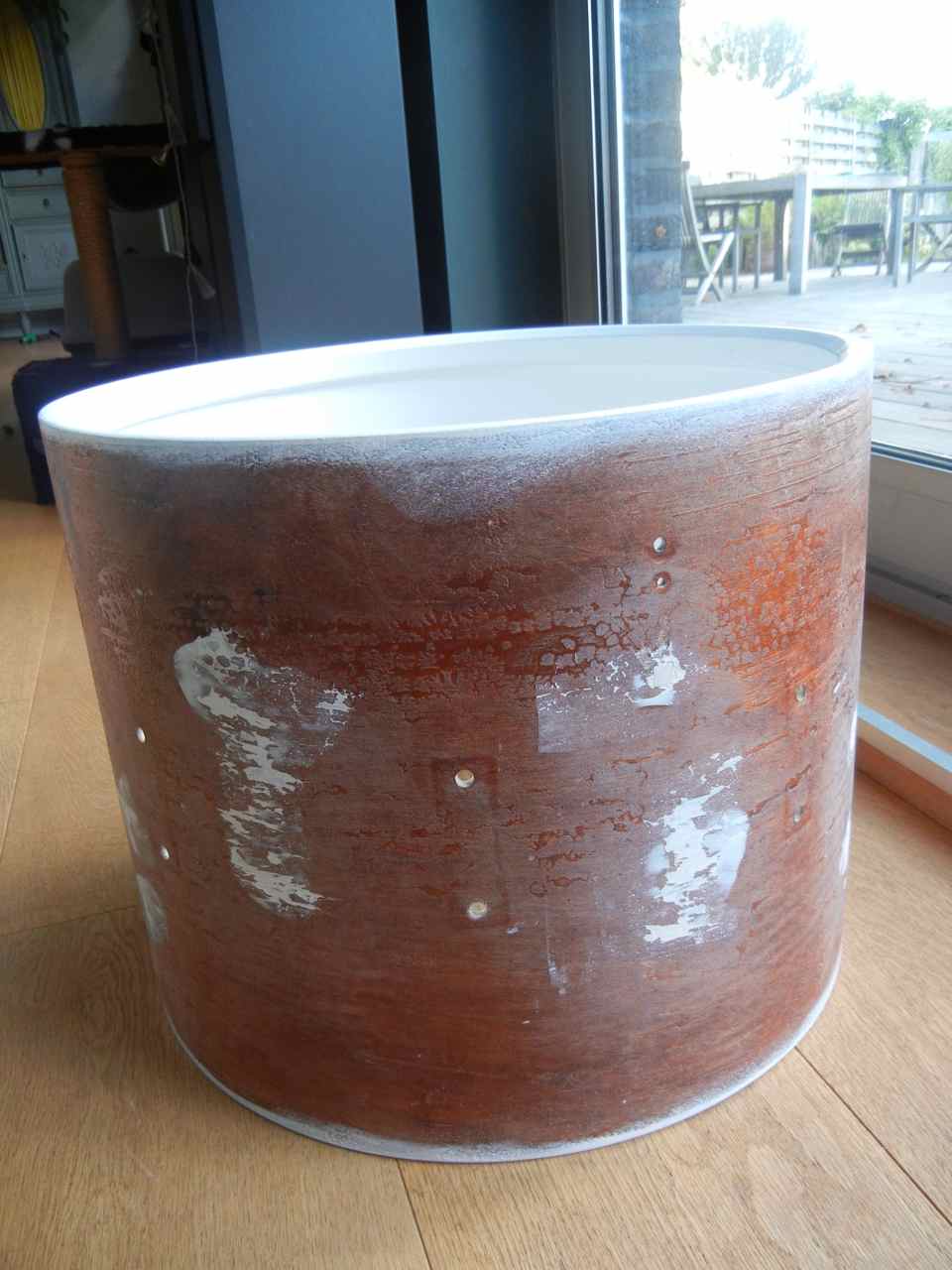

I've uploaded some pictures of the ready to wrap shell.

Anyway,… some nice pictures of a "real" 15" Club Date floor tom would be highly appreciated.

2 attachments
79.6 kB
65.7 kB
Posted on 12 years ago
#6
Posts: 6170 Threads: 255

on the marchers ive seen, the badge is up top by the muffler. on the true floor toms, the badge is dead center on the 12x15's in most cases.

mike

Posted on 12 years ago
#7
Posts: 6524 Threads: 37

Does the cat photo help ? Ludwig 1964 Club Date cat has the two leggs and badge in the photo, click it, it`s a good size !!

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 12 years ago
#8
Posts: 6524 Threads: 37

The system wouldn`t let me post it !!

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 12 years ago
#9
Posts: 1170 Threads: 108

Does this catalog photo help, Stef? It's from 1960...do you know what year your floor tom is?

Aaron

[IMG]http://www.vintagedrumguide.com/images/ludwig_sets/club_date/1960_club_date.jpg[/IMG]

- EMD
Posted on 12 years ago
#10
