Ludwig 1123-1 Hi Hat with Speed King Type Linkage?

Posts: 1685 Threads: 529

Greetings,

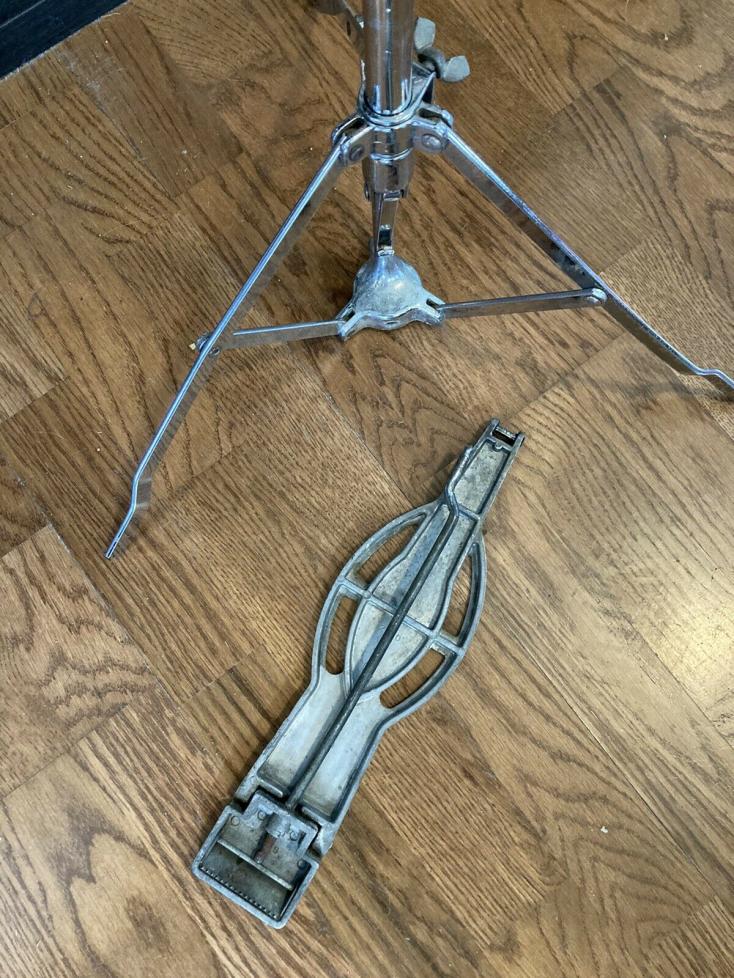

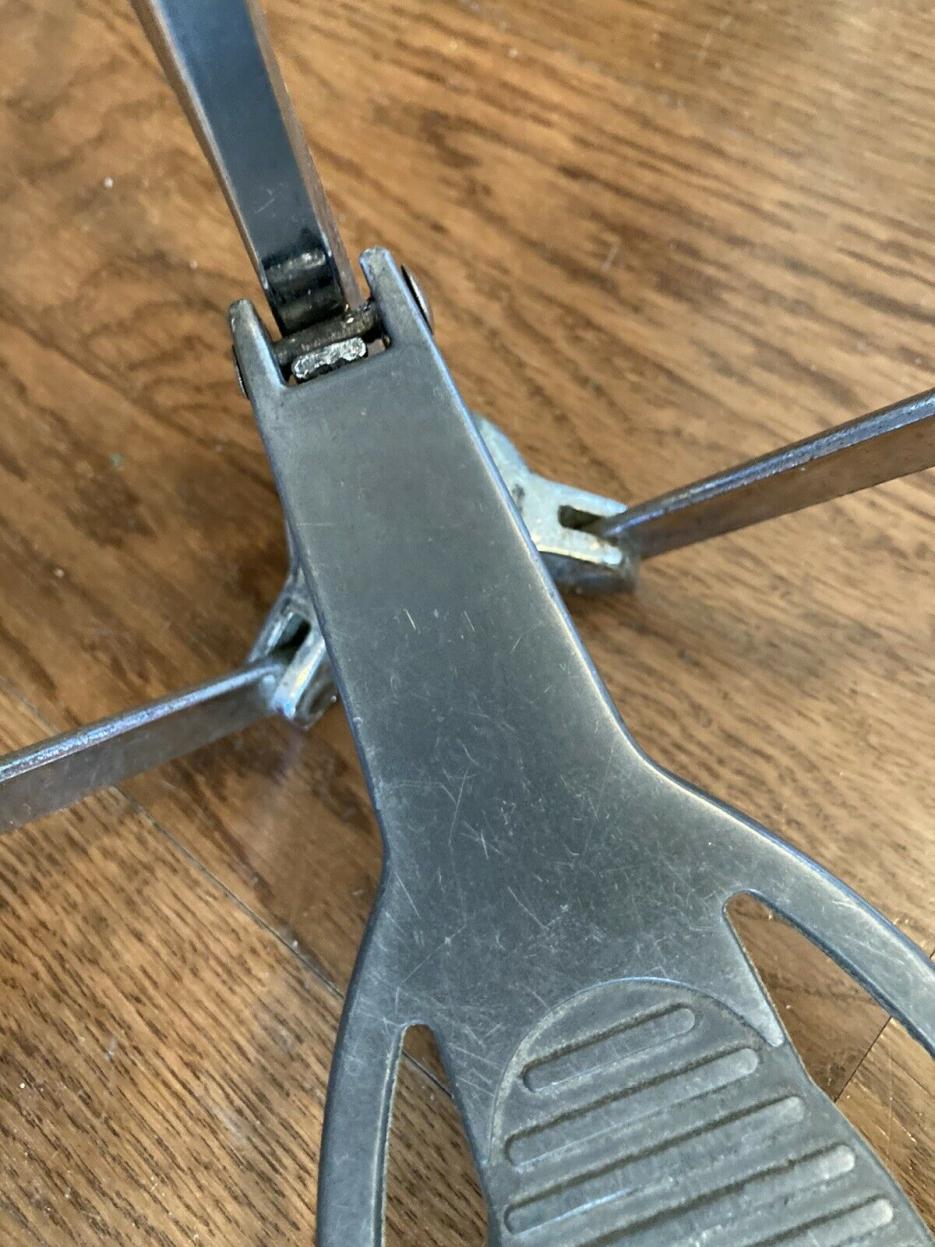

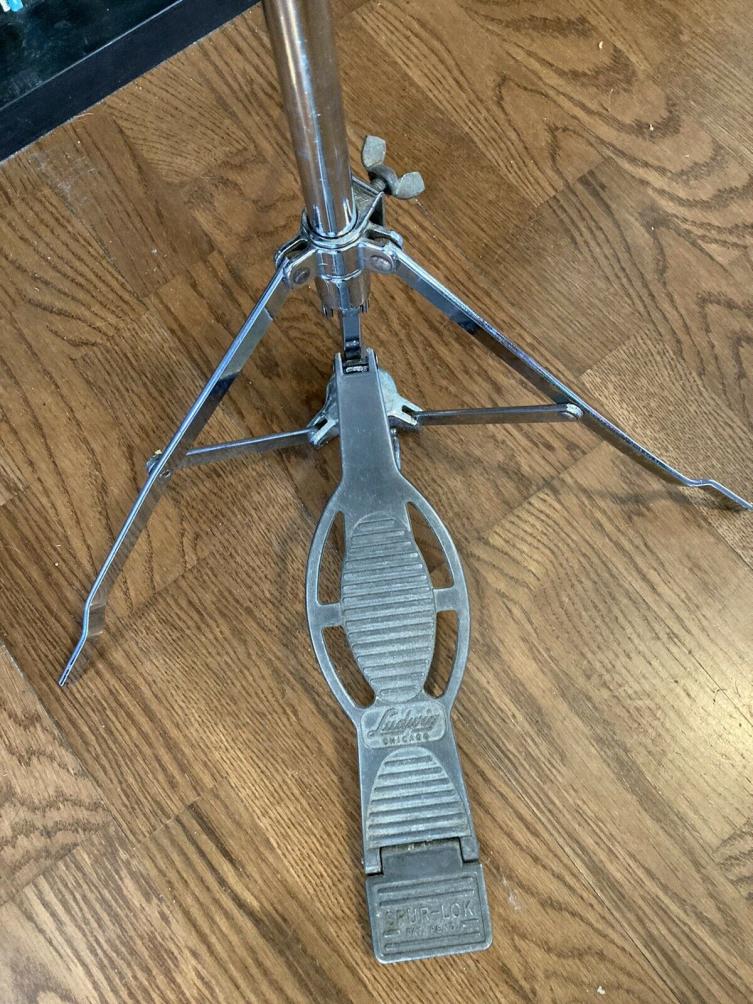

This is the first time I've seen a "regular tripod" 1123-1 Hi Hat stand that uses a Speed King type linkage, where the pedal completely comes detaches from the stand itself. Has anyone else ever seen one? I know the Ludwig 1121 flat base model uses the Speed King type linkage, but I've never seen one on an 1123-1. I would say it's a DIY job, but the rivet/pin holding the metal "hook strap" on the stand looks original.

Thanks for your input!

V

Posted on 3 years ago
#1
Posts: 106 Threads: 6

OEM hi hat and pedal

1 attachments

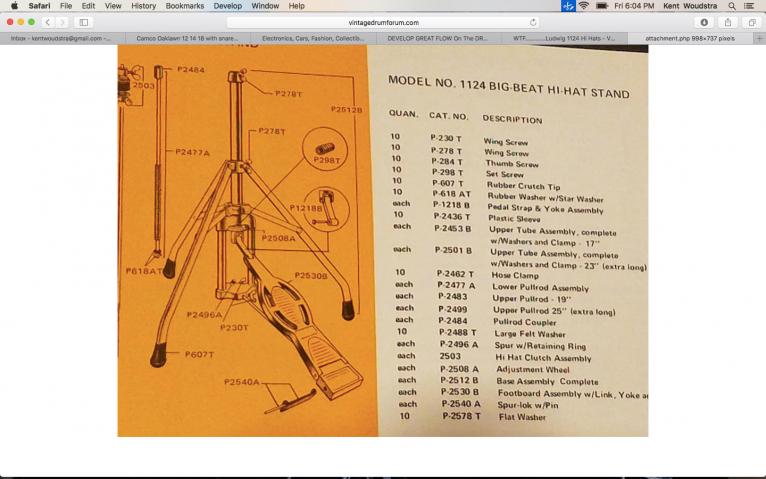

1124 parts diagram.jpg
49.8 kB
1968 Ludwig Super Classic kit Blue Oyster Pearl
22, 13, 16, 14x5
1968 Ludwig Hollywood kit Blue Oyster Pearl
22, 12, 13, 16
A Zildjian cymbals (50's-70's)
Posted on 3 years ago
#2
Posts: 5550 Threads: 576

The after ringo hi hat ?

April 2nd 1969 scarfed pink champagne holly wood and 65/66 downbeat snare, and , supra same year very minty kit old pies
66/67 downbeat with canister
Super 400 small round knob
1967 super classic obp





once the brass ceases to glitter, and the drum looses its luster, and the stage remains dark, all you have left is the timbre of family.
Posted on 3 years ago
#3
Posts: 2010 Threads: 19

I've never seen one like that, cool idea though.

Posted on 3 years ago
#4
Posts: 580 Threads: 10

I think someone modified that link so they could remove the pedal for transport and storage. Also could have been a replacement that someone didn't close back up. The replacement links came with the top part already installed and a new rivet to install it on the pedal. Someone might have just pried open the bottom part of the link and called it a day. The end of the link is square. The link on the Speed King is rounded for ease of assembly. If that hi hat were made like that, they would have rounded over the end as well.

Other people would have seen those in the wild if they every made them like that.

Posted on 3 years ago
