Luddy guys: what is this????

Posts: 485 Threads: 112

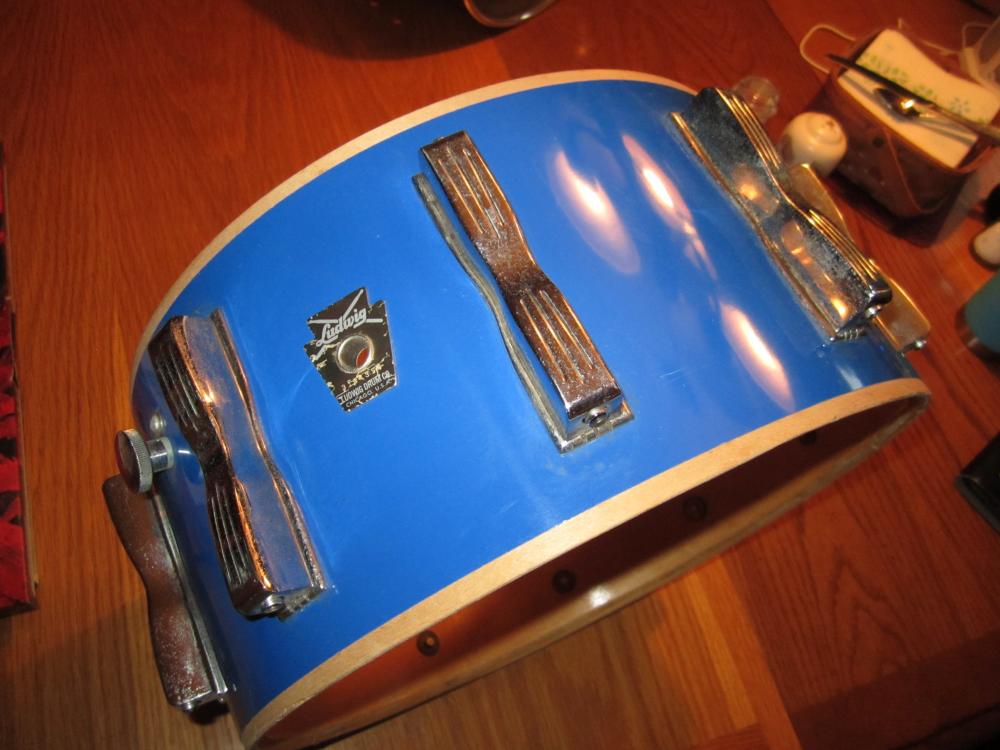

I came into several Ludwig drums from a school auction and this was included. From several of the projects you all have helped me through in the past few years, this is my first true venture into fixing up Ludwigs.

Can you Ludwig aficionados save me some research and let me know what this is and what I need to put on it to fix it up to make it period correct. I've looked in the snare gallery and can't seem to find something similar. It appears to have a "transition" badge but embarrassed to say I'm not truly sure what that means.

I know I've come to the right place-so lay it on me Luddy guys! No such thing as too much information if you have the time to elaborate. Dean

Posted on 5 years ago
#1
Posts: 1077 Threads: 3

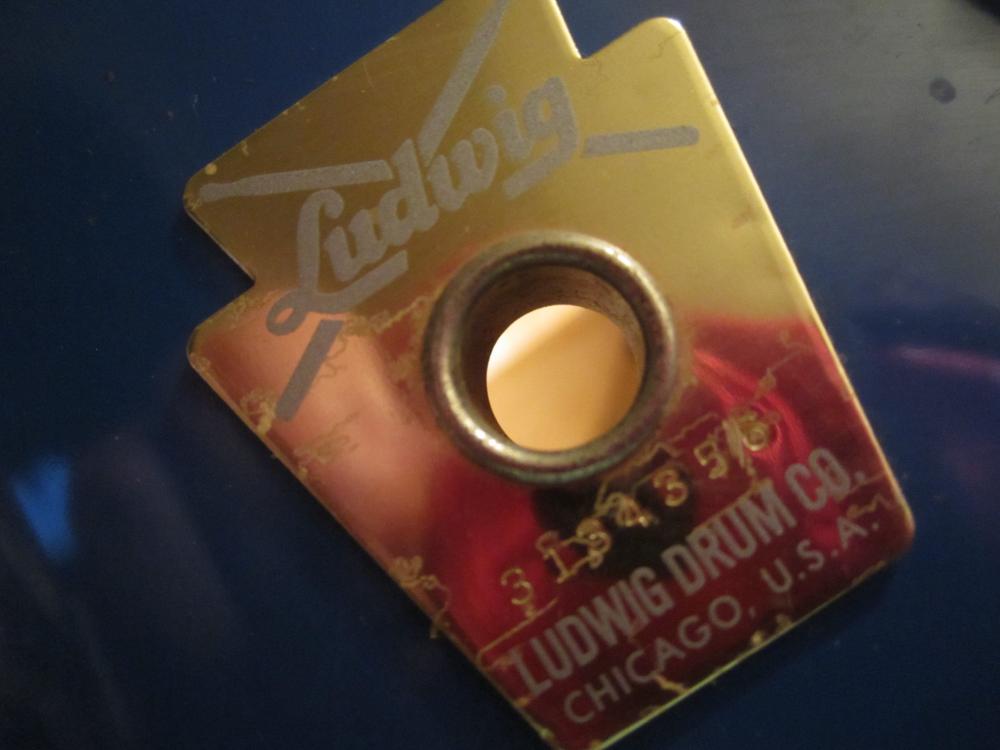

Not a transition badge. Large keystone-Chicago ~'83-'84 per Rick Gier's book.

Posted on 5 years ago
#2
Posts: 10714 Threads: 579

How many lugs are on this snare drum?

Your drummers not much good is he!? What you need is someone that's as good as me. ! John Henry Bonham !!
Posted on 5 years ago
#3
Posts: 485 Threads: 112

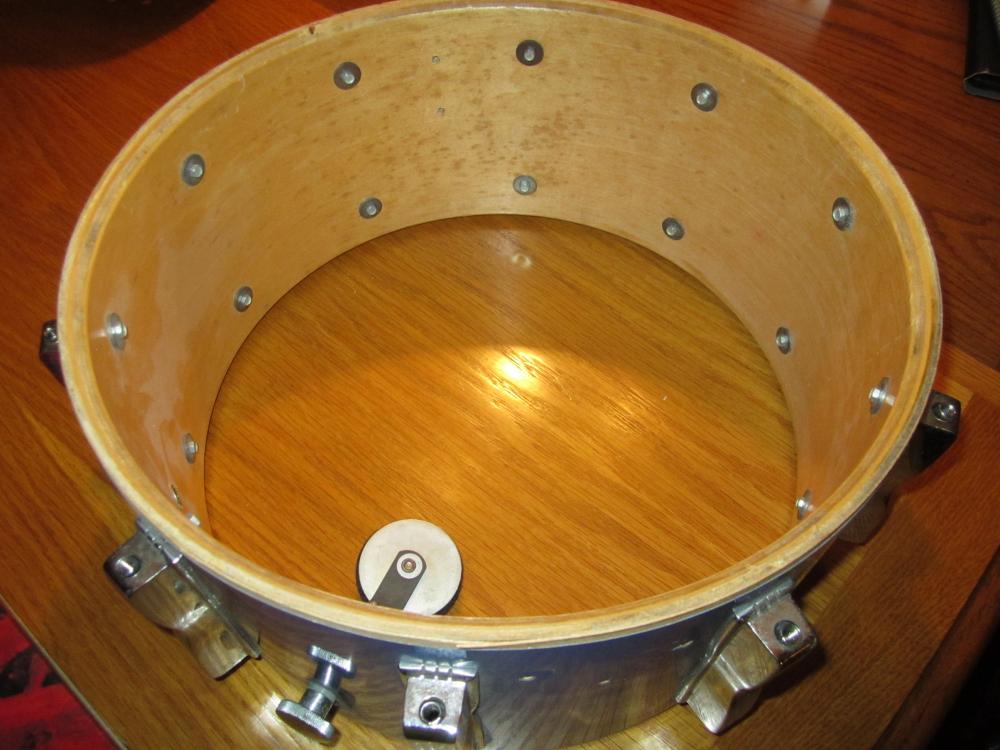

Snare has 10 lugs. [Attachment: 125895]

1 attachments
86.3 kB
Posted on 5 years ago
#4
Posts: 6524 Threads: 37

I'm thinking lc403 Classic.

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 5 years ago
#5
Posts: 6524 Threads: 37

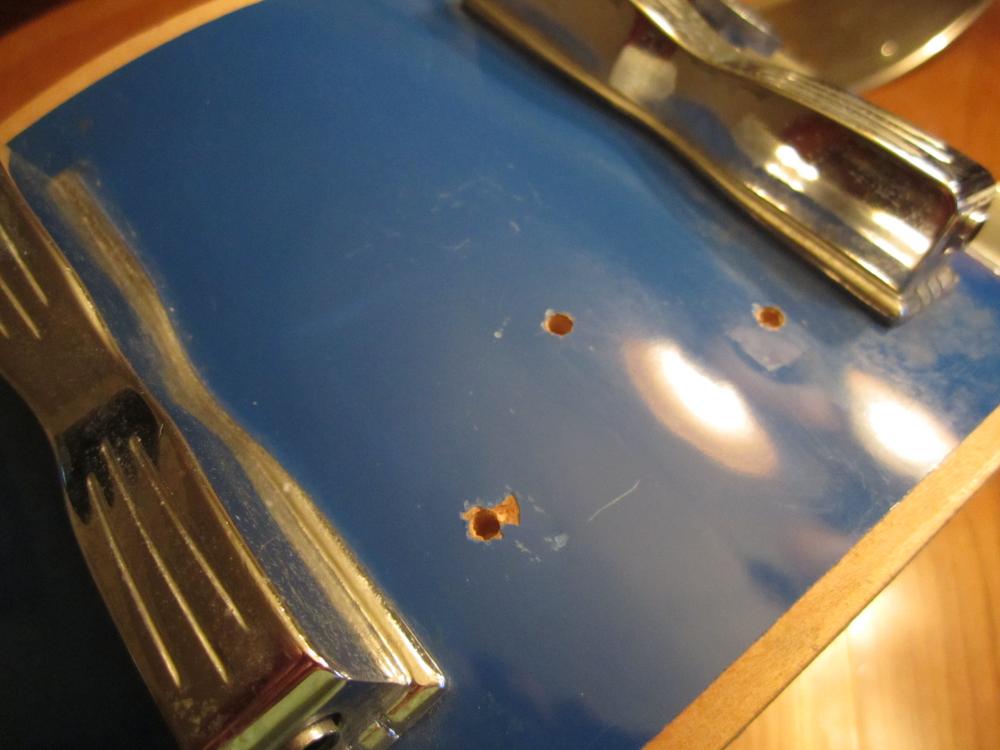

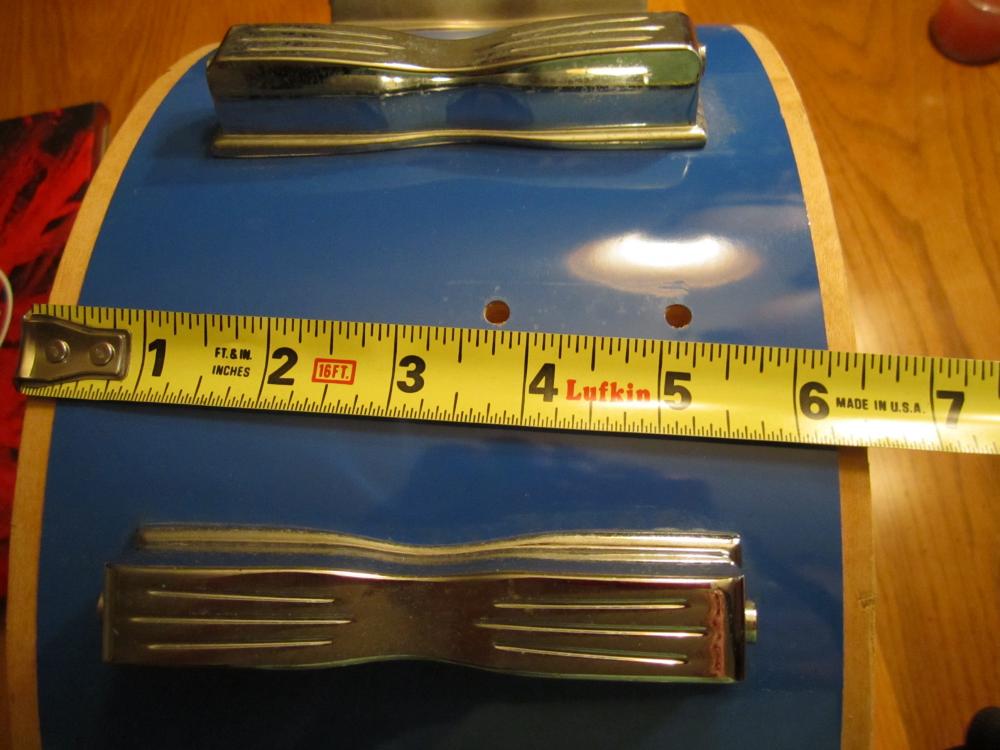

It has three holes for ?????

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 5 years ago
#6
Posts: 804 Threads: 9

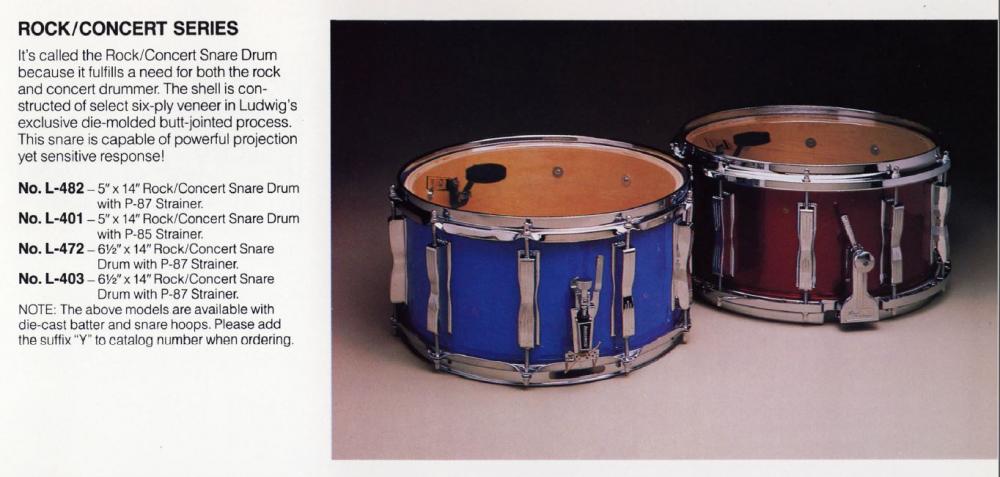

OddBall was really close on the ID. It's actually a L472 Rock/Concert snare.

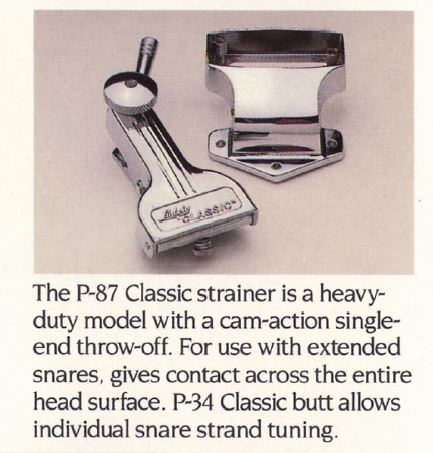

The three holes are configured for the P-34 butt (paired with my favorite P-87 throw!!!).

EDIT: Configuring the snare with the P-87/P-32 would make it a L403.

Posted on 5 years ago
#7
Posts: 6363 Threads: 223

From Hoppy

OddBall was really close on the ID. It's actually a L472 Rock/Concert snare.The three holes are configured for the P-34 butt (paired with my favorite P-87 throw!!!).EDIT: Configuring the snare with the P-87/P-32 would make it a L403.

Actually, Ludwig made a typo with the L403. It should say it comes with the P85, not the P87.

During this time period, all P87 strainers were matched with the P34 butt. The P85 was matched with the P32. I have a 1961 Super Classic snare drum with the P87/P32 configuration, but this wasn't offered in the 80's.

-Mark

Posted on 5 years ago
#8
Posts: 404 Threads: 23

From slingerfan

Not a transition badge. Large keystone-Chicago ~'83-'84 per Rick Gier's book.

Yes, this is the very last Chicago badge. Off to Monroe NC soon afterwards.

John/Levelpebble

Tama Superstar 81 Aqua bop
Rogers Cleveland BDP (x2), Silver bop, Champagne, Black/Gold Duco, WMP, Blue sparkle; Dayton Red Onyx;
Camco Oaklawn 12 14 20 5x14 Tuxedo WMP
LW 59 SC Blue Sparkle, WMP
WFL Gold Sparkle SC, WMP Compacto
Gretsch 49/50 Broadkaster WMP
Fibes Copper Forte
Remo MasterEdge Bop, Gold Crown, Mondo
Slingerland Conway Black Satin
70's MIJ Del Ray, my first and fav ok I'm lying here
Way Too Many Snares, She Says
Posted on 5 years ago
#9
Posts: 6524 Threads: 37

It looks like a void got crushed tightening a lug too. that may or may not vibrate or hum.
