help with mounting of ludwig rail consolette Last viewed: 6 seconds ago

Loading...

i have just purchased a new modern ludwig rail consolette

Ludwig Sliding Rail Single Tom Holder - 9.5mm L-Arm - LR2983MT

for a bass drum that had the diamond plate mount.

i have wrapped the drum in black oyster pearl finish

i want to mount the new consolette, is there a re mounting template or paper

guide that shows exactly where this should be mounted in relation to the keystone badge.

I think placement is key, and since this is a players kit of moderate value (i mean the diamond plate holes are still there) i just want to drill once, not twice

any suggestions? thanks

Check out my ludwig drum collection!

http://waynes-drums.webs.com/
Posted on 12 years ago
#1
Loading...

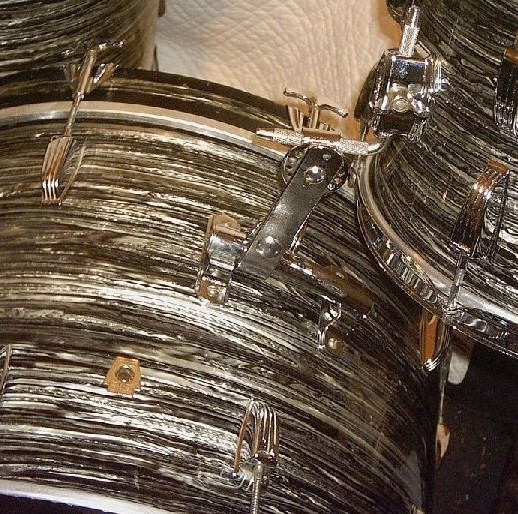

Guess you couldn't go wrong with the stock position pictured here...[Attachment: 54560]

1 attachment
137.4 kB
-No Guru... still learning more every day-
Posted on 12 years ago
#2
Loading...

Thank you.... I just wondered if maybe there was apaper template or if any one the exact placement. I can always eyeball it from a picture....thanks again!

Check out my ludwig drum collection!

http://waynes-drums.webs.com/
Posted on 12 years ago
#3
Loading...

I agree with mchair...that's a good stock position to drill. There isn't a template that I know of.

- EMD
Posted on 12 years ago
#4
Loading...

I saved that photo only because I'm doing the same thing... rewrapping a Transition badge bass and tom in BOP, and installing an Ludwig consolette. My 20" bass was originally virgin, but I drilled and installed a Rogers swivo mount (like Ringo) back in the '70s. Oh, the STUPID things we did when we were young!

-No Guru... still learning more every day-
Posted on 12 years ago
#5
Loading...

Guys, I'm at work right now... but when I get home (around 4:00 p.m. CST), I can post exact meaurements if you like. I've recently built two custom kits that needed the exact Ludwig rail mount positioning, and I have a 60's Ludwig keystone 22" BD that I took the measurements from.

BTW -- I use a cloth tape measure (find in your wife's sewing kit) to take these measurements so that it stays with the round of the outside of the drum. I drill a small "pilot" hole right at the center point, then use the correct size speed bit to drill the hole. I drill about half-way through from the outside, then finish from the inside -- that way no splintering. Also, I normally drill the shell before I re-wrap (but that's not necessary). Oh yeah -- let the drill do the work (i.e., don't get impatient and force the drill through!!).

After wrap, I take the same speed bit and start drilling the wrap from the inside, enough to get the "pilot" hole through the wrap right in the center. Then use the speed bit to finish from the outside. Again, don't get impatient and in a hurry.

Hope that all made sense...

Bill

Bill
Cherryvale, Ks
"Redrums - Ks" on FB and Reverb
(also "billnvick" on eBay)
