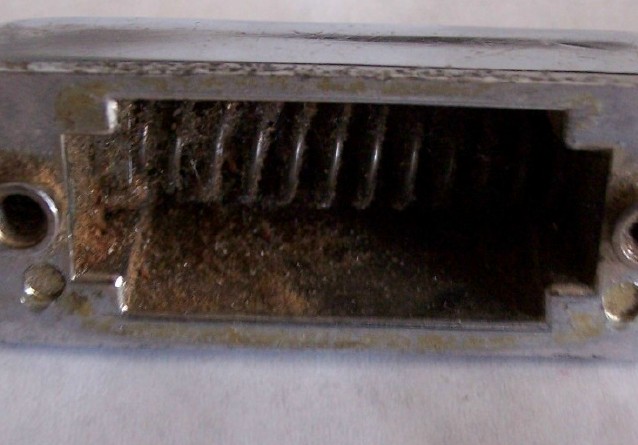

Hello To All,question For You Guys..what Year Did Rogers Used These Lugs See Photos...the Best I Can Tell The Set I Have Is A Buddy Rich "celebrity" 4 Pc,drum Size Is 14x22,toms Are 9x13,16x16 With A Wood 5 1/2x14 Snare,,rogers Catalog Shows The Set With A Dyna-sonic Snare The One I Have Is Not.snare To The Best I Can Tell Has Orchestra Strianer...shells Are Grey Inside With No Paper Tags..any Info..i Will Try To Post Photos Of The Hole Set In A Day..thanks Mike
Only Admins can see this message.
Data Transition still in progress. Some functionality may be limited until the process is complete.
Help With I.d Of Rogers Lugs
Posts: 5227
Threads: 555
Loading...
Posted on 16 years ago
#1
Posts: 2809
Threads: 32
Loading...

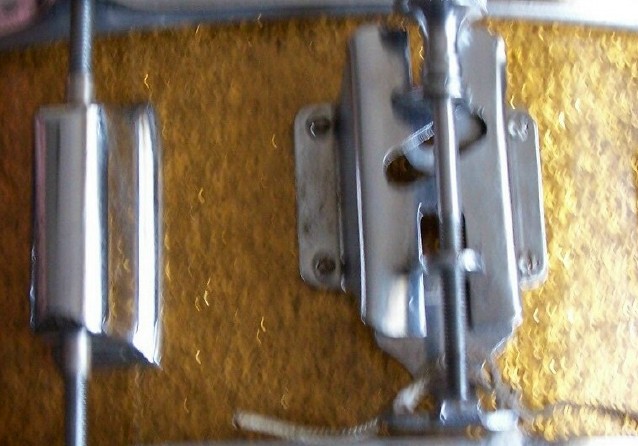

Thats the Beavertail lug, although your pic leaves much to the imagination. 1963 onward. Flat gray drums with beavertails would have tags that say Cleveland (63-66) And then Dayton (66-67/8). Rogers snare drums should be 5 inches in depth, not 5.5. Dynasonics have ten lugs. Icant tell what that strainer is.
Rogers Drums Big R era 1975-1984 Dating Guide.
http://www.vintagedrumforum.com/showthread.php?t=24048
http://www.vintagedrumforum.com/showthread.php?t=24048
Posted on 16 years ago
#2
Posts: 2406
Threads: 55
Loading...
Ploughman!...
That's the "Orchestra" model strainer... although we can't see if there is a "twist" at the top of the lever arm... but my guess would be that there is. Having said that:
This strainer... ( with the "twist" ) ... was used from 1960 on, although it's name was also changed to the "Universal" in 1960. The thing is, I can't seem to find one drum that has the "Universal" strainer AND Beavertail lugs, with the exception of the 1964 "Student Model" snare drum... but that is of course, a 6 lugger. More pics will help to dial this in of course!
Tommyp
Posted on 16 years ago
#3
Posts: 5227
Threads: 555
Loading...
Hi,i Will Try To Post More Photos Today If I Can Make Them Small To Fit..as For The Snare Its A 8 Lug,inside Drums[all] Are Grey,with No Paper Tags??... I Did Not Think That Beaver Tail Lugs Look Like That Rounded [[not Slope At End ]]. Is The Ones I Have On Set Are They Earlyer Ones??thanks Mike
