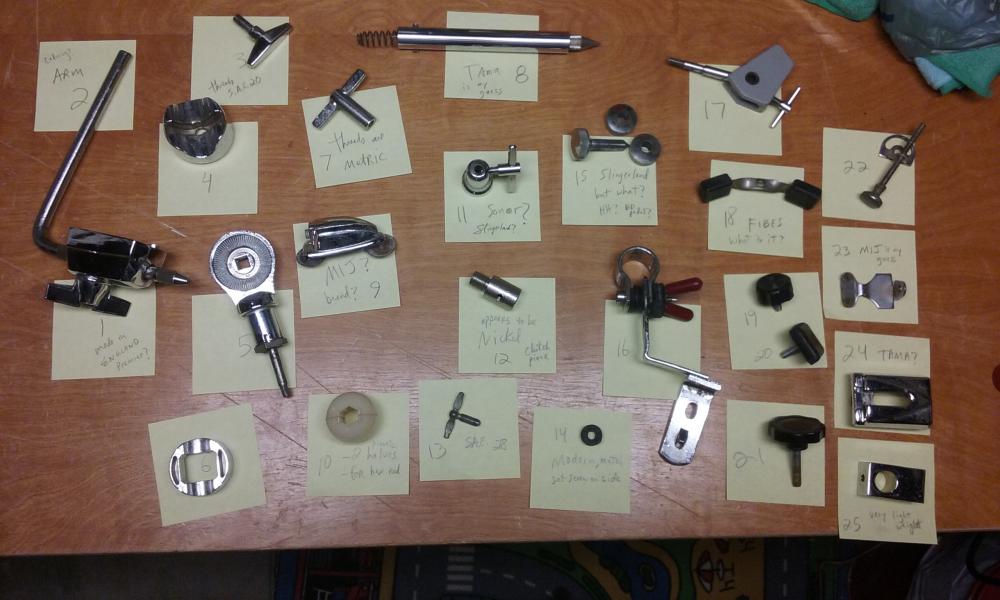

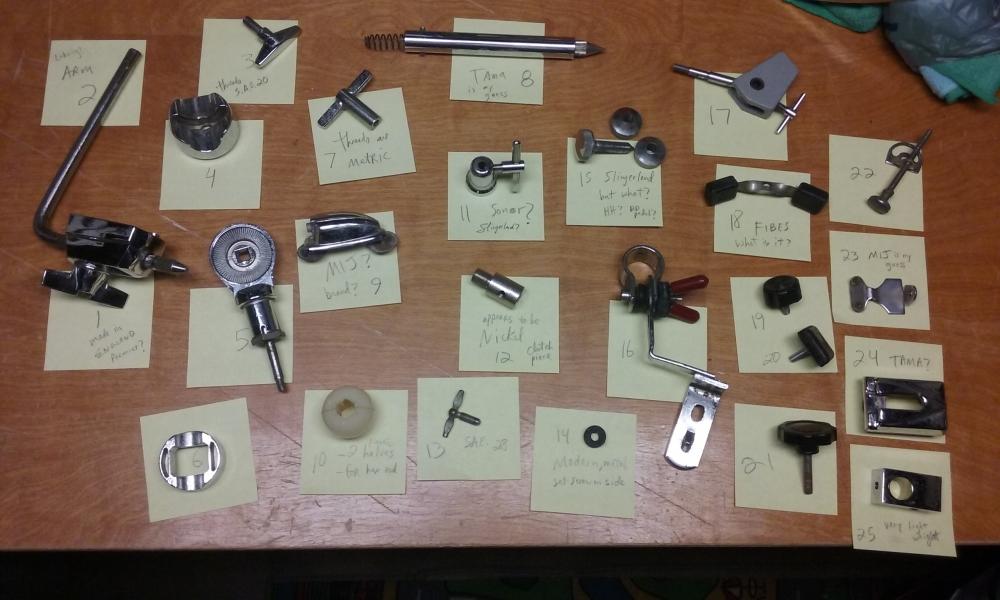

Please help identify these parts. I shot a couple pics, but also shot a video which gives a much better look. The 2 pics are pretty much the same shot - but one might be better quality than the other so I am including both.
The video is the best look at this stuff.
Please reference the part(s) by the part number.
Thanks so much for any help!
[ame="https://www.youtube.com/watch?v=gn6BYP7n2UY&feature=youtu.be"]Drum parts video - unknown parts - for ID - YouTube[/ame]
11 looks like top part of a Slingerland hi hat clutch. Dynamo stand think it was.
15 is a Slingerland spur for the same hi hat with lock. 2nd lock could be from one of the hi hat spur feet. They were adjustable with the locks.
13 looks like a clamp wing nut from a Ludwig speed king pedal. My WFL version has the same one.
#8 is a Fibes bass drum spur
#10 is a Fibes hex ball that sits inside mount casings
I just noticed #18, a Fibes "bumper". It goes on a top snare drum lug by the ride tom to prevent ride tom rash from the snare
5 is a Ludwig Atlas cymbal stand top. 13 is I believe a Slingerland BD pedal hoop clamp screw.
5 is a Ludwig Atlas cymbal stand top. 13 is I believe a Slingerland BD pedal hoop clamp screw.
Actually #5 is a Ludwig Hercules or EARLY Modular series cymbal stand tilter. Early Atlas (as opposed to the currently available ones under the same name) stands were smaller in size.
#1 and #3 appear to be 1970's Tama pieces. #4 is a Ludwig modular piece, part of and add-on cymbal or tom holder. A large 1" eye-bolt would have passed through it on one side.
You folks are freaking amazing! I just stared at it all.
-Erik
