diagram of baseball bat muffler?

Posts: 524 Threads: 75

I need to install 3 bbb mufflersbut since I didn't remove them, I don't know how they get installed.

Does anyone know where I can find an exploded diagram of one?

Thanks in advance!

Jeff

1960s Ralston (Star) set in Red Agate Pearl 12/12/16/20
1961 Ludwig Cocktail Lounge drum 24 x 16 in blue sparkle
1966 Ludwig Hollywoods in Sky Blue Pearl 12/13/16/22
1971 Ludwig Super Classics in Blue Sparkle 13/16/22
1976 Ludwig Vistalites in Blue 13/14/16/22
70s/80s Ludwig orphans in Black Cortex "Bonham" style 14/16/18/20/26 (B/O Badges)

Many snares
Posted on 10 years ago
#1
Posts: 6170 Threads: 255

I did a step by step for a member here awhile back. cant recall if it was on the forum or in a pm though. i'll look and see if I can find it.

mike

Posted on 10 years ago
#2
Posts: 6170 Threads: 255

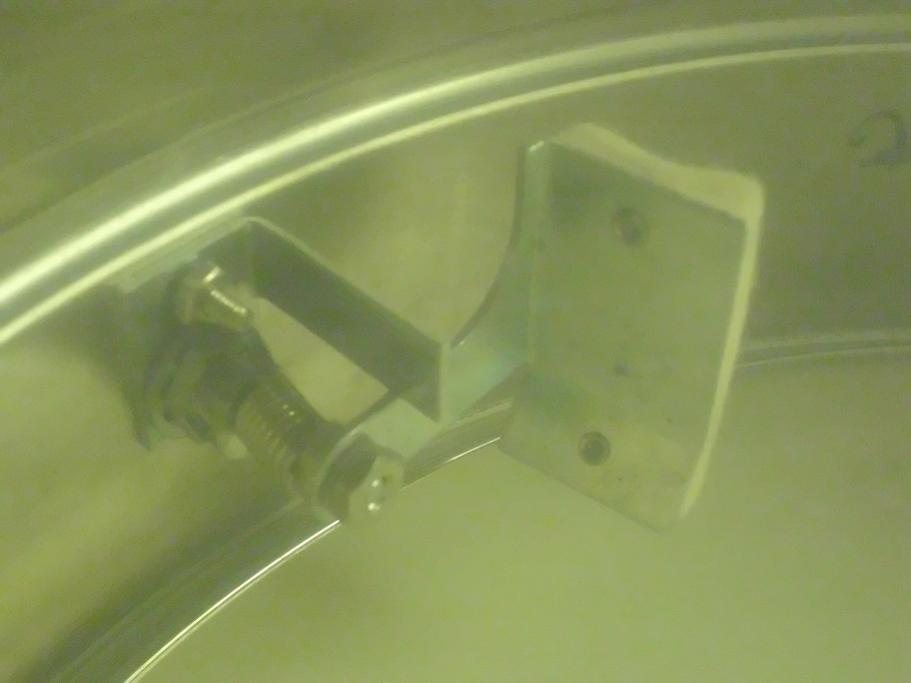

here is a closeup pic of one of mine if that helps any in the meantime.

mike

1 attachments
bat install.jpg
32.7 kB
Posted on 10 years ago
#3
Posts: 6170 Threads: 255

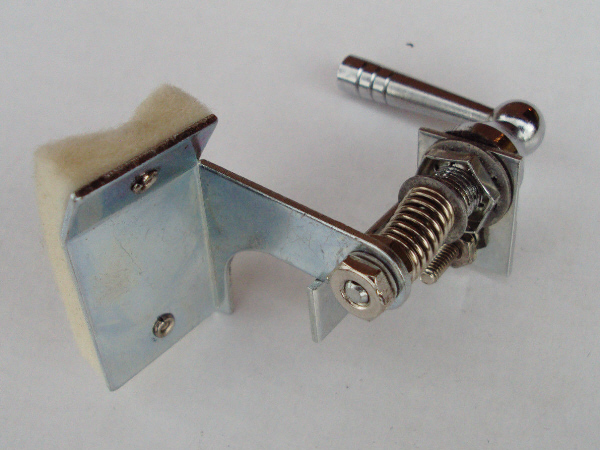

another pic from here on the forum. pm if I can help you with the install in any way. make sure you mount the arm with the felt so that it engages the head with the angled portion of the felt. it can mount the other way and wont work.

mike

1 attachments
bat muffler closeup.jpg
143.2 kB
Posted on 10 years ago
#4
Posts: 524 Threads: 75

Thanks Mike! Looks like I have to remove everything off the threaded rod in order to install?

1960s Ralston (Star) set in Red Agate Pearl 12/12/16/20
1961 Ludwig Cocktail Lounge drum 24 x 16 in blue sparkle
1966 Ludwig Hollywoods in Sky Blue Pearl 12/13/16/22
1971 Ludwig Super Classics in Blue Sparkle 13/16/22
1976 Ludwig Vistalites in Blue 13/14/16/22
70s/80s Ludwig orphans in Black Cortex "Bonham" style 14/16/18/20/26 (B/O Badges)

Many snares
Posted on 10 years ago
#5
Posts: 6170 Threads: 255

yes. that's correct. once you get it apart, mount the bracket to the shell and then start adding the threaded rod and additional parts.

mike

Posted on 10 years ago
#6
Posts: 9005 Threads: 266

Mike,

They should have pinned your original tutorial!

John

Too many great drums to list here!

http://www.walbergandauge.com/VintageVenue.htm
Posted on 10 years ago
#7
Posts: 6170 Threads: 255

I think I must have done it via pm which explains why I can't find it. we should be able to get him up and running though.

mike

Posted on 10 years ago
#8
Posts: 1342 Threads: 71

Patience is the key the first few times you have to do it.

Posted on 10 years ago
#9
Posts: 524 Threads: 75
