Custom Offset Swivomatic Bass Drum cymbal rod Last viewed: 1 hour ago

Posts: 535 Threads: 67

You ever feel cramped for room while playing a 22" or 24" ride cymbal mounted on a straight shaft Rogers cymbal rod? Anything larger than a 20" on my kit and I feel like I need some more room to stretch out. I'm a small guy too so I can only imagine what the bigger guys feel like!

I'm sure I'm not the first to do this, but today I got a little creative and fashioned an offset cymbal rod out of an extra hex floor tom leg, one long tension rod and a Swivomatic tilter.

I wanted to share the steps taken to make one in case anyone else would like to create one for their self.

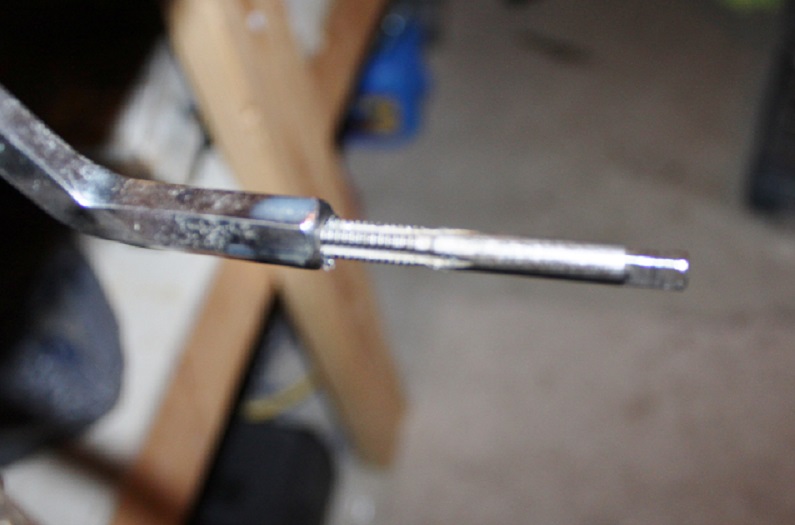

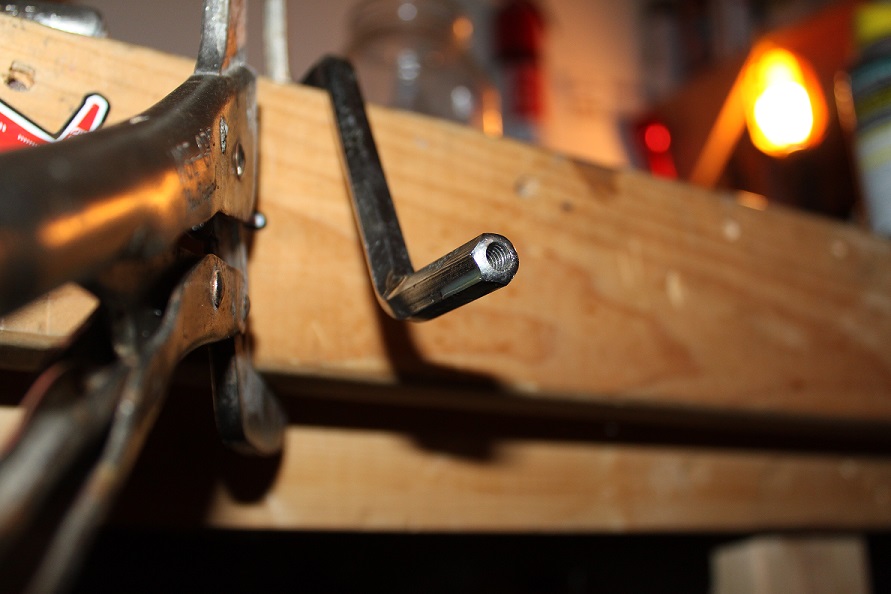

Drill hole and tap with 12-24 threads to accept a standard tension screw.

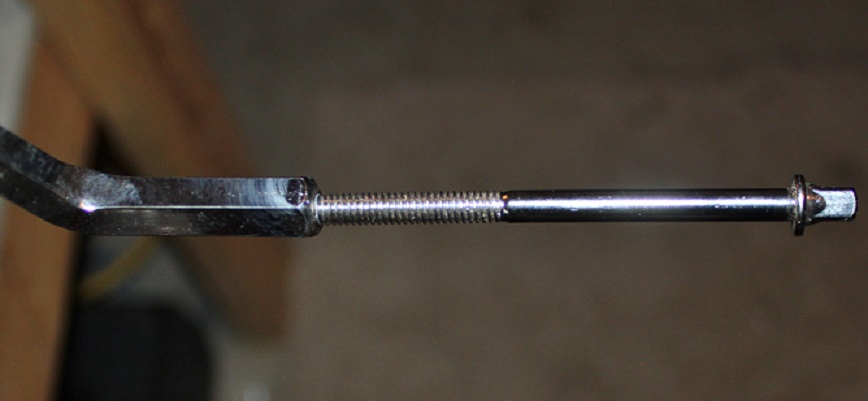

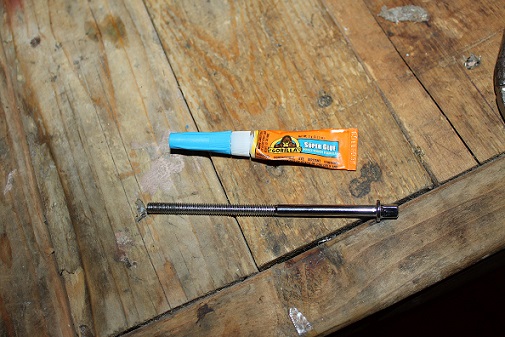

Clean hole and screw. Apply Loctite or Super glue to prevent from backing out. Insert screw until it bottoms out.

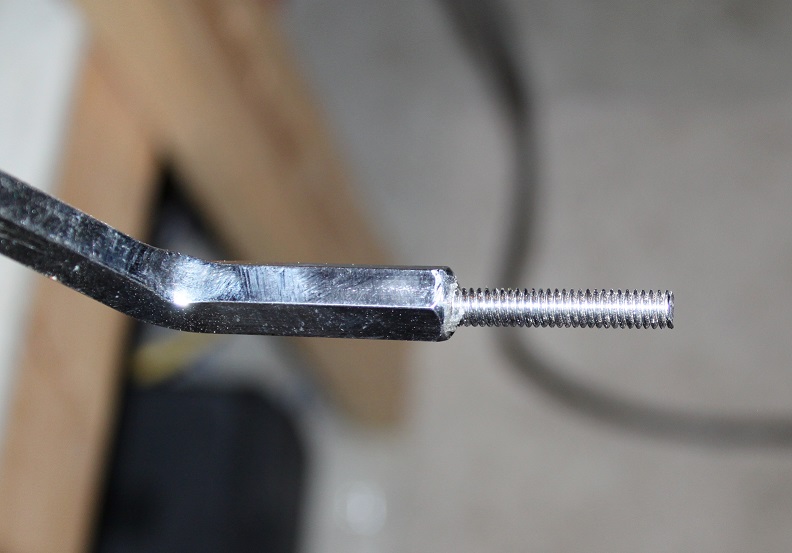

Cut off excess screw to the correct length to allow Tilter body to seat onto hex rod 1/4".

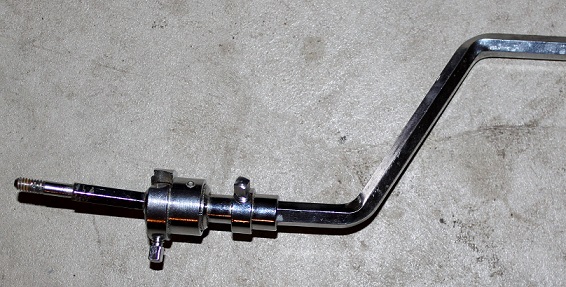

Tighten set screw on tilter and you're done!

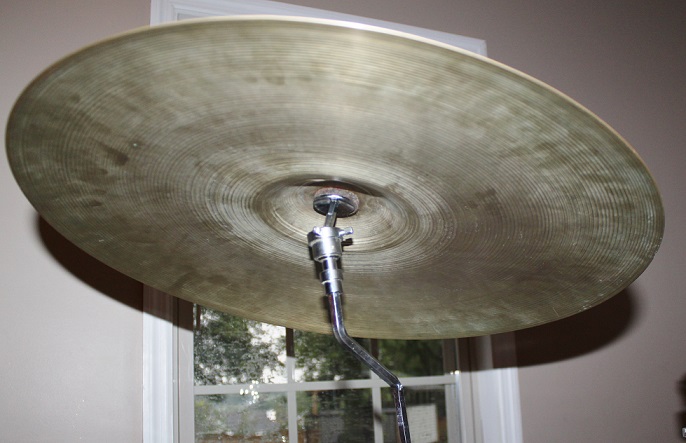

Pretty simple and works great. This gives roughly 3" of offset in any direction within 360 degrees.

Posted on 10 years ago
#1
Posts: 535 Threads: 67

A few more pictures:

Posted on 10 years ago
#2
Posts: 5356 Threads: 87

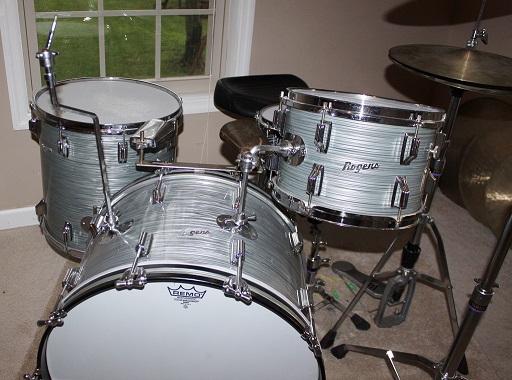

That is a great idea Randy. Very nice work~! BTW beautiful Rogers kit too. ;)

Glenn.

Not a guru just havin fun with some old dusty drums.
Posted on 10 years ago
#3
Posts: 1461 Threads: 75

I`m sure a number of us are saying"why didn`t i think of that"?Excellent idea Randy and thanks for sharing how you made it with us.Love the Rogers set too!

Wayne

1967 Rogers Cleveland Champagne Sparkle
20,16,13,13.
1967/68 Rogers Dayton Champagne Sparkle
20,16,13,13.
1966 Rogers cob 7 Line Dynasonic Snare.
1967 Rogers "Humberto Morales" Timbales.
1980 Ludwig B/O badge 14x 6.5 Black Beauty Snare.
1980 Ludwig B/O badge Red Cortex
22,22,18,16,15,14,13.
1988 Sonor "Horst Link" HLD 590 14x8 Bronze Snare
Posted on 10 years ago
#4
Posts: 430 Threads: 15

I've done that by using 2 tilters on a regular 18" hex rod.

Posted on 10 years ago
#5
Posts: 535 Threads: 67

Thanks guys. Two tilters does the same job but I had to improvise with what I had laying around at the time. Looks a little odd but works great! If I ever need the FT leg back I will just back the screw out or cut flush.

Posted on 10 years ago
#6
Posts: 2753 Threads: 132

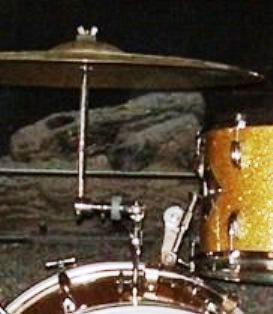

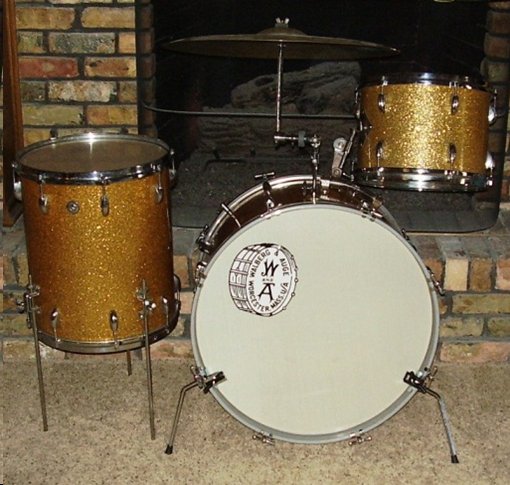

I used a Rogers Swivomatic cymbal extension arm to do essentially the same thing when combined with a simple "disappearing" cymbal rod. We drum nerds can cobble together some interesting pieces of hardware.

No matter how far you push the envelope, it is still stationery.
Posted on 10 years ago
#7
Posts: 455 Threads: 77

Great idea!

I find that a swivo extension tilter does the trick.

SC
