Hey all!

Thanks to all forum members who have posted on restoring, collecting and maintaining vintage made in Japan drums! I finished restoring a SUPERCHEAP blue sparkle kit and wanted to pass on what I learned for those who haven't done something like this yet.

First, my drums are 3 ply w/ re-rings and while the floor tom and kick sound amazing, the snare and hi-tom were a little warped due to the incredibly thin shells and left something to be desired...

First, for all the drums I took off all hardware, lugs etc and sanded the interiors. It is important to go with the grain (hoop to hoop on mij's) as the wood is quite thin on some drums and may splinter. After a good sanding, I went back over the insides with 0000 steel wool, although some extra fine sandpaper would have worked here too.

I then polished the wraps of the drums with products not unlike car polish. I cleaned all the rods, washers and lugs with the very fine steel wool. On a couple things, like screws, nuts and washers I used a product call 'wink rust remover' that worked wonders.

After reassembling, I was totally happy with the floor and kick drum, but the hi-tom and snare left a bit to be desired.

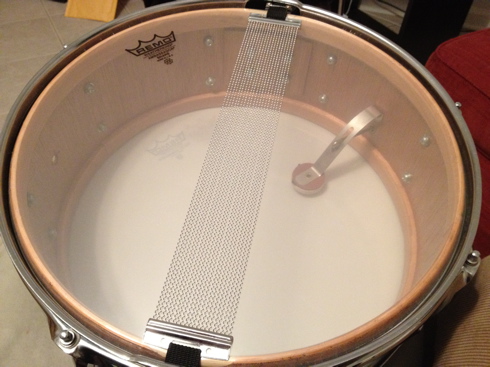

So, I used some deft spray lacquer (mentioned by another forum member) and did a couple coats on the inside of the snare drum. HOLY MOSES did that make it sound great! It also made the drum appear more attractive too.

I also re-worked the bearing edges a bit and cut a better snare bed, but the lacquer just made this thing sound great. I mainly use a 70's acrolite to play, but after lacquering this snare I've been switching back and forth.

On the hi-tom, I did the same thing, but with less coats. My plan was mainly to brighten the drum up a little, strengthen the wood, but not as much as what I did with the snare drum. Anyhow, same deal, worked like a charm and sounds great.

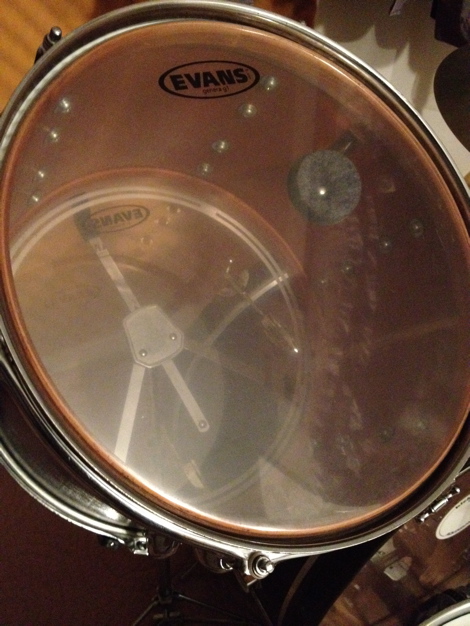

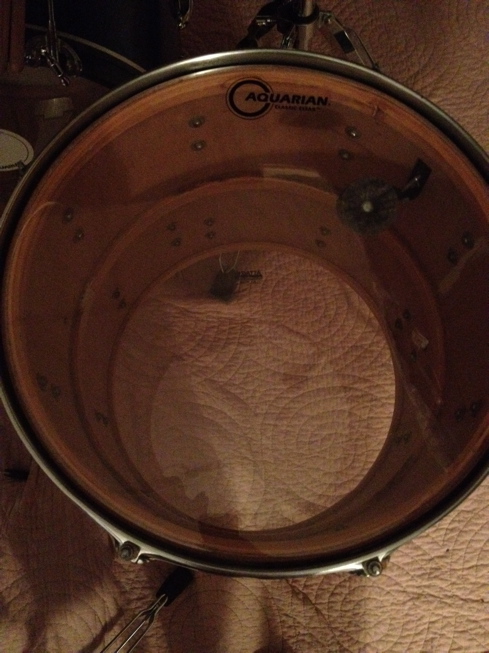

For heads I went with mostly single ply heads (I'd heard this works well on vintage kits) and did a mix to see which ones i liked better. The evans g1 clear head has a nice warm tone to it on the high tom, the aquarian classic clear on the floor sounds clear and bright. For tom reso heads I tried the attack brand-- I highly recommend these heads as a budget alternative to the big 3 drum head companies.

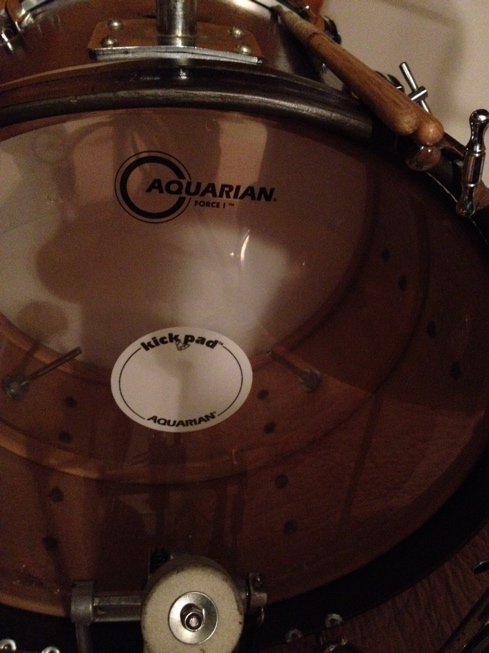

On the kick I went with aquarian force I which has as great sound to it. I usually used superkick II in the past but wanted something more open sounding and this thing sounds great! Something I learned in this process was using a bit of gulf wax (parafin wax) on the edges helped make good even contact with the edge.

The last couple upgrades I did was install a pearl internal muffler (just 4 bucks!!!) into the high tom to match the one on my floor tom. They work great and I'd highly recommend them to anyone. The second upgrade was i sold the slingly style stick saver rims on e-bay and got some used modern ones second hand (blasphemy I know), but they work great and i like em better.

The drums sounded great to begin with, but after all this relatively minor maintenance, and upgrading, boy these drums SING!

So in short, thanks to all the folks who post here giving good info to cheap musicians like me!!! I got a great kit for a great price and had a blast restoring it the last month or so and would not have without all the great info on this site--- thanks.

4 attachments
Posted on 11 years ago
#1
Loading...

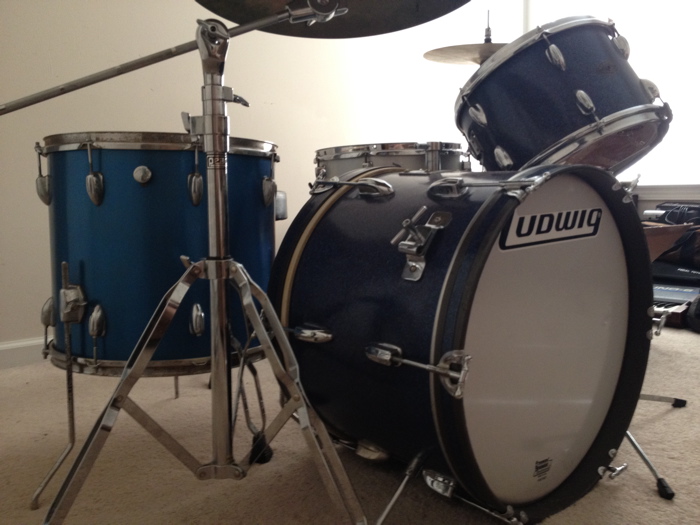

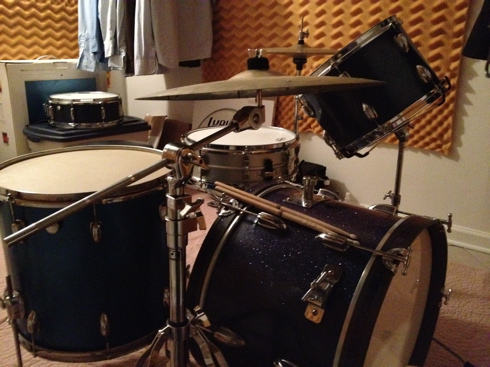

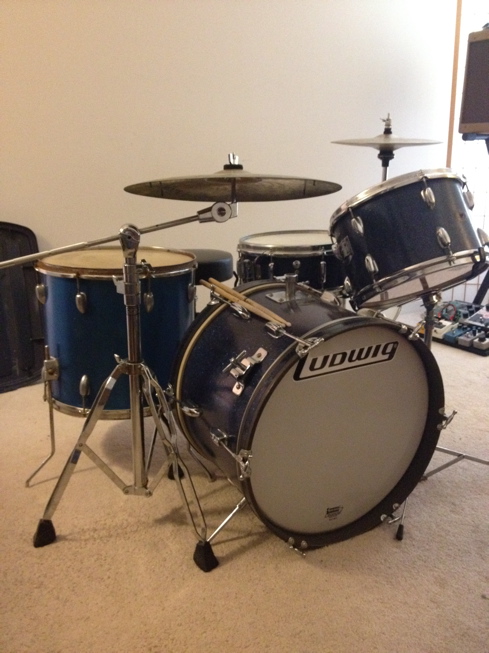

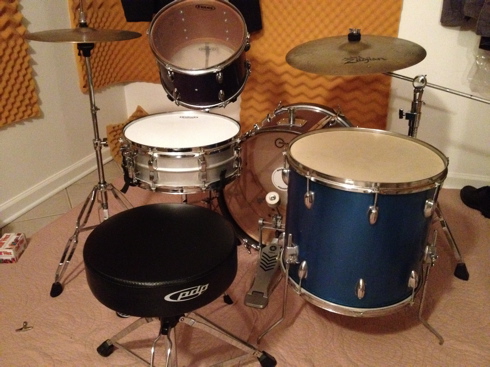

some close up shots of the drums...

4 attachments
Posted on 11 years ago
#2
Loading...

Nice kit and job well done!! Congrats.

Thanks for the pics.

Creighton

Nothing special here but I like them.
Posted on 11 years ago
#3
Loading...

Way to go. Nice work on the kit, as well as the documentation. Interesting about your results with the lacquer in the snare and tom. Have only tried tung oil so far myself, but this also seems to work well. Sounds like you could be doing more of these restos...?

LOGOS - Vinyl Bass Drum Brand Logo Decals
http://www.ebay.ca/usr/barrhavendrum...p2047675.l2559

Barrhaven Drum Guy
Posted on 11 years ago
#4
Loading...

Very nice.

great work

60's Sonor Teardrops & 70s Premier AMs
Sabian
Vic Firth
Remo/Evans

"unless it's vintage, it's just another wooden tube."
Posted on 11 years ago
#5
Loading...

Thanks guys! Tung oil seems to be a nice halfway point between bare wood and a lacquered finish; I may try it in the future. As for more projects? No more for now... But I do find some contenders from time to time...

Posted on 11 years ago
#6
Loading...

The reason you may be disappointed with the 12 is that the edges may need some truing-up. Check it out - or have someone check it out - may need to be re-cut. Then tune to the shell (if you know what I mean), and you should be golden. Being out-of-round is acceptable and does not sabotage the drum - so long as it is within a spec. I have seen diameters (from the extreme edges) differ by as much as 2 or 3 mm - and it was still able to produce a great resonant tone. Many vintage drums are this way (most notably old Ludwigs) and yet sound amazing. I recommend studio rings for these as well.

Great to see someone discover the vintage MIJ secret (of tremendous value).

Best Blessings!

I had a great day! Instead of sleeping in and wasting the day, I got up at 8 and I had all my slacking done by noon!

2Timothy1:7
Posted on 11 years ago
#7
Loading...

Nicely done!

I have done a few of these 3 ply restoration/re-creations and they have all come out sounding amazing. I have either sold or given away each to the exact person/place that needed that kit for that purpose. I also work with the thicker, later shells and get great results for Gretsch type tones. Using orphaned shells, I rework them into playable, giggable kits, mainly coffeehouse and small venue/jungle kits.
