1966 Ludwig Super Classis restoration started.

Posts: 763 Threads: 110
Loading...

Hi folks,

Yesterday I started the cleaning and restoration of the 1966 Black Diamond Pearl Super Classic which I had shipped over from the US last week.

Bass drum: serial: 296139 stamped 14 Feb 1966

Floor Tom: serial 298204 stamped 14 Feb 1966

Tom tom: serial 296288 stamp unreadable

Snare: serial 305168 stamped 30 Apr 1966

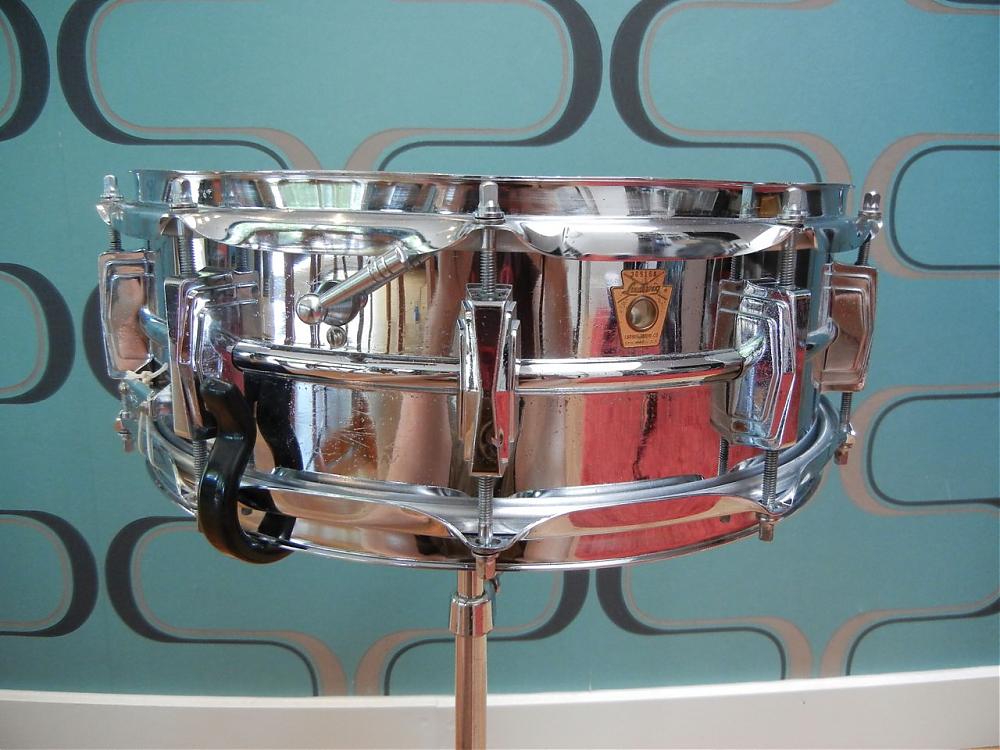

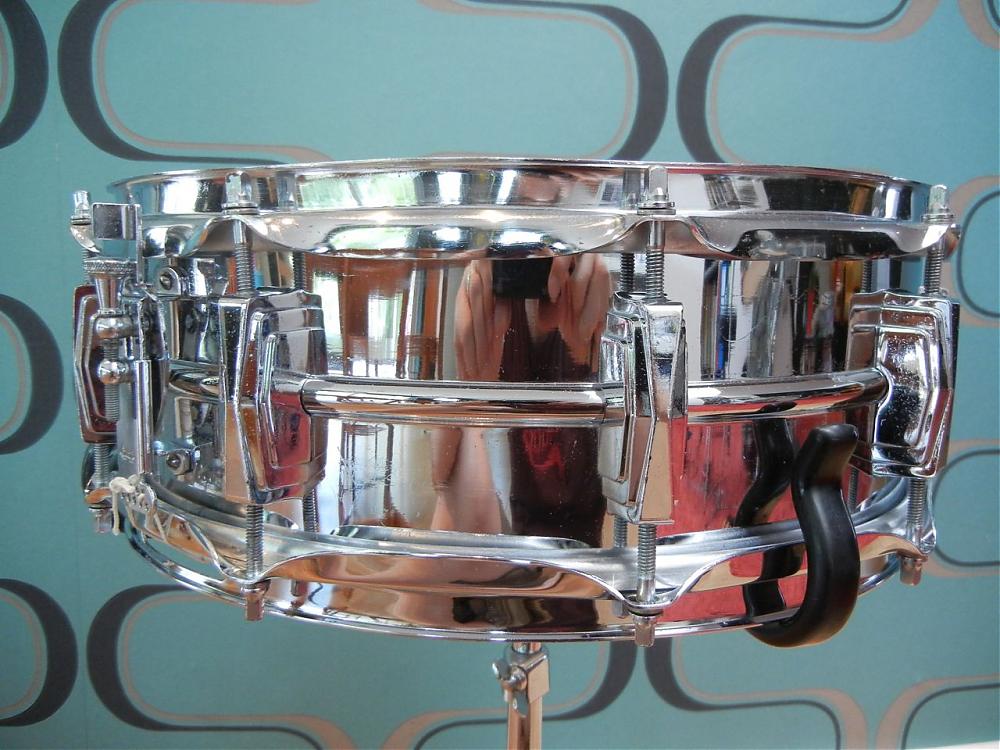

The Supraphonic cleaned up quite nice. There is visible pitting (especially the area behind P-83) and the obvious scratches here and there but all in all, I'm happy with the result. Strainer and muffler are in A+ condition and most important, it sounds fantastic !

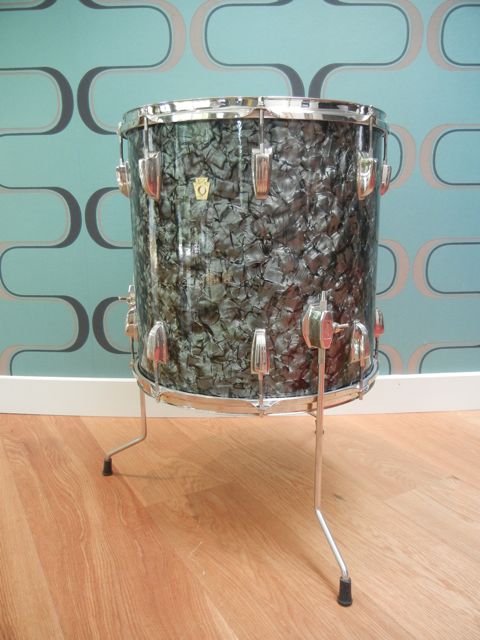

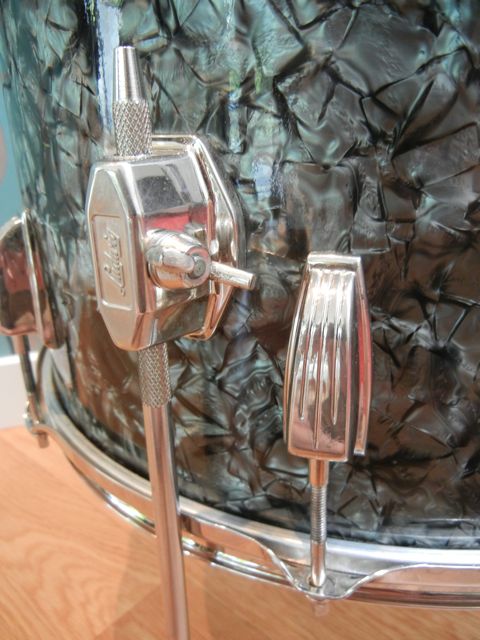

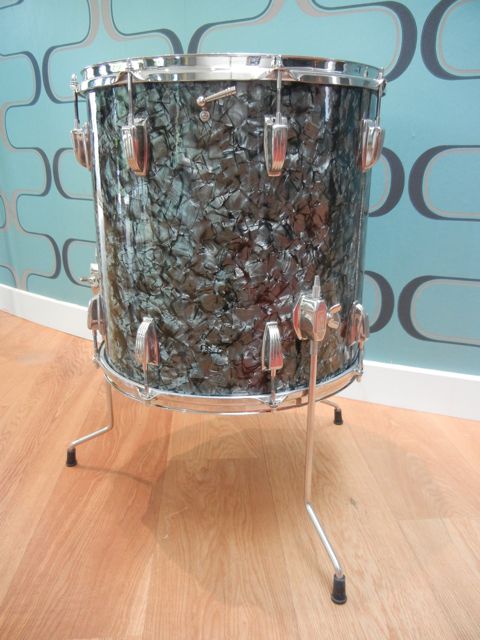

The Floor tom was next. On this one the trickiest part was to take care of the lifting of the seam. It was the first time I did a repair like this but being well prepared and informed (thank you VDF), a fairly easy fix. Once this was all glued back together the only thing to be done was a good clean and polish and boy did it clean up well. All put back together it's hard to distinguish it from new. After a good polish and wax, the black Diamond Pearl came to life in all its glory. The depth and gradations are just spectacular.

Tomorrow, I'll do the 13" tom.

For the bass drum, I'm waiting on the arrival for a piece of BDP to repair the damage probably caused by a heat source. Luckily it's located on the back bottom right but obviously I want to do the best possible job.

All tips and suggestions are welcome on this one.

Later more,....

5 attachments
114.8 kB
100.8 kB
52.5 kB
56.1 kB
62.1 kB
Posted on 13 years ago
#1
Posts: 763 Threads: 110
Loading...

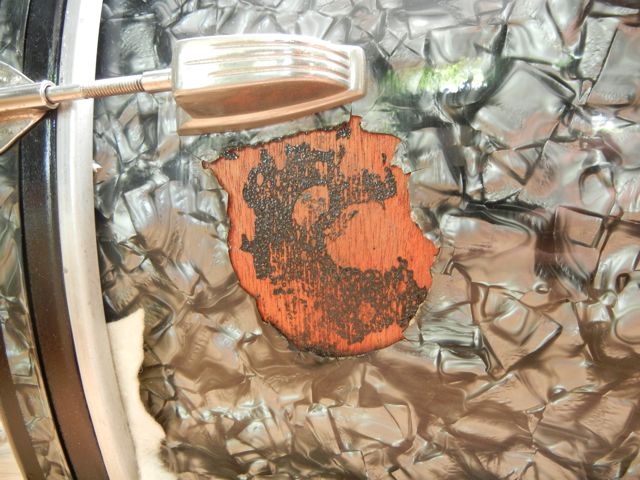

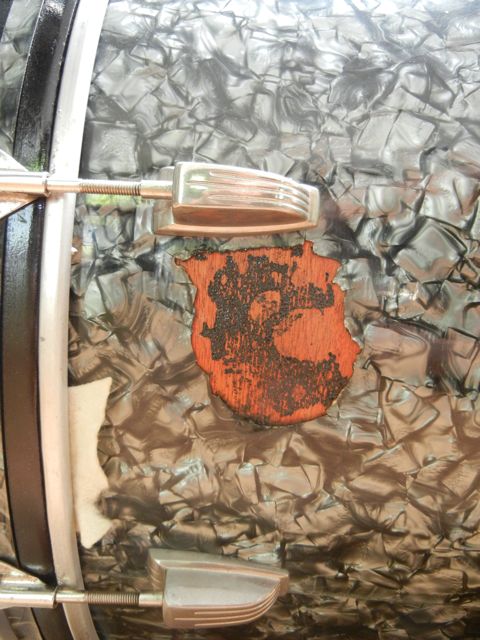

more pics of the damaged bass drum,...

2 attachments
69.2 kB
71.5 kB
Posted on 13 years ago
#2
Loading...

Sorry to say this again, but DUDE I LOVE THAT WALLPAPER!!!

Posted on 13 years ago
#3
Loading...

Stedi... EXCELLENT job!1

Question for you:

What polish and what wax did you use?

thanks,

Retro

Posted on 13 years ago
#4
Posts: 763 Threads: 110
Loading...

I must say the condition of the wrap was overall in very good condition so basically it only needed a good cleaning.

To clean, I used a towel with some hot water and soap to remove 45 year old dirt and dust.

To wax/polish, I used "solvent free" Turtle Wax original.

Further update and pictures of the finished set hopefully by mid next week.
