What should I do with this badge?

Posts: 1836 Threads: 336

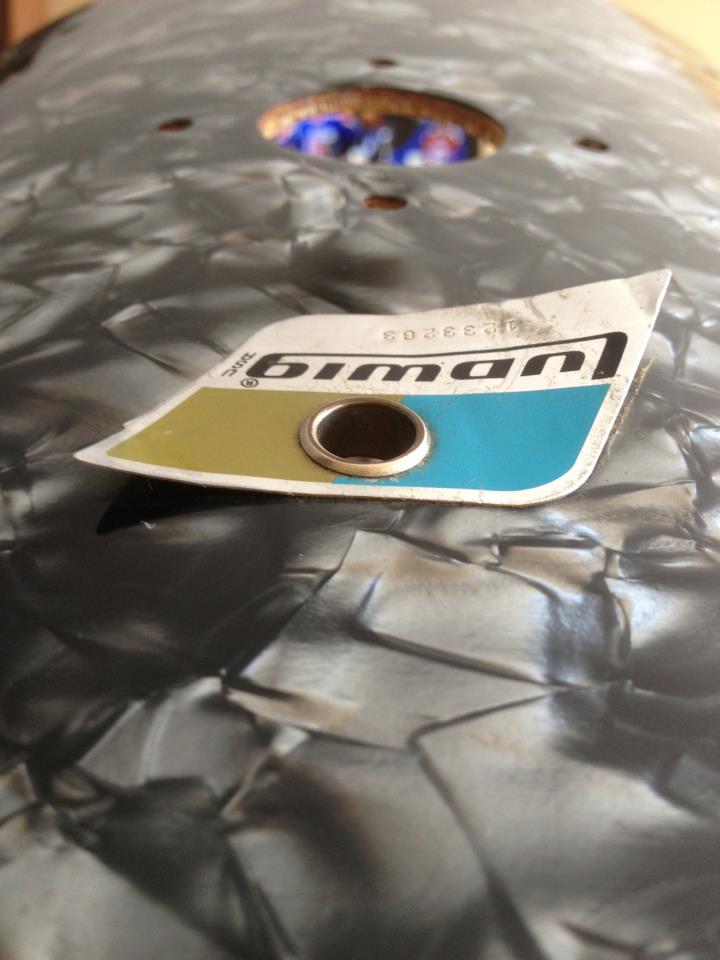

I am working on this kit and the bass drum badge is pulling from the shell. Should I glue this down or leave it for the next owner to decide? I think I should glue it down unless there is another way to push it down. Unless there is a better option what should I use to glue it? Liquid Nails ok?

Thanks

Happy St. Patricks Day!

Curtis

1 attachment
lud badge.jpg
58.8 kB
Posted on 12 years ago
#1
Posts: 3467 Threads: 116

Eric,

If it's the same liquid nails we have down here, it may be a little too thick..

I'd use a clear contact cement.. applied to both surfaces with a credit card or similar.. I'd mask off the wrap as well.. allow it to "go off" as per the instructions on the tube.. and then push together and weight it down..

Cheers

"To Be Sure"

'77 Slingerland 51N,Super Rock 24,18,14,13.. COW 8,10 Concert toms
'69 Slingerland Hollywood Ace
'75 Rogers Dynasonic 6.5 x 14, 10 lug COB
'77-78 Slingerland 6.5 x 14, 10 lug COB
'78-79 Slingerland 5 1/4 x14 8 lug COB
'79 Biman 5 1/4, Acrolite
'82 Slingerland 5 1/4 x 14. Festival COS
'84 Tama MasterCraft Superstar 6.5 x 14, 10 lug Rosewood
'98 Slingerland (Music YO) 6" 10 Lug Maple.. NOS
Zildjian, Sabian , UFIP & Paiste mix.
Posted on 12 years ago
#2
Posts: 5295 Threads: 226

I remember someone posting awhile back that they used a toothpick, or the like, under the badge and slowly started to "bend" the badge back in shape...Push down just ahead of the toothpick to bend the badge back into shape...The toothpick acts like a wedge...Start from the middle and work out to the sides...

Cheers

1976 Ludwig Mach 4 Thermogloss 26-18-14-14sn
1978 Ludwig Stainless 22-22-18-16-14-13-12 c/w 6-8-10-12-13-14-15-16-18-20-22-24 concert toms
1975 Sonor Phonic Centennials Metallic Pewter 22-16-13-12-14sn (D506)
1971 Ludwig Classic Bowling Ball OBP 22-16-14-13
1960's Stewart Peacock Pearl 20-16-12-14sn
1980`s Ludwig Coliseum Piano Black 8x14 snare
1973 Rogers Superten 5x14 & 6.5x14 COS snares
1970`s John Grey Capri Aquamarine Sparkle 5x14 snare
1941 Ludwig & Ludwig Super 8x14 snare
Posted on 12 years ago
#3
Posts: 102 Threads: 11

I will qualify this by saying I've never knocked a grommet out to switch a badge..... but why don't you knock the grommet out and press the badge back to form and reinstall it?

Again, I don't know if that requires any special tools or skill as I have never tried it.

I wouldn't want to buy a shell with the badge glued to it, for what it's worth....

Bryan

1985 Tama Superstar piano black (original owner)
85-86 Tama Superstar piano white
early 60's Trixon Luxus champagne
mid 60's Star WMP
early 70's Star 'silky blue'
early 70's Stewart metallic blue
early 70's Stewart psychedelic lava pearl
late 60's Coronet bronze strata
late 60's Coronet blue diamond pearl
2004 Arbiter Flats Pro
early 70's Stewart Fantasia pearl
early 70's Star blue satin flame
early 70's Star jet black double kick kit
Posted on 12 years ago
#4
Posts: 3467 Threads: 116

Eric,

Here is an older post on the subject..

Cheers

http://www.vintagedrumforum.com/showthread.php?t=11754&highlight=bent+badge

'77 Slingerland 51N,Super Rock 24,18,14,13.. COW 8,10 Concert toms
'69 Slingerland Hollywood Ace
'75 Rogers Dynasonic 6.5 x 14, 10 lug COB
'77-78 Slingerland 6.5 x 14, 10 lug COB
'78-79 Slingerland 5 1/4 x14 8 lug COB
'79 Biman 5 1/4, Acrolite
'82 Slingerland 5 1/4 x 14. Festival COS
'84 Tama MasterCraft Superstar 6.5 x 14, 10 lug Rosewood
'98 Slingerland (Music YO) 6" 10 Lug Maple.. NOS
Zildjian, Sabian , UFIP & Paiste mix.
Posted on 12 years ago
#5
Posts: 818 Threads: 10

Getting replacement grommets is not an issue. I'd remove it, bend it back int shape and re-set it. Treat the cause (bent badge), not the symptom.

From skink

I wouldn't want to buy a shell with the badge glued to it

Agreed! The mfgrs didn't glue their badges down, the curve of the badge and the grommet kept it in place. If you're patient and careful you can safely remove the grommet and reuse it, if not new grommets can be found.

Posted on 12 years ago
#6
Posts: 9005 Threads: 266

Ludwig used an adhesive on the back of B/O badges. The way I straighten out bent badges is, to use a small 1" wide rubber roller. Press firmly as you go over the badge, if the adhesive hasn't dried out completely, it should stick back down on the wrap. If the adhesive on the back of the badge is dried, just add a little glue to the bottom of the badge with a Q-tip or plastic card, allow to cure a little, mask off the wrap outside the badge, then go over it with the 1" rubber roller. Simple, works.

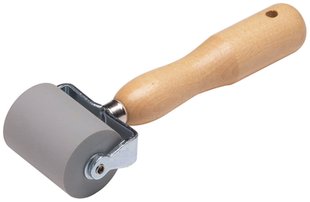

The one in the photo is wider than the one I use, but you get the idea.

John

1 attachment
6.4 kB
Too many great drums to list here!

http://www.walbergandauge.com/VintageVenue.htm
Posted on 12 years ago
#7
Posts: 6524 Threads: 37

I would knock down the price if I saw a badge removed then re-installed.

I`d do the toothpick idea, then tape it off and adhear it with dots of contact cement. The liquid nails might make it lumpy show on the edges.

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 12 years ago
#8
Posts: 1273 Threads: 22

Ugh. I don't know how many times I've seen this happen to this specific badge, over the years. That sucks. If it wasn't originally glued, not sure I'd glue it, now. But I guess no choice. Maybe just a dot of quality adhesive under each pointed area.

Good luck fixing it and don't forget the extra dose of patience.

B

Vintage Drum Fan (Not a Guru)
Posted on 12 years ago
#9
Posts: 6524 Threads: 37

I can see an adheasive line under the badge !i
