Referring to 60s/70s era. From various pictures it appears that the snares should pass thru the rim on the butt side and and just before the rim on the throwoff side. Does that equate to a 14 inch total length-or a little more?
On a similar note-do the original Slingerland snares have indents that the wires are soldered into?
Erich
The Zoomatic strainer came in two styles; up to around 1967, the slider was narrow with two holes to use string. Beginning sometime in 1968, the slider was lengthened and used a clamp bar to use "normal" length wires with filament tape strips. All the drums that used the Zoomatic strainer also used the Leedy extended butt.
For the Zoomatic that had the narrow slider and two holes, Slingerland used the odd half-extended wires that went off the end opposite the Zoomatic. For the newer Zoomatic that used the clamping bar, Slingerland used the same length of wires as all their other 14" snare drums.
While those half-extended wires may be factory correct for the earlier Zoomatic, they can be a pain to set up properly. That, plus finding these wires can be next to impossible! Puresound offered them for a bit, but they were discontinued some years ago! Just use "normal" length wires for all Zoomatic strainers!

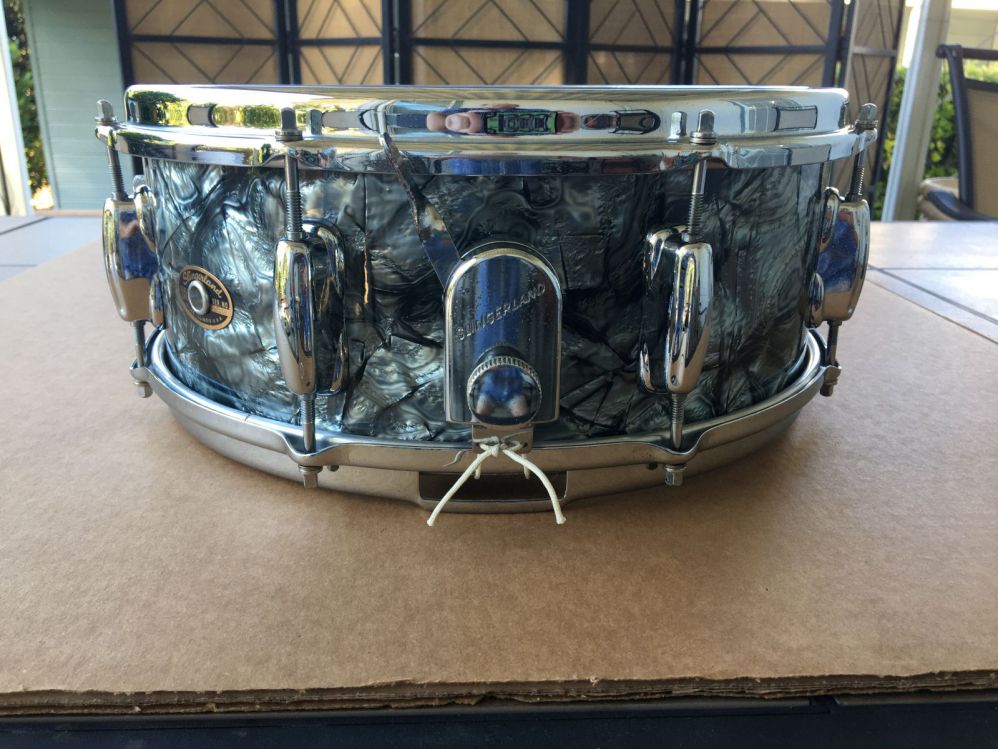

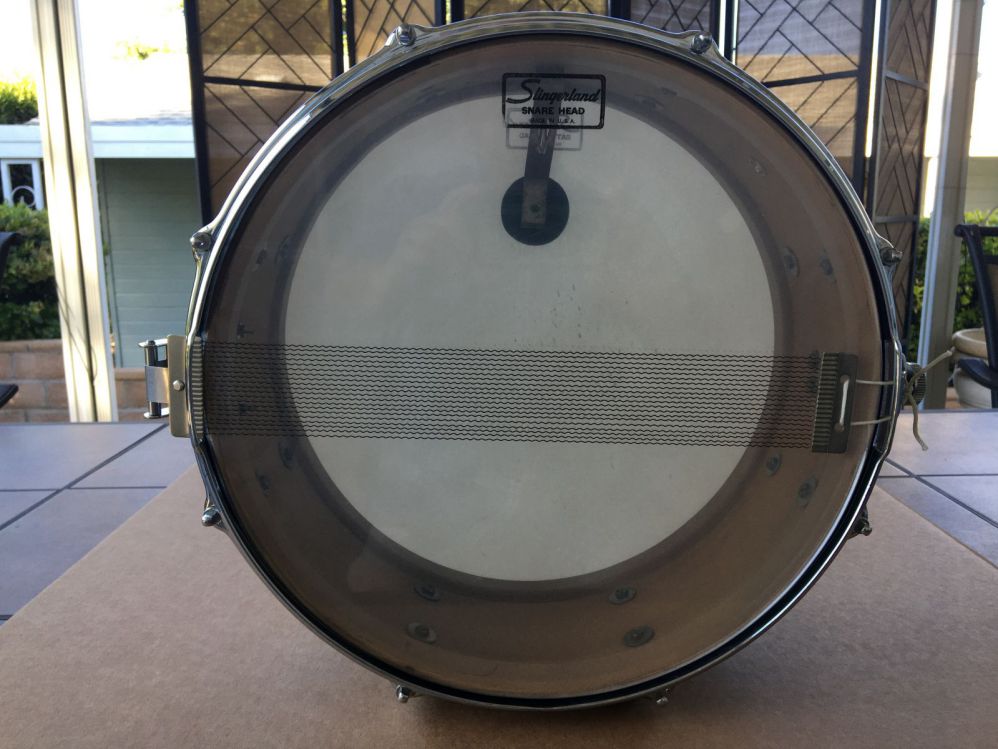

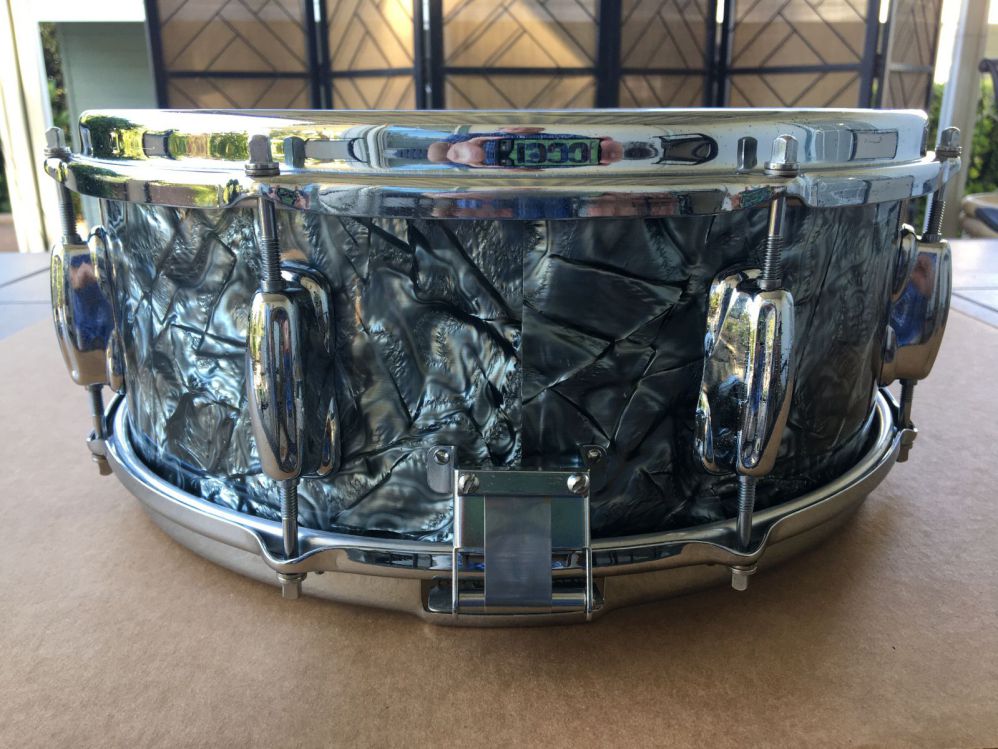

Attached are some pictures of a 1966 Artist I recently sold. It uses the half-extended wires.
-Mark

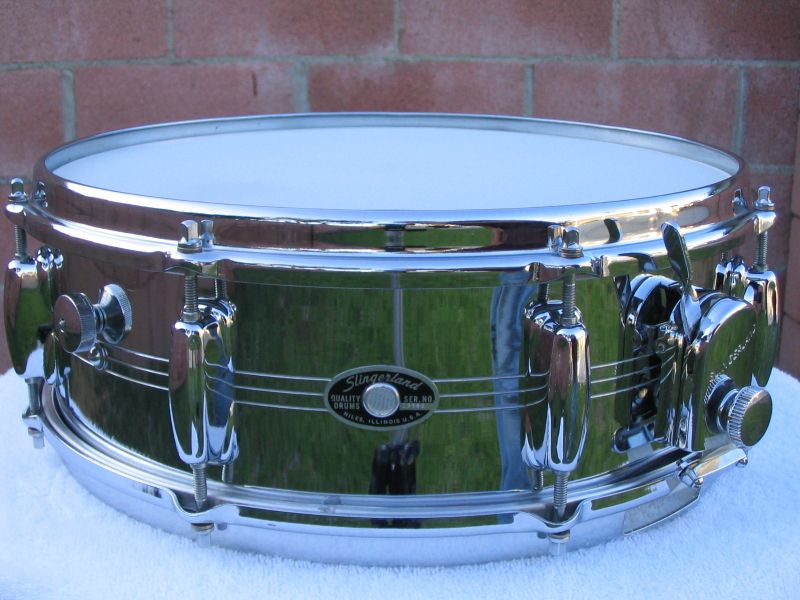

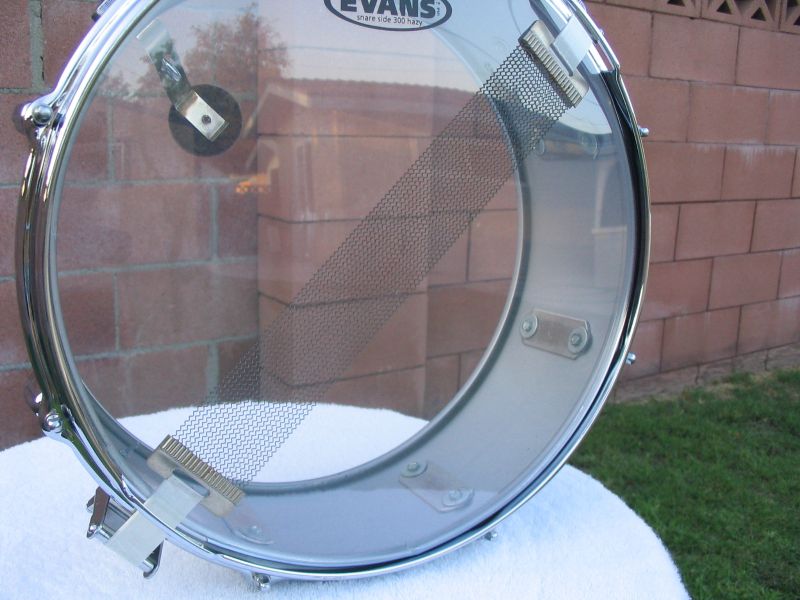

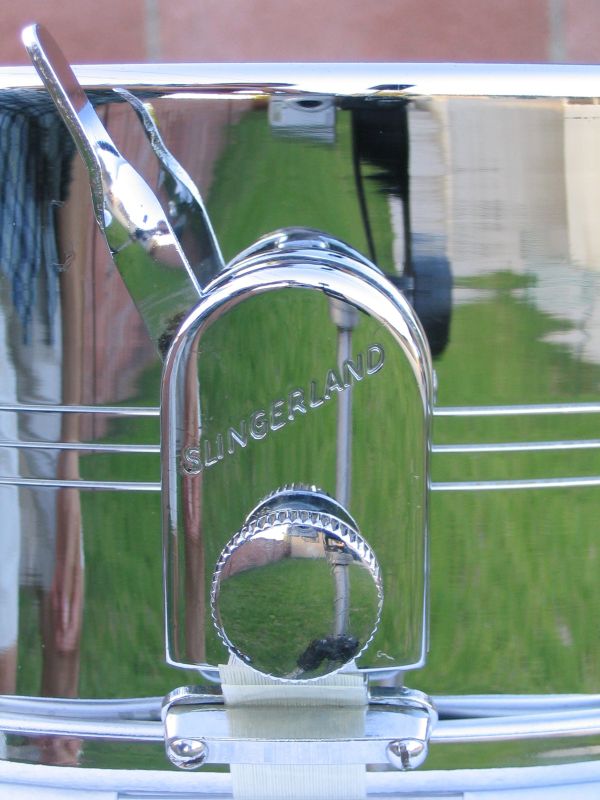

Here's one of my early 70's COB Sound King snare drum with the newer Zoomatic. It is using original Slingerland wires with filament tape strips.
-Mark
Thanks! I like the idea of the half extended wires. I did some experimenting and if it is not right, you can lose contact with the head which totally defeats the purpose.
