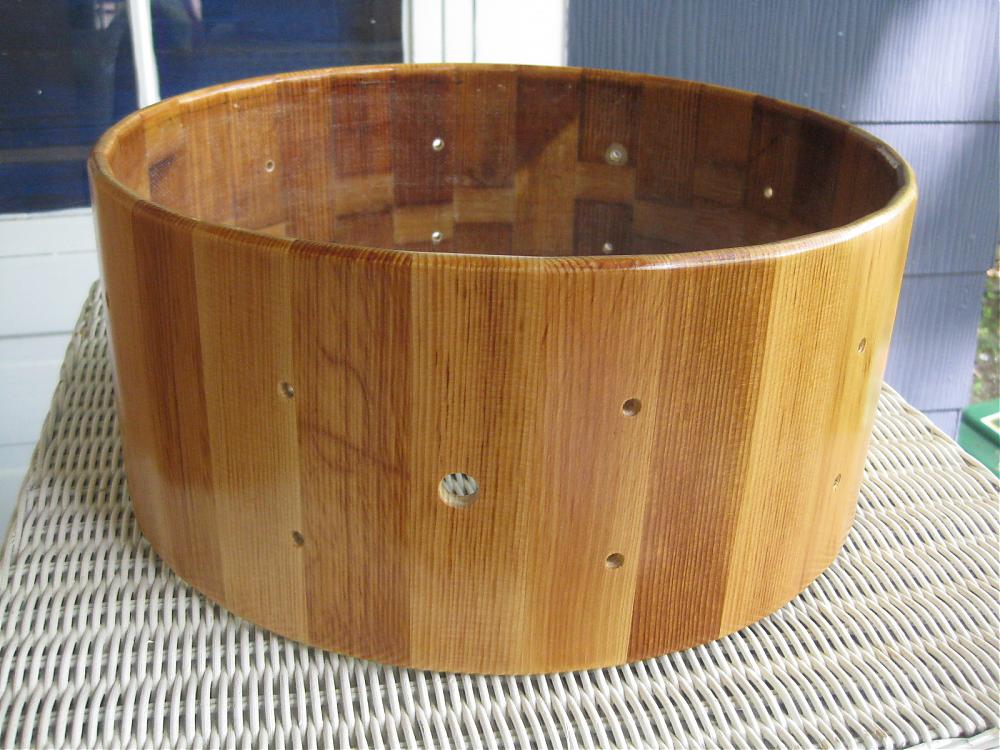

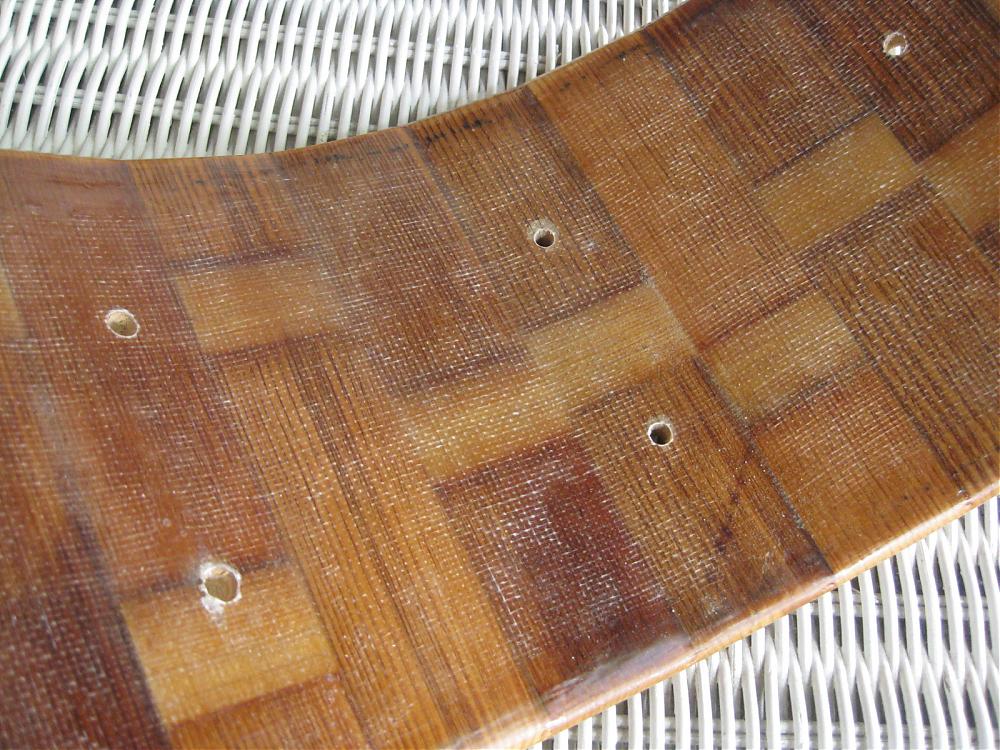

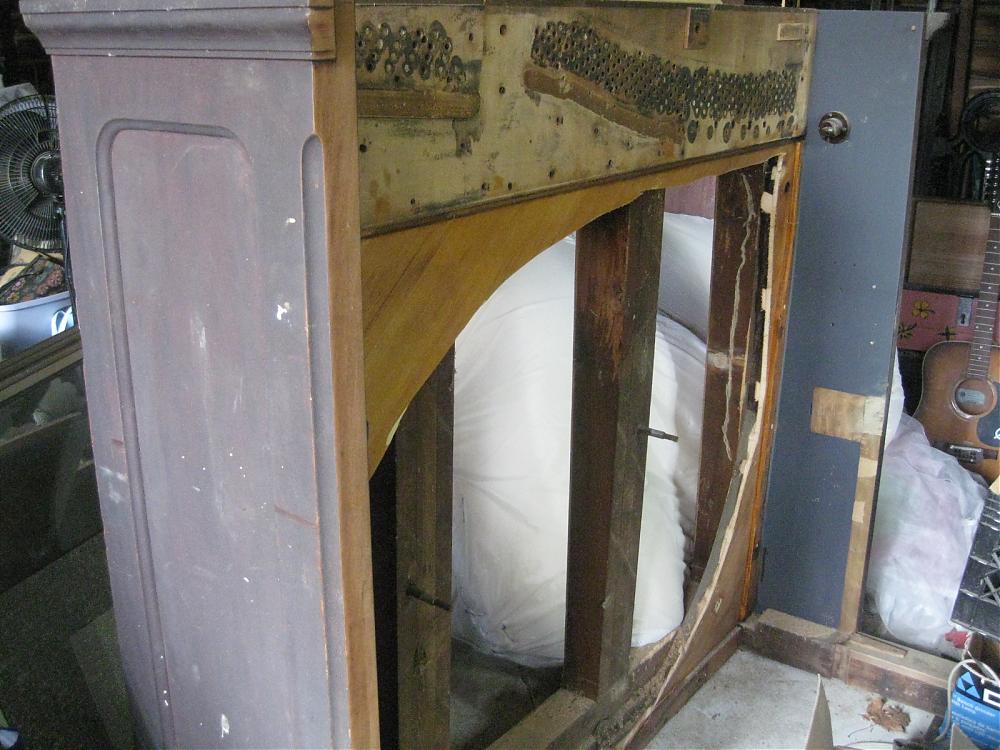

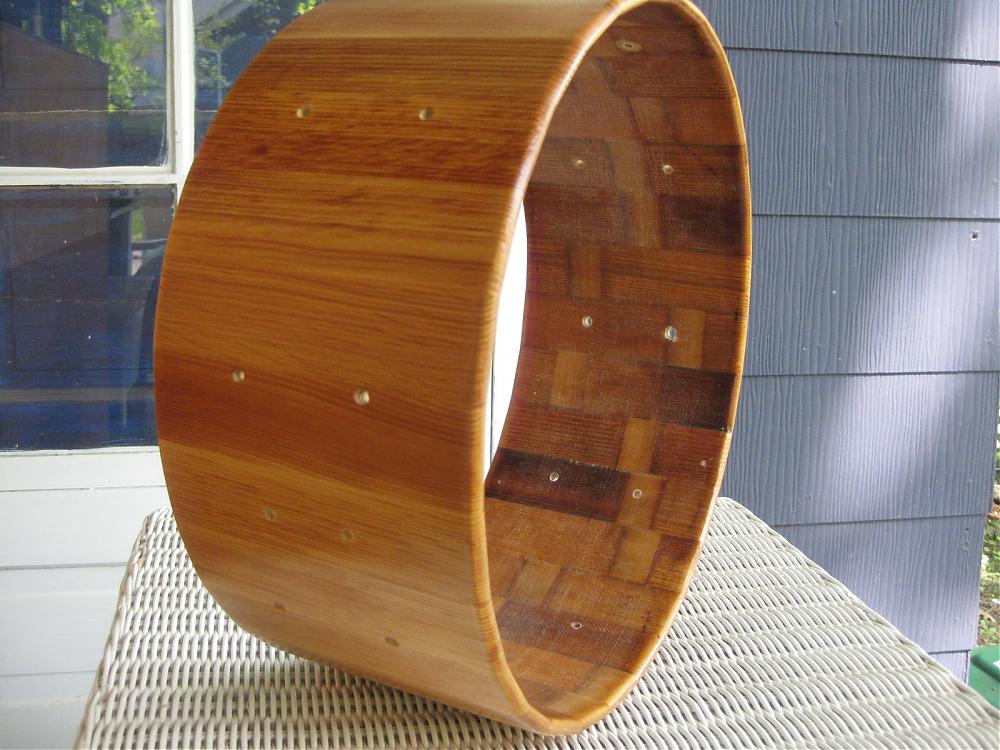

A few years ago I aquired an old upright Sohmer Piano thinking I would restore it and restring it. The price for all the materials quickly got out of hand so that dream was never realized. However, I did manage to get a fabulous education about pianos. Recently, I decided to cut out the spruce soundboard from the back of the piano before it goes out to the curb and to use this vintage wood to cut staves for a 6 X 14 snare drum. The way I figure it, thie piano is dated with a patent date of 1890 and was built in about 1903. The spruce used for the soundboard could easily have been a hundred years old when it was built and this week when my new parts arrive, this drum will be starting out life with some serious mojo. This snare shell could be over two hundred years old in biological time, and over a hundred and ten years old in terms of it's history as a musical instrument. The spruce is very soft, so I tried my hand at building a composite drum by adding a layer of fiberglass cloth to the inside only with polyester resin. The outside has 6 coats of tung oil.

I'll post some more pictures when it's assembled and ready for audition.

4 attachments
Posted on 13 years ago
#1
Posts: 6288 Threads: 375
Loading...

That, to me, is a wonderful example of the re-purposing of resources.

Hat's Off !!!

Clapping Happy2

Kevin
Posted on 13 years ago
#2
Loading...

Way cool. I cant wait to see the finished product.

Bobby Myers
Legacy Drum Shop - For Drummers By Drummers
www.legacydrumshop.com
https://www.facebook.com/LegacyDrumShop
Posted on 13 years ago
#3
Posts: 5295 Threads: 226
Loading...

As Kevins said...Kudos!!

Cheers

1976 Ludwig Mach 4 Thermogloss 26-18-14-14sn
1978 Ludwig Stainless 22-22-18-16-14-13-12 c/w 6-8-10-12-13-14-15-16-18-20-22-24 concert toms
1975 Sonor Phonic Centennials Metallic Pewter 22-16-13-12-14sn (D506)
1971 Ludwig Classic Bowling Ball OBP 22-16-14-13
1960's Stewart Peacock Pearl 20-16-12-14sn
1980`s Ludwig Coliseum Piano Black 8x14 snare
1973 Rogers Superten 5x14 & 6.5x14 COS snares
1970`s John Grey Capri Aquamarine Sparkle 5x14 snare
1941 Ludwig & Ludwig Super 8x14 snare
Posted on 13 years ago
#4
Posts: 5356 Threads: 87
Loading...

Very cool it looks fantastic! Nice job building the shell. I hope to try the same thing one day.

Glenn.

Not a guru just havin fun with some old dusty drums.
Posted on 13 years ago
#5
Posts: 6170 Threads: 255
Loading...

that.....is impressive! what a great idea. youve done on heck of a job with it too. thats a great way to reincarnate something musical!

mike

Posted on 13 years ago
#6
Loading...

That's red spruce, the exact same wood that Martin guitars used for the sound boards of their famous dreadnaught guitars. That drum has the potential to sound really resonant and great. If there is any way you could post a sound file of it after it's assembled, I'd love to hear what it sounds like.

John

Too many great drums to list here!

http://www.walbergandauge.com/VintageVenue.htm
Posted on 13 years ago
#7
Loading...

That is very cool! Cool1 I bet that thing is gonna sound amazing!

I'm no guru, just a vintage drum junkie!

Psalm 150:5
1945 Slingerland RK sparkling gold pearl 26/13/14/16/early 50s 5.5x14 Krupa RK
1967 Slingerland green glass glitter 20/12/14/Hollywood Ace
60s Slingerland 24/13/16/7x14 project
24/13/16/7x14 project RKs
60s 5 & 6.5 Sound Kings
1942 7x14 WMP Krupa RK
1930s Slingerland Universal
1967 Ludwig Hollywood sparkling blue pearl 22/12/13/16
1967 Ludwig Supraphonic 400 & 402
1965 Ludwig Jazz Fest sparkling blue pearl
1923 Ludwig 5x14 NOB
Posted on 13 years ago
#8
Loading...

[QUOTE=kevins;186622]That, to me, is a wonderful example of the re-purposing of resources.

Hat's Off !!!

Ditto what Kevins said...and, really well done too!

Posted on 13 years ago
#9
Posts: 6524 Threads: 37
Loading...

See this drum,...It used to be a piano !! It went from string to precussion !!

Like Kevins says, Hats off to ya !!

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 13 years ago
