Tip to straighten bent T-rods

Loading...

I'm sure there are better ways than this, but this is what I have come up with from what I had laying around.

Take a block of wood and drill several holes at progressively deeper depths from 1" to 4" deep. Check your T-rods by holding a T and claw vertically in one hand and spin the T and watch for any wobble. If you find a bent one, insert the T in a hole just deep enough to where the bend is just at the top surface of the wood. You can usually then just bend the T back straight by hand if the bend is not further than halfway up the rod. If

the bend is closer up by the T section of the rod you may have to use a rubber mallet to tap it back straight.

What do you guys like to use for this?

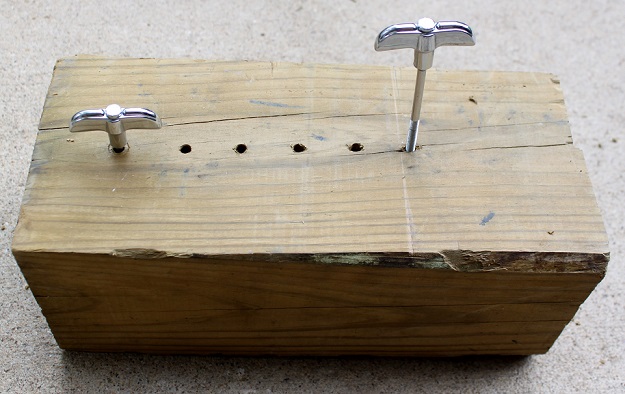

Here is mine

1 attachments
Posted on 10 years ago
#1
Loading...

Sweet! Good tip. I've been suffering with several that are bent, all the way up at the T on all of them.

'56 Slingerland Krupa Set - Sparkling Gold Pearl
60's WFL Orphans Club Date - Black/Gold Duco (20/13/15)
Posted on 10 years ago
#2
Posts: 5295 Threads: 226
Loading...

I think that`s a great idea, Randy!! The wood is soft enough to prevent any thread, chrome, nickel, etc. damage...Good thinkin`!!

Cheers

1976 Ludwig Mach 4 Thermogloss 26-18-14-14sn
1978 Ludwig Stainless 22-22-18-16-14-13-12 c/w 6-8-10-12-13-14-15-16-18-20-22-24 concert toms
1975 Sonor Phonic Centennials Metallic Pewter 22-16-13-12-14sn (D506)
1971 Ludwig Classic Bowling Ball OBP 22-16-14-13
1960's Stewart Peacock Pearl 20-16-12-14sn
1980`s Ludwig Coliseum Piano Black 8x14 snare
1973 Rogers Superten 5x14 & 6.5x14 COS snares
1970`s John Grey Capri Aquamarine Sparkle 5x14 snare
1941 Ludwig & Ludwig Super 8x14 snare
Posted on 10 years ago
#3
Loading...

Thanks guys, it does work pretty well! I hope someone else can use the idea.

Posted on 10 years ago
#4
Loading...

Everybody else is going to use the idea. It's smart and it works.

John

Too many great drums to list here!

http://www.walbergandauge.com/VintageVenue.htm
Posted on 10 years ago
#5
Loading...

Great idea, Thanks!

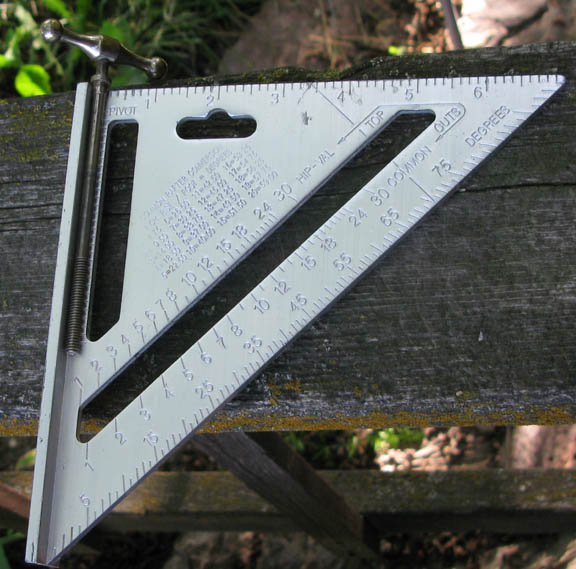

Here is what I use to check for true.

Creighton

1 attachments
Nothing special here but I like them.
Posted on 10 years ago
#6
Loading...

Ah, a speed square, that would work well. I'll have to try that as well.

Thanks Creighton! I like that tension rod. What is that off of?

Posted on 10 years ago
#7
Loading...

That is a Slingerland rod.

Creighton

Nothing special here but I like them.
Posted on 10 years ago
#8
Loading...

Randy,

Great tip! Thanks. Beats my two pieces of wood holding the rod in place in my vice.

While we're on the topic of straightening rods... Anyone ever try heating up the rod before straightening it out? I'm curious if this would avoid possibilities of cracking, but I didn't want to experiment with it myself.

Mike

-No Guru... still learning more every day-
Posted on 10 years ago
#9
Loading...

I've never tried heating before. Are you thinking a small torch or oven?I wonder if you may have to worry about causing damage to the finish such as bluing from the heat.

Posted on 10 years ago
#10
