Repairing a dent in a drum

Posts: 2237 Threads: 272

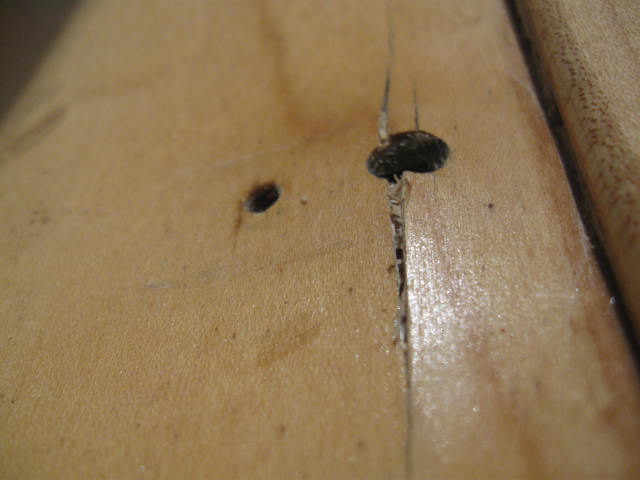

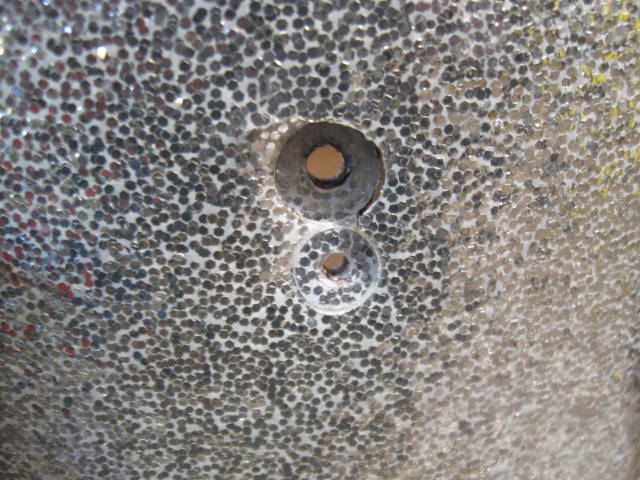

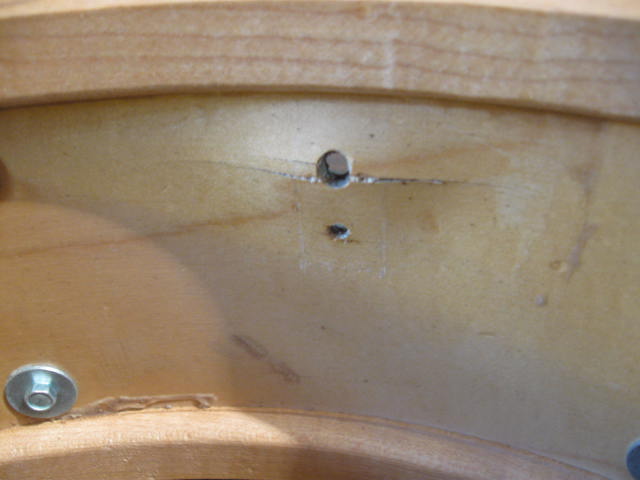

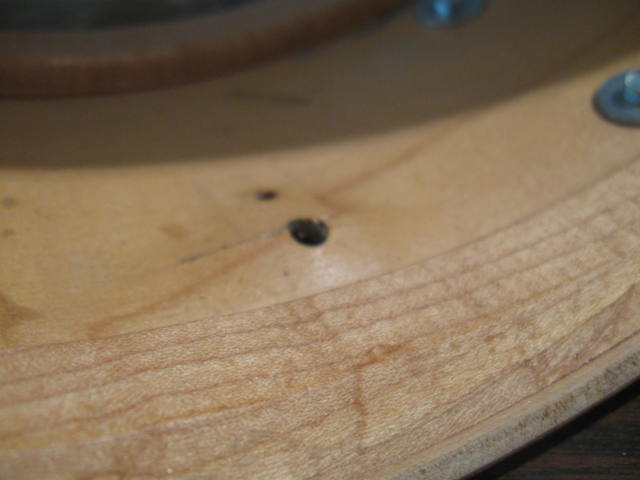

I have a 1967 ludwig super classid silver sparkle snare I purchased at a pawn shop last week. It had 2 extra holoes and a dent. Looks like it must have been dropped and landed on the muffler knob, therefore knocking a dent in the wrap and shell. I am in the process of repairing this. I have done this before on a black panther floor tom and it turned out perfect. I hope this one does the same. Here are some pics of the process. 1st pic inside shell an outtie, second pic outside shell, an innie. I put a small s

1960's SONOR 12-16-20-14 blue slate pearl
1968 LUDWIG 12-13-16-22-14Sky blue P
1972 LUDWIG 12-13-16-22-14BlueVistalite
1972 LUDWIG 12-13-16-22-(14 impostor)BlackPanther "SOLD"
1964 Ludwig Oyster Black Pearl 22-12-13-16-14Supra "SOLD"
1969 LUDWIG 12-13-16-22-14 Citrus Mod "SOLD"
1969 LUDWIG Sexto-Plus 8-1 0-12-13-14-15-16-20-20-14 Silver Sparkle
60's Majestic Delux 12-13-16-22-14 red pearl
2009 Homemade Kids 8-10-13-16-12 Orange Sparkle
24 kits, 80 Snares, 65 Cymbals
Don't tell my wife!
Posted on 12 years ago
#1
Posts: 2237 Threads: 272

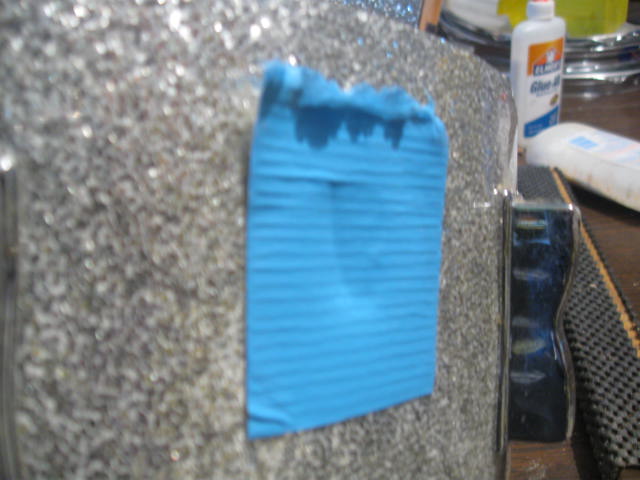

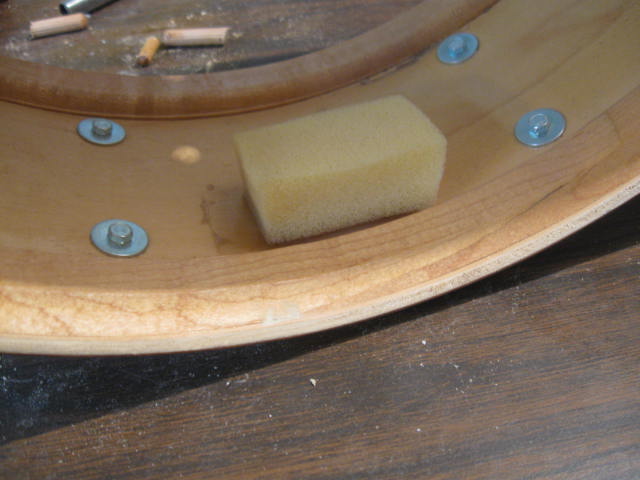

To begin this process I got me a small sponge and soaked the damaged area for a few hours. I put a piece of tape on the outside to keep the moister in the shell. I did this to soften the wood so It will be much more pliable when I clamp it.

2 attachments
47.4 kB
51.1 kB
1960's SONOR 12-16-20-14 blue slate pearl
1968 LUDWIG 12-13-16-22-14Sky blue P
1972 LUDWIG 12-13-16-22-14BlueVistalite
1972 LUDWIG 12-13-16-22-(14 impostor)BlackPanther "SOLD"
1964 Ludwig Oyster Black Pearl 22-12-13-16-14Supra "SOLD"
1969 LUDWIG 12-13-16-22-14 Citrus Mod "SOLD"
1969 LUDWIG Sexto-Plus 8-1 0-12-13-14-15-16-20-20-14 Silver Sparkle
60's Majestic Delux 12-13-16-22-14 red pearl
2009 Homemade Kids 8-10-13-16-12 Orange Sparkle
24 kits, 80 Snares, 65 Cymbals
Don't tell my wife!
Posted on 12 years ago
#2
Posts: 2237 Threads: 272

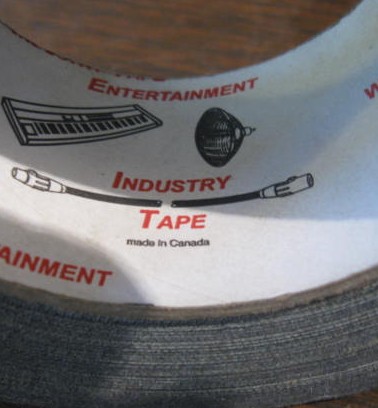

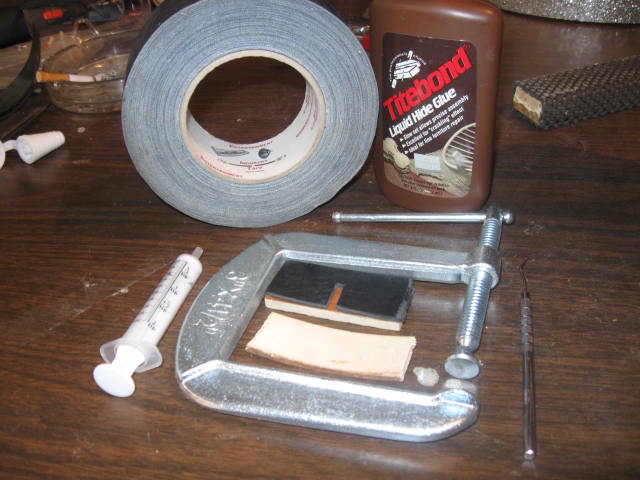

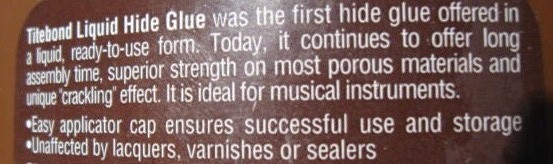

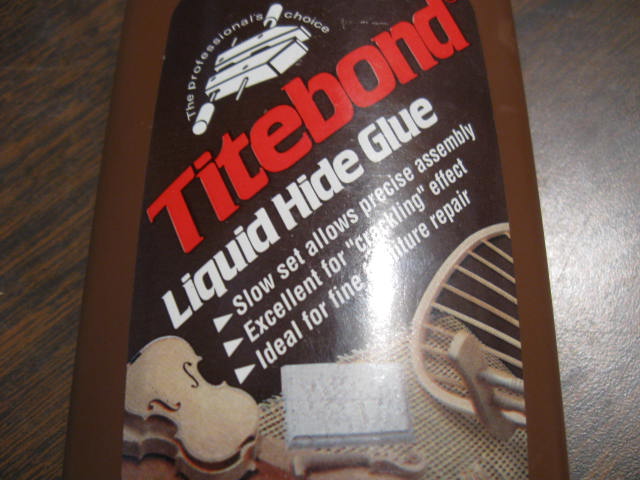

In the meantime I rounded up what Im going to need to do this. I got my roll of entertainment industry tape out. My titebond wood glue was all dried up so I went to the store to get some more. At the store I found this Titebond Hide Glue. I was intregued and got some as well as regular wood glue. The hide glue said "excellent for misical instrument repairs". A long reach C-Clamp, A Syringe, a lil hook tool, a small piece of a 14" shell and a small piece of wood with heavy rubber glued to one side of it. The rubber side has a groove cut in it. This groove is for the excess glue to run out, otherwise the excess glue might get all over the inside of the shell.

1960's SONOR 12-16-20-14 blue slate pearl
1968 LUDWIG 12-13-16-22-14Sky blue P
1972 LUDWIG 12-13-16-22-14BlueVistalite
1972 LUDWIG 12-13-16-22-(14 impostor)BlackPanther "SOLD"
1964 Ludwig Oyster Black Pearl 22-12-13-16-14Supra "SOLD"
1969 LUDWIG 12-13-16-22-14 Citrus Mod "SOLD"
1969 LUDWIG Sexto-Plus 8-1 0-12-13-14-15-16-20-20-14 Silver Sparkle
60's Majestic Delux 12-13-16-22-14 red pearl
2009 Homemade Kids 8-10-13-16-12 Orange Sparkle
24 kits, 80 Snares, 65 Cymbals
Don't tell my wife!
Posted on 12 years ago
#3
Posts: 2237 Threads: 272

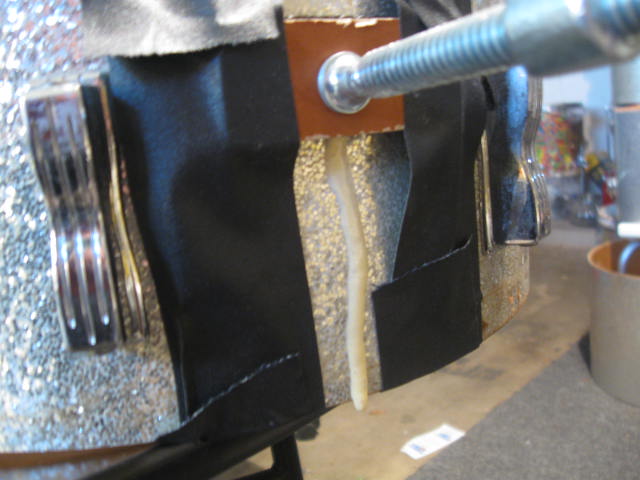

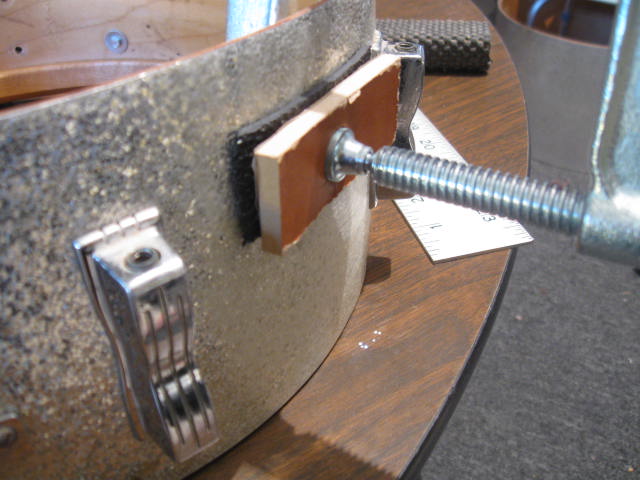

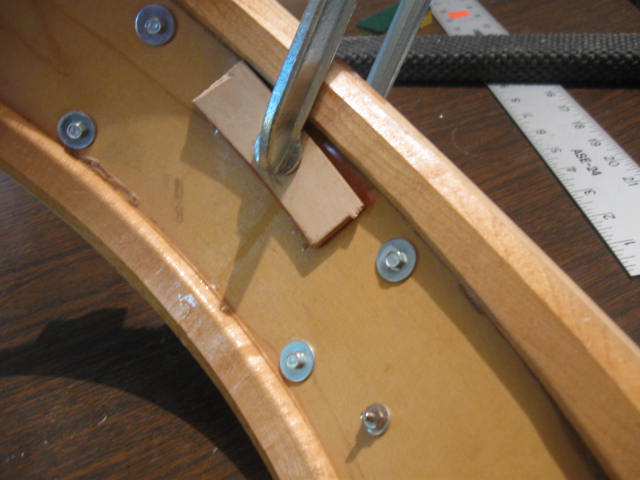

I didnt take pics of squirting the glue. The Hide glue was extremly thin so I just used the regular wood glue that I am familier with. I had the outside of the shell taped and squirted the glue into the holes of the muffler and muffler screw. Got my tiny hook tool and hooked the glue all under the repair area. I got a piece of wax paper under the curved shell piece and taped it over the repair area. Removed the tape covering the outside hole, Then taped the other piece of wood with the rubber, with groove on the outside of the shell. Got me clamp and clamped down on it. All the excess glue ran right out of the little groove I cut in the protective rubber.

Now I sit and wait till morning and see how it turned out!!!

3 attachments
53.9 kB
59.2 kB
49 kB
1960's SONOR 12-16-20-14 blue slate pearl
1968 LUDWIG 12-13-16-22-14Sky blue P
1972 LUDWIG 12-13-16-22-14BlueVistalite
1972 LUDWIG 12-13-16-22-(14 impostor)BlackPanther "SOLD"
1964 Ludwig Oyster Black Pearl 22-12-13-16-14Supra "SOLD"
1969 LUDWIG 12-13-16-22-14 Citrus Mod "SOLD"
1969 LUDWIG Sexto-Plus 8-1 0-12-13-14-15-16-20-20-14 Silver Sparkle
60's Majestic Delux 12-13-16-22-14 red pearl
2009 Homemade Kids 8-10-13-16-12 Orange Sparkle
24 kits, 80 Snares, 65 Cymbals
Don't tell my wife!
Posted on 12 years ago
#4
Posts: 5356 Threads: 87

Very nice repair. You've been really busy! ;)

Glenn.

Not a guru just havin fun with some old dusty drums.
Posted on 12 years ago
#5
Posts: 2237 Threads: 272

Truth is, I have this 9 piece silver sparkle 1969 Ludwig kit I am planning on restoring the interiors of the shells that have been painted and some painted twice. I am actually stalling to keep from doing this monumental task. I just got the silver sparkle snare and decided to fix it. I already had another one so I decided to fix it also.

1960's SONOR 12-16-20-14 blue slate pearl
1968 LUDWIG 12-13-16-22-14Sky blue P
1972 LUDWIG 12-13-16-22-14BlueVistalite
1972 LUDWIG 12-13-16-22-(14 impostor)BlackPanther "SOLD"
1964 Ludwig Oyster Black Pearl 22-12-13-16-14Supra "SOLD"
1969 LUDWIG 12-13-16-22-14 Citrus Mod "SOLD"
1969 LUDWIG Sexto-Plus 8-1 0-12-13-14-15-16-20-20-14 Silver Sparkle
60's Majestic Delux 12-13-16-22-14 red pearl
2009 Homemade Kids 8-10-13-16-12 Orange Sparkle
24 kits, 80 Snares, 65 Cymbals
Don't tell my wife!
Posted on 12 years ago
#6
Posts: 2237 Threads: 272

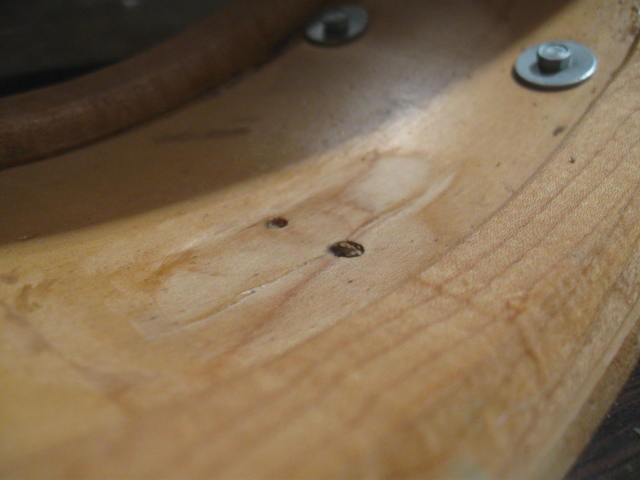

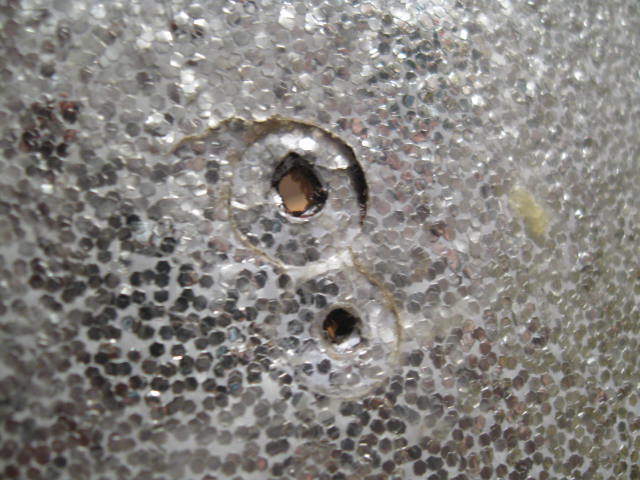

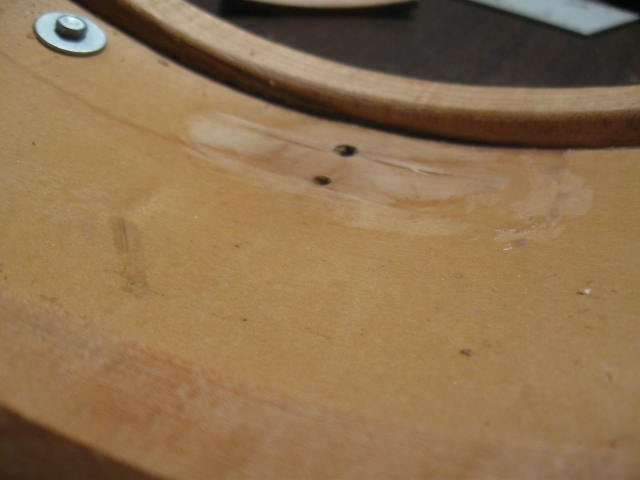

OK, its done. It turned out great!

3 attachments
34.6 kB
33.4 kB
72 kB
1960's SONOR 12-16-20-14 blue slate pearl
1968 LUDWIG 12-13-16-22-14Sky blue P
1972 LUDWIG 12-13-16-22-14BlueVistalite
1972 LUDWIG 12-13-16-22-(14 impostor)BlackPanther "SOLD"
1964 Ludwig Oyster Black Pearl 22-12-13-16-14Supra "SOLD"
1969 LUDWIG 12-13-16-22-14 Citrus Mod "SOLD"
1969 LUDWIG Sexto-Plus 8-1 0-12-13-14-15-16-20-20-14 Silver Sparkle
60's Majestic Delux 12-13-16-22-14 red pearl
2009 Homemade Kids 8-10-13-16-12 Orange Sparkle
24 kits, 80 Snares, 65 Cymbals
Don't tell my wife!
Posted on 12 years ago
#7
Posts: 1132 Threads: 43

Well done!

I'm no guru, just a vintage drum junkie!

Psalm 150:5
1945 Slingerland RK sparkling gold pearl 26/13/14/16/early 50s 5.5x14 Krupa RK
1967 Slingerland green glass glitter 20/12/14/Hollywood Ace
60s Slingerland 24/13/16/7x14 project
24/13/16/7x14 project RKs
60s 5 & 6.5 Sound Kings
1942 7x14 WMP Krupa RK
1930s Slingerland Universal
1967 Ludwig Hollywood sparkling blue pearl 22/12/13/16
1967 Ludwig Supraphonic 400 & 402
1965 Ludwig Jazz Fest sparkling blue pearl
1923 Ludwig 5x14 NOB
Posted on 12 years ago
#8
Posts: 280 Threads: 34

Wow, that looks incredible

Posted on 12 years ago
#9
Posts: 812 Threads: 53

Nice job and good tutorial...thanks!
