Ludwig Atlas Cymbal Tilter

Posts: 1685 Threads: 529

Greetings,

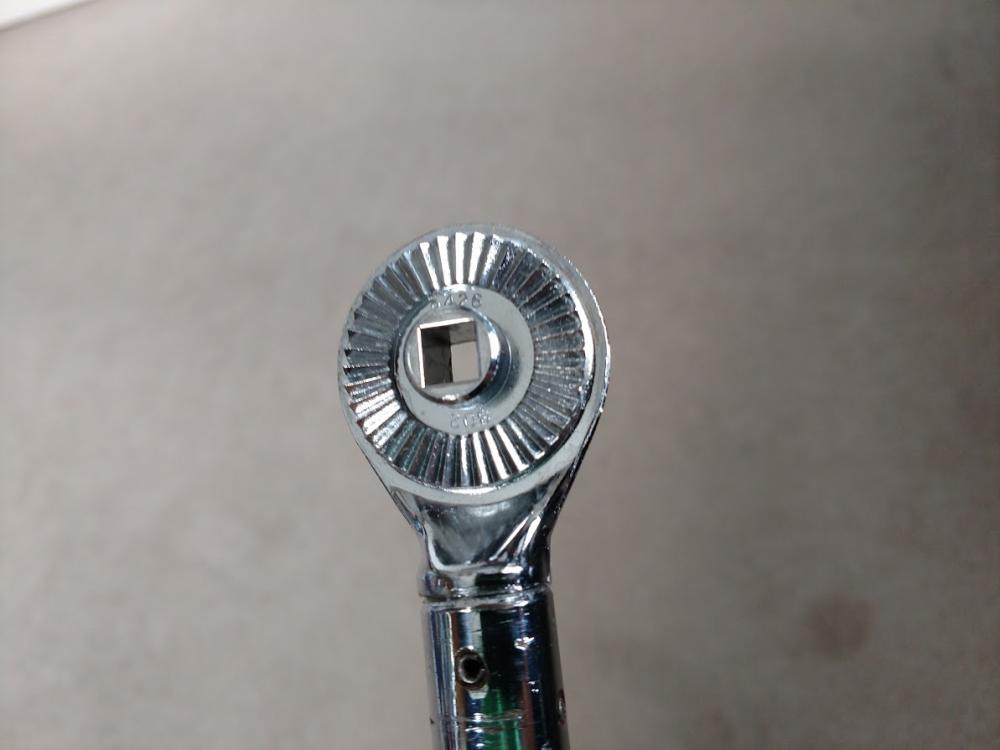

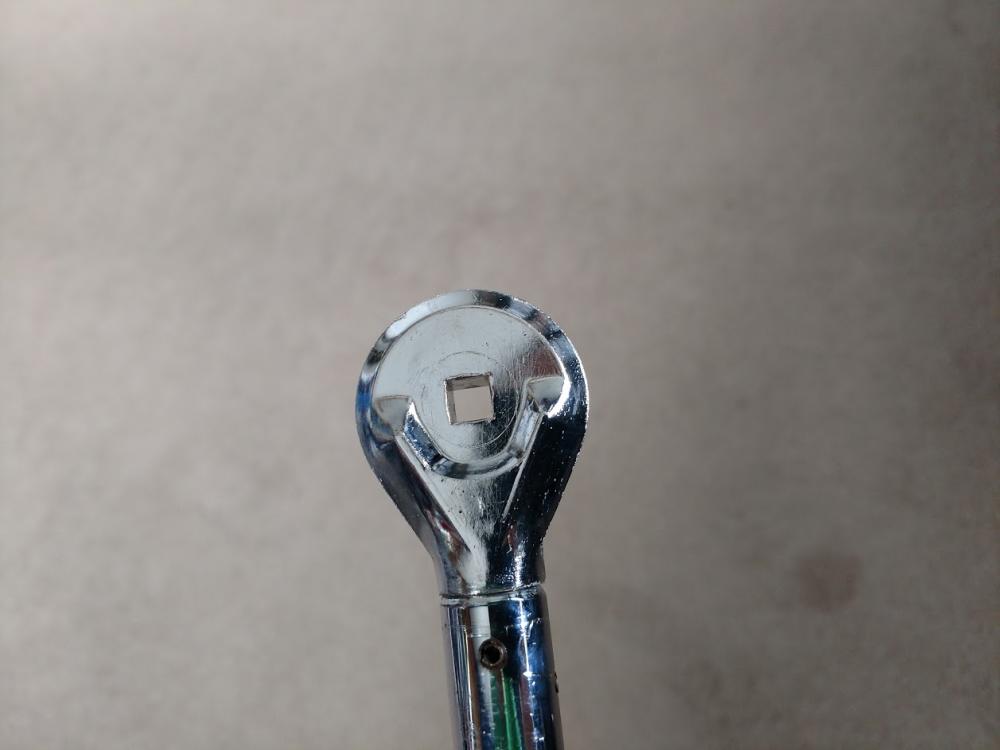

Looking for the tilter piece for 70's Atlas cymbal stands. Just the tilter piece with the threading/cymbal post that fits the part pictured below. The diameter of the round, geared section is 1-7/16".

Thanks,

V

2 attachments
Atlas 1.jpg
36.8 kB
Atlas 2.jpg
40.5 kB
Posted on 6 years ago
#1
Posts: 1867 Threads: 179

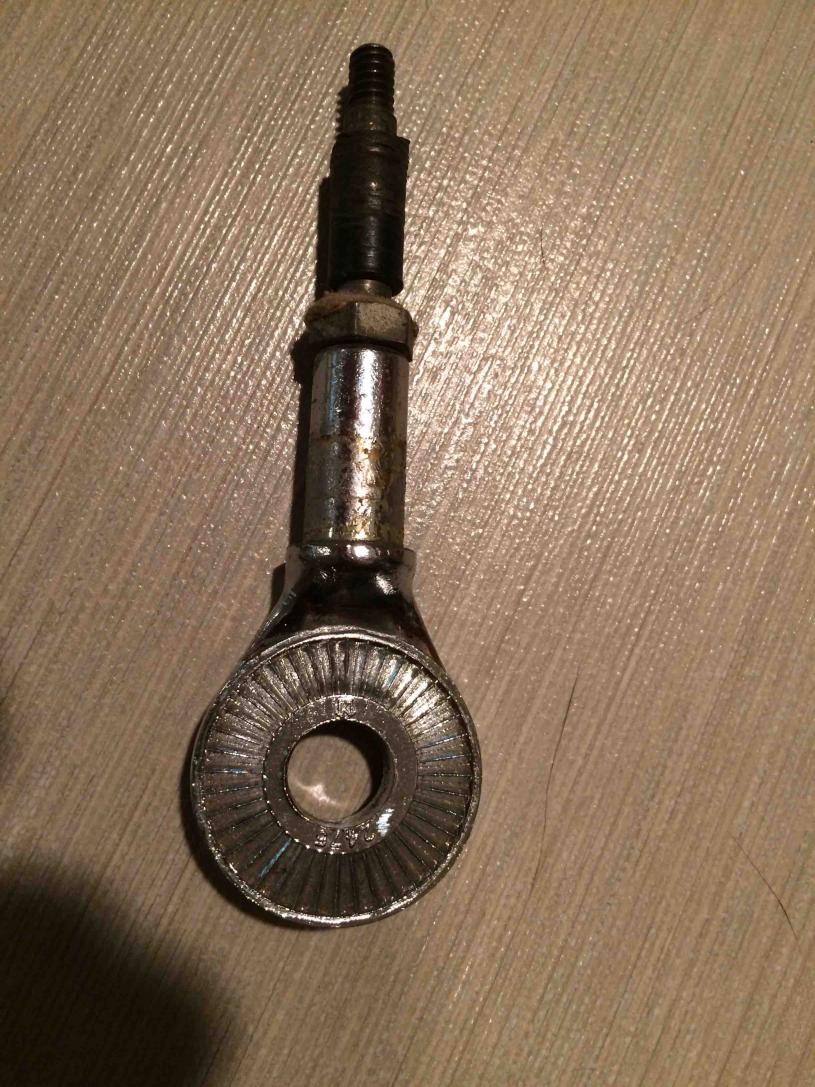

Is this what you are looking for?

Looks like the numbers inside read: 2475

2 attachments
Ludwig Tilter.jpg
155.4 kB
Ludwig Tilter 1.jpg
153.7 kB
BLAEMIRE DRUMS
Thanks to Mr. Jerry Jenkins
Posted on 6 years ago
#2
Posts: 1685 Threads: 529

Yes, ggd, that looks like it.

Could you measure the diameter of the "circle". If it's 1-7/16", it will match what I have.

Thanks.

Posted on 6 years ago
#3
Posts: 1867 Threads: 179

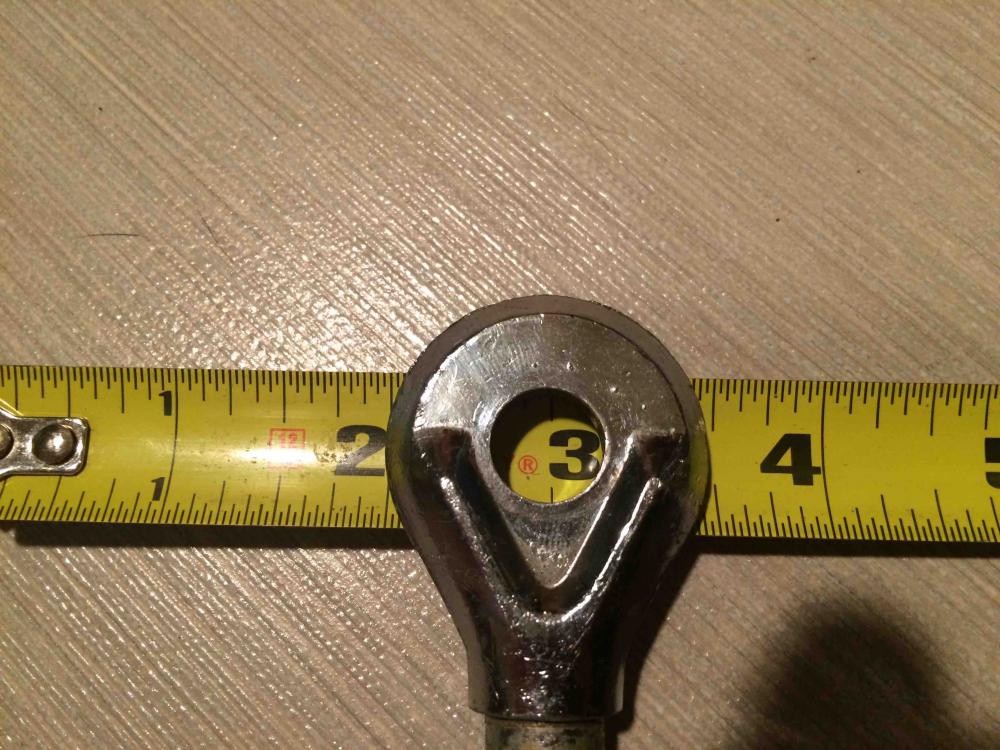

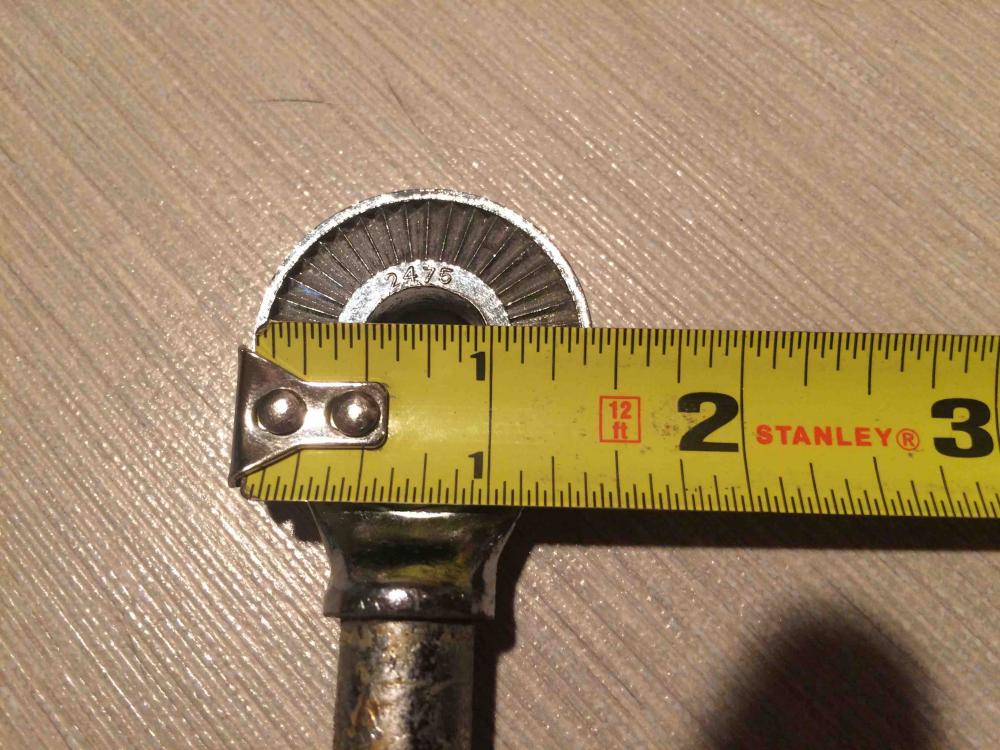

Looks like OD of the disk is 1 7/16 minus a 64th.

The hole is over 3/8". Like 1/2" minus a 32nd.

Guys, I decided to keep this part.

Sorry, I think I may need it.

Thanks

2 attachments
Tilter Tape.jpg
123.2 kB
Tilter Tape 1.jpg
119.1 kB
BLAEMIRE DRUMS
Thanks to Mr. Jerry Jenkins
Posted on 6 years ago
#4
Posts: 1685 Threads: 529

Still looking for one or two of these. Thanks.
