Latest find

Posts: 102 Threads: 20
Loading...

Last night I picked up an early 70's bronze strata Standard. The good news is its a one owner kit with very little fade on the wrap, its barely noticeable even with the lugs off. The guy I got from said it it was his when he was a kid and he thinks he got it around 1970 brand new. No date stamps but there is evidence of paper tags that are now long gone. Serial number on the FT is 54443. No snare but the kit is mostly intact. There is some unoriginal T handles and claws, and one of the tone controls is missing a knob but everything else is pretty much there. He even kept the bottom hoops and tension screws after he pulled the bottom heads off.

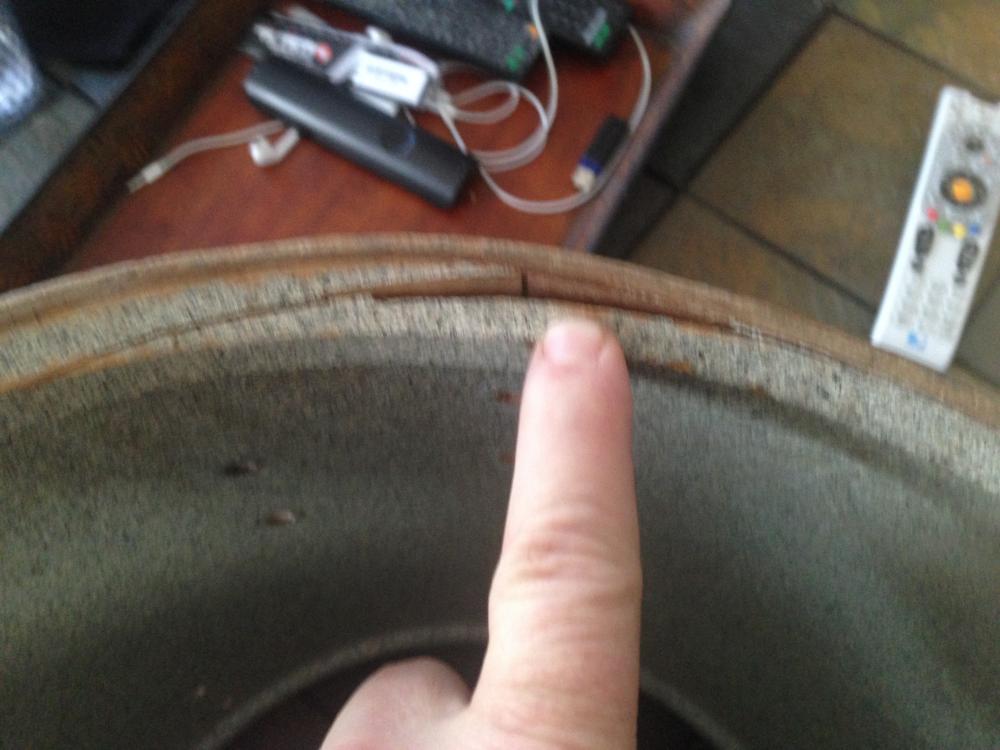

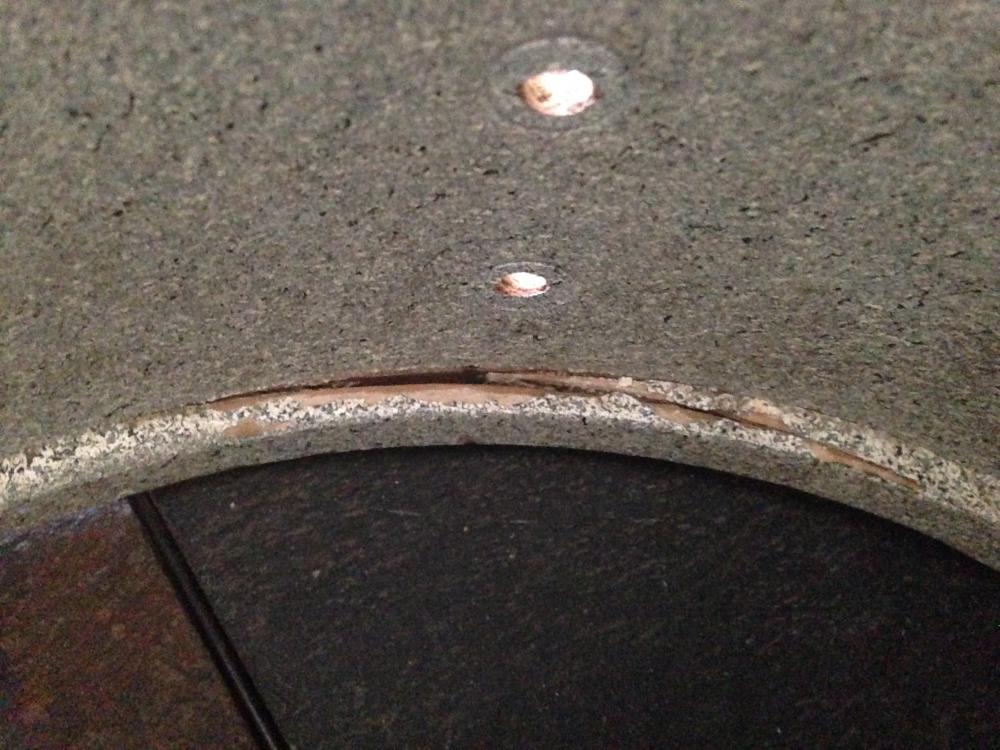

Now here is the bad news, there is some pretty serious separation of the reso side re ring on the floor tom. I knew about it and at first glance it looked like an easy fix. I figured throw a little glue on, clamp it and bobs your uncle, but I now I'm not so sure. When I got it home and really started looking at I noticed there is more to it than I thought. Even with a nice tight clamp I'm not sure there is enough meat on that re ring to hold to the outer plays. What do you guys think??

2 attachments
Posted on 8 years ago
#1
Posts: 5295 Threads: 226
Loading...

I think it will be fine gluing it...Use toothpicks as wedges to hold everything open if you know what I mean...Mask surrounding areas off...Apply liberal wood glue, clamp, wipe off excess glue and let sit for 24-48 hrs...

Cheers

1976 Ludwig Mach 4 Thermogloss 26-18-14-14sn
1978 Ludwig Stainless 22-22-18-16-14-13-12 c/w 6-8-10-12-13-14-15-16-18-20-22-24 concert toms
1975 Sonor Phonic Centennials Metallic Pewter 22-16-13-12-14sn (D506)
1971 Ludwig Classic Bowling Ball OBP 22-16-14-13
1960's Stewart Peacock Pearl 20-16-12-14sn
1980`s Ludwig Coliseum Piano Black 8x14 snare
1973 Rogers Superten 5x14 & 6.5x14 COS snares
1970`s John Grey Capri Aquamarine Sparkle 5x14 snare
1941 Ludwig & Ludwig Super 8x14 snare
Posted on 8 years ago
#2
Loading...

I agree-a good quality wood glue will hold that closed. It's a floor tom,not usually under high tension and being held together with a head and rim.

Posted on 8 years ago
#3
Posts: 102 Threads: 20
Loading...

Thanks guys

Posted on 8 years ago
#4
Posts: 2264 Threads: 83
Loading...

Photos of the kit please! Don't tease us :)

The greatest gift you can give your family and the world is a healthy you. - Joyce Meyer
Posted on 8 years ago
#5
Posts: 3467 Threads: 116
Loading...

I'd make sure that the shell stays in round before you start the clamping process.. Rest a rim on the lugs and use some wedges all the way around between the shell and the rim (to check and maintain the roundness) ... then do the glue and clamp..

Cheers

John

'77 Slingerland 51N,Super Rock 24,18,14,13.. COW 8,10 Concert toms
'69 Slingerland Hollywood Ace
'75 Rogers Dynasonic 6.5 x 14, 10 lug COB
'77-78 Slingerland 6.5 x 14, 10 lug COB
'78-79 Slingerland 5 1/4 x14 8 lug COB
'79 Biman 5 1/4, Acrolite
'82 Slingerland 5 1/4 x 14. Festival COS
'84 Tama MasterCraft Superstar 6.5 x 14, 10 lug Rosewood
'98 Slingerland (Music YO) 6" 10 Lug Maple.. NOS
Zildjian, Sabian , UFIP & Paiste mix.
Posted on 8 years ago
#6
Posts: 102 Threads: 20
Loading...

From larryz

Photos of the kit please! Don't tease us :)

I've tried, the file uploader is not cooperating. I'll upload elsewhere and post a link when I get a chance.
