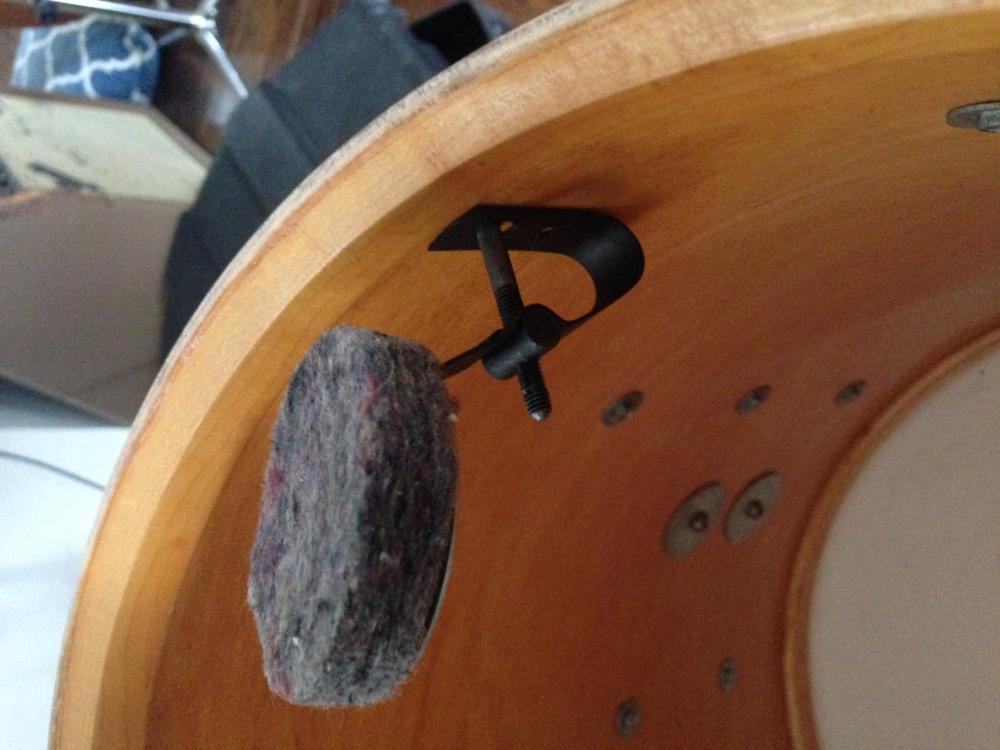

I have to remove the tone control device so it stops rattling inside the floor tom. I unscrewed it, but the muffler still will not come off. What am I not doing?
Only Admins can see this message.
Data Transition still in progress. Some functionality may be limited until the process is complete.
70's Ludwig Floor Tom Muffler Removal
Posts: 2
Threads: 1
Loading...
Posted on 8 years ago
#1
Posts: 6432
Threads: 290
Loading...
Well there is the small bolt holding the muffler, then that barrel nut need to come off the end of the adjustment rod, thats it. If you remove both of those and it still intact then tap it with your screw driver, it might be stuck to the finish.
Thank you!
Jeff C
"Enjoy every sandwich" Warren Zevon
Posted on 8 years ago
#2
Posts: 2
Threads: 1
Loading...
The barrel nut just will not budge.
Posted on 8 years ago
#3
Posts: 6432
Threads: 290
Loading...
What looks like someone might have painted it back at some point in the paint is keeping the barrel nut from coming off. You might have to get a little bit of lacquer thinner or paint stripper or something to clean the threads of the bolt off
Thank you!
Jeff C
"Enjoy every sandwich" Warren Zevon
Posted on 8 years ago
#4
Posts: 1651
Threads: 215
Loading...
Nail polish remover should work too if you have some sitting around.
18 Kits & 40+ snares..
Not a Guru, just addicted to drums
- Jay
Not a Guru, just addicted to drums
- Jay
Posted on 8 years ago
#5
Posts: 114
Threads: 9
Loading...
Did it unscrew all the way to the end, and then refuse to come off? I got 3 orphan toms from 3 different places, '67-'71and all 3 were a bear to get off the last 1/4" or so. I was thinking Ludwig deliberately messed the threads up so it wouldn't vibrate off or something, but all 3 were that way. Really bizarre coincidence?
65-73 Ludwig orphans 22/16/15/13/12 (silver sparkle rewrap)
1967 Ludwig Supraphonic 5 x 14
1976 Ludwig Acrolite 5 x 14
1966 Ludwig Pioneer 5 x 14
66-'67-ish Slingerland orphan project 20/13 (original champagne sparkling pearl)
Mid-60's Slingerland Gene Krupa COB Sound King 5 x 14
Mid-50's Slingerland tenor-to-floor tom resto/conversion project
Early 50's Slingerland Marcher resto project
Pork Pie 6.5 x 14 Big Black
Zildjians
1967 Ludwig Supraphonic 5 x 14
1976 Ludwig Acrolite 5 x 14
1966 Ludwig Pioneer 5 x 14
66-'67-ish Slingerland orphan project 20/13 (original champagne sparkling pearl)
Mid-60's Slingerland Gene Krupa COB Sound King 5 x 14
Mid-50's Slingerland tenor-to-floor tom resto/conversion project
Early 50's Slingerland Marcher resto project
Pork Pie 6.5 x 14 Big Black
Zildjians
Posted on 8 years ago
#6
Posts: 503
Threads: 29
Loading...
I recall having the same issue, there was a flat spot in the threads or something. I put a soft cloth in vice grips or pliers to hold the tone control knob and twisted off the nut with another set of pliers. It did come off & go back on ok
Posted on 8 years ago
#7
Posts: 6170
Threads: 255
Loading...
I recall having the same issue, there was a flat spot in the threads or something. I put a soft cloth in vice grips or pliers to hold the tone control knob and twisted off the nut with another set of pliers. It did come off & go back on ok
That's the way that I have done it as well. Some of them can be quite a chore.
Posted on 8 years ago
#8
Posts: 503
Threads: 29
Loading...
Yes, very stubborn, go ahead and "reef" it '67, ha. Looks like a nice floor tom/kit you've got there. Welcome to the VDF
